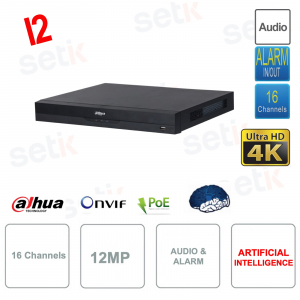

NVR 16 channels 12MP - IP PoE ONVIF® -16 PoE ports - AI - SMD Plus - HDMI 4K I2

IN PROMOTION -60%

NVR IP ONVIF PoE Professionali Dahua - NVR2216-16P-I2 - Ultra HD con Intelligenza Artificiale e 16 porte PoE. 16 Canali IP con risoluzione fino a 12MP, Video Compressione H.265+, 1 Canali di Protezione Perimetro, 1 canale di riconoscimento facciale, HDMI (4K) / VGA - Max 2xHDD SATA 10TB cad., 2 Porte USB (fronte e retro) - RS232 - RJ-45 10/100/1000 - Audio - Allarme - Versione I2

Reference: NVR2216-16P-I2

Brand: Dahua

EAN: 6923172520159

FIND INSTALLER

https://www.setik.biz/en/recording-devices/7958-dahua-nvr2216-16p-i2-nvr-16-channels-12mp-ip-poe-onvif-16-poe-ports-ai-smd-plus-hdmi-4k-i2.html

€418.70

€1,046.76 -60%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Hurry up! Only a few pieces left in our warehouse!

discover the available quantity

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

Description Product Details Data Sheet Further Details Download

NVR 16 CHANNELS IP POE ONVIF® DAHUA - 4K SERIES - ARTIFICIAL INTELLIGENCE - UP TO 12MP - HDMI - VGA - NVR2216-16P-I2

16 Channel ONVIF® PoE IP NVR - 4K AI Series - Dahua - NVR2216-16P-I2
Up to 12MP resolution - H.265 + Video Codec
HDMI output ( 4K ) - VGA - 2 USB (front and rear) - 1in / 1out RCA audio - 4in / 2out alarm - Up to 2 HDD SATA III 3.5 "10TB each.
Artificial Intelligence: Perimeter Protection, Face Recognition, Metadata, SMD Plus, Face Detection, Classic Video Analysis.

Tecnologia Intelligenza Artificiale

AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE:
Artificial intelligence (AI) refers to the branch of science and engineering that produces intelligent machines, especially intelligent computer programs. In the security sector, on the other hand, the artificial intelligence used is the one that allows the creation of advanced devices for environmental analysis.

Product details

	The Advantage of PoE technology is obvious, it allows you to power with the same cable with which you communicate without bringing additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation
	Onvif is the most important standard in the IP world. Being Onvif guarantees a wide range of compatible IP devices (DVRs / cameras). This XVR supports the ONVIF® standard.
	AI recorders with artificial intelligence This recorder supports Artificial Intelligence functions Thanks to the integrated deep learning module, the 4000-I series NVRs adopt a technology for structuring video images based on deep learning algorithms , guaranteeing extremely precise facial recognition of human faces as well as perimeter protection. The deep learning artificial intelligence applied to the 4000-I series NVRs allows users to focus on what matters most, improves the response to events and helps make the video usable. The NVR is compatible with numerous third-party devices, making it the perfect solution for surveillance systems that operate independently of the video management system (VMS) AI functions available: 1) PERIMETER PROTECTION: 1 Channels Human / Vehicle detection, secondary analysis for line crossing / intrusion AI search: search by target classification (human, vehicle) 2) FACIAL RECOGNITION: Process of faces (max 8 faces / sec. Modeling and comparing) - Face Management Database: Ability to configure multiple facial databases. Powerful face database management. The face database can be applied to video channels independently. Name, gender, date of birth, address, certificate type, certificate number, countries and regions and state can be added to each face image - Unknown mode : This recorder supports common and unknown mode. In unknown mode , when the NVR detects an unknown face (not present in the database), it can trigger an alarm, a buzzer, a snapshot, a recording. The similarity threshold can be set manually. Really useful function in all those situations where access control is extremely important. - AI search: Supports metadata search of people and vehicles. It supports uploading face images to the NVR and compares them with similar ones already registered by the NVR. It allows operators to search quickly and easily across various channels and efficiently find out when and where a subject is present.
	Smart H.265 + Smart H.265 + is the optimized implementation of the H.265 codec which uses a scene adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction useful for delivering high quality video without straining the network. Smart H.265 + greatly reduces bit rate and storage requirements compared to standard H.265 compression
	New ULTRA HD 4K Technology! Even higher resolution than FULL-HD! More detail available, greater sense of depth and realism.
	This IP NVR recorder has 16 Channels for connecting IP cameras Recording resolution up to 12Megapixel 4K ULTRA-HD
	Supports 2x 3.5 "SATA III Hard Disk up to 10 TB each (hard disk not included) ATTENTION: use specific audio / video discs on NVR systems. For more information, read our dedicated article .
	This NVR has 2 USB ports (1x rear USB2.0, 1 front 2.0)
	Resolution up to 4K via HDMI port! New ULTRA HD 4K Technology! Even higher resolution than FULL-HD! More detail available, greater sense of depth and realism. It also supports VGA output.
	4 inputs and 2 outputs for burglar alarms or other instruments and to activate external peripherals (gates, sirens, etc.)
	This NVR has 1 RCA audio input and 1 output
	Dynamic DNS: allows you to reach the NVR even in the case of Dynamic IP
	This NVR has email sending. In case of events (camera obfuscation, signal cut, motion, broken disk, network problems etc ...), it is able to send an email report, a sound notification or upload videos & screenshots via FTP
	Motion function. Recording starts when the camera detects motion.
	Ethernet LAN RJ-45 network interface (10/100 / 1000Mbps)
	RS 232 to communicate with PC and keyboard
	This product is covered by a 24 month warranty.

Data sheet

NVR2216-16P-I2

System

Main Processor

Industrial-grade embedded processor

Operating System

Embedded Linux

Operation Interface

Web / operating in local GUI

TO THE

AI by Camera

Face detection; face recognition; perimeter protection; SMD Plus

AI by Device

Face detection; face recognition; perimeter protection; SMD Plus

Perimeter Protection

Perimeter Performance AI by Device (Number of Channels)

Perimeter Performance of AI by Camera (Number of Channels)

Face Detection

Face Attributes

6 attibutes: Gender; age group (6); glasses; expressions (8); mouth mask; beard

Face Detection Performance of AI by Device (1080P) (Number of Channels)

1 (up to 12 face images / second)

Face Detection Performance of AI by Camera (Number of Channels)

Face Recognition

Face Database Capacity

Up to 10 face databases with 5,000 images

Face Recognition Performance of AI by Device (1080P) (Number of Channels)

1 (up to 4 face images / second)

Face Recognition Performance of AI by Camera (Number of Channels)

SMD Plus

SMD Plus by Device

SMD Plus by Camera

6-channel SMD Plus (AI by camera): Detects tripwire and intrustion of human or vehicle; filters false alarms caused by leaves, raindrops and change of brightness away

Video

Access Channel

16 channels

Network Bandwidth

AI off: Access: 144 Mbps; Storage: 144 Mbps; Forward: 72 Mbps AI on: Access: 72 Mbps; Storage: 72 Mbps; Forward: 36 Mbps

Resolution

12MP; 8MP; 5MP; 4MP; 3MP; 2MP; 720p; D1

Decoding Capability

AI disabled: 1-channel 12MP @ 30 fps; 1-channel 8MP @ 30 fps; 2-channel 5MP @ 30 fps; 3-channel 4MP @ 30 fps; 6-channel 1080p @ 30 fps AI enabled: 1-channel 8MP @ 30 fps; 1-channel 5MP @ 30 fps; 2-channel 4MP @ 30 fps; 4-channel 1080p @ 30 fps

Video Output

1 × VGA, 1 × HDMI (simultaneous)

Multi-screen Display

1, 4, 8, 9, 16 views

Third Party Camera Access

Onvif; RTSP

Compression

Video

Smart H.265 +; H.265; Smart H.264 +; H.264; MJPEG

Audio

PCM; G711A; G711U; G726

Network

Network Protocol

HTTP; HTTPS; TCP / IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); P2P; Auto Registration

Mobile Phone Access

Android, iOS

Interoperability

ONVIF® (profile T; profile S; profile G); CGI; SDK

Browser

Chrome; IE9 or later; Firefox

Record Playback

Multi-channel Playback

Up to 16 channels

Record Mode

Manual record; alarm recordings; motion detection recordings; scheduled recordings

Storage

Local HDD and network

Backup

USB device

Playback Function

1. Play; breaks; stop; fast forward; fast backward; rewind; play by frame
2. Full screen; backup (vide clip / file); partially zom in; audio on / off

Alarm

General Alarm

Motion detection; privacy masking; video loss; PIR alarm; IPC alarm

Anomaly Alarm

Offline camera; storage error; disk full; IP conflict; MAC conflict; login lock; cyber security exception

Intelligent Alarm

Face detection; face recognition; perimeter protection (intrusion and tripwire); IVS; SMD Plus

Alarm Linkage

Recording; snapshot; buzzer; log; presets; e-mail; tour

External Port

HDD

2 SATA ports, up to 10 TB. The maximum HDD capacity varies with environment temperature

USB

1 × front USB2.0; 1 × back USB2.0

HDMI

1 (max. Resolution: 4K)

VGA

Network

1 × RJ-45, 10/100 / 1,000 Mbps

PoE

16 × PoE ports, 10/100 Mbps

RCA Input

RCA Output

Alarm Input

Alarm Output

General Parameter

Power Supply

100-240V, 47-63HZ, 3.5A

Power Consumption

Total output of NVR is ≤ 10W (without HDD) Total output power of PoE is 130W, the maximum output power of a single port is 25.5W

Net Weight

2.63 kg (5.80 lb)

Gross weight

3.91 kg (8.62 lb)

Product Dimensions

375mm × 329.3mm × 53mm (14.76 "× 12.96" × 2.09 ") (W × L × H)

Package Dimensions

148mm × 449mm × 421mm (5.83 "× 17.68" × 16.57 ") (W × L × H)

Operating Temperature

–10 ° C to +55 ° C (+14 ° F to +131 ° F)

Storage Temperature

0 ° C to 40 ° C (32 ° F to 104 ° F)

Operating Humidity

10% –93%

Storage Humidity

30% –85%

Operating Altitude

3,000 m (9,842.52 ft)

Installation

Desktop

Certifications

FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032: 2015, Class A; EN IEC 61000- 3-2: 2019; EN 61000-3-3: 2013 + A1: 2019; EN 55024: 2010 + A1: 2015; EN 55035: 2017; EN 50130- 4: 2011 + A1: 2014 CE-LVD: EN 62368-1: 2014 + A11: 2017
