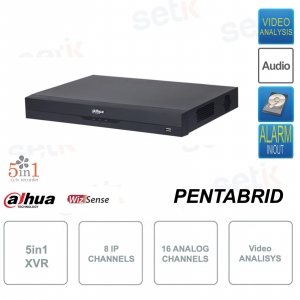

XVR IP ONVIF® 5in1 - 16 channels - 5M-N-1080p - IOT and POS - Audio - Alarm - Video Analysis

System

Main Processor

Embedded processor

Operating System

Embedded Linux

Perimeter Protection

Perimeter Performance AI by Recorder (Number of Channels)

Advanced Model: 2 channel, 10 IVS for each channel General Model: 4 channels, 10 IVS for each channe

Face Detection

Face Attributes

6 attributes: Gender, age groups (6), glasses, expressions (8), face mask, beard, with up to four detection panels displayed at the same time.

Face Detection Performance of AI by Recorder (Number of Channels)

2 channels, and a single channel can detect up to 12 faces.

Face Recognition

Face Database Capacity

Up to 10 face databases and 10,000 pictures.

Face Recognition Performance of AI by Recorder (Number of Channels)

2 channels

SMD Plus

SMD Plus by Recorder

Full-channel SMD Plus (AI by recorder), secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change

Audio and Video

Analog Camera Input

16 channels, BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured.

Camera Input

1. CVI: 5MP, 4MP, 1080p @ 25 / 30fps, 720p @ 50 / 60fps, 720p @ 25 / 30fps.
2. TVI: 5MP, 4MP, 3MP, 1080p @ 25/30, 720p @ 25 / 30fps.
3. AHD: 5MP, 4MP, 3MP, 1080p @ 25/30, 720p @ 25 / 30fps.

IP Camera Input

16 + 8 channels, each channel up to 6MP

Encoding Capacity

All channel 5M-N (1 fps – 10 fps); 4M-N / 1080p (1 fps – 15 fps); 1080N / 720p / 960H / D1 / CIF (1 fps – 25/30 fps)

Dual-stream

Supported (D1 / CIF (1 fps – 15 fps)).

Video Frame Rate

PAL: 1 fps – 25 fps.
NTSC: 1 fps – 30 fps.

Video Bit Rate

32 Kbps – 6144 Kbps Per Channel

Audio Sampling

8KHz, 16bit Per Channel

Audio Bit Rate

64 Kbps Per Channel

Bit Rate Type

Video stream and composite stream.

Video Output

1 HDMI, 1 VGA
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720

It changes to 1920 × 1080, 1280 × 1024, 1280 × 720 when Face or IVS & SMD is selected in AI Mode.

Multi-screen Display

When IP extension mode not enabled: 1/4/8/9/16
When IP extension mode enabled: 1/4/8/9/16/25

Third-party Camera Access

Onvif, RTSP, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung

Compression Standard

Video Compression

Certifications

CE: CE-LVD: EN 60950-1 / IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
FCC: Part 15 Subpart B
