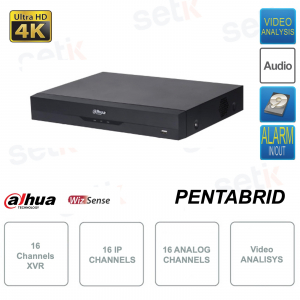

XVR5116HE-4KL-I3 - Dahua XVR 16-Channel - ONVIF - HDCVI / AHD / TVI / CVBS / IP 5in1 - Resolution 4K-N / 5MP - 16 IP channels - 16 analog channels - H.265 + video compression with AI Coding - 1xHDMI, 1xVGA, 2xUSB, RS485, RJ45 (1000M) - Support for 1 SATA 3.5 "HDD for Audio / Video (max 16TB, not included) - Audio - Alarm - IoT & POS technology and Video Analysis - Supports facial recognition - SMD Plus.

Reference: XVR5116HE-4KL-I3

Brand: Dahua

EAN: 6923172541857

FIND INSTALLER

€513.38

€1,283.44 -60%
taxes included
Tax included
  Hurry up! Only a few pieces left in our warehouse!
 Available
discover the available quantity

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


XVR ONVIF® 16 CHANNELS 5IN1 "HDCVI / HDTVI / AHD / ANALOG / IP" - 4K-N / 5MP RESOLUTION - DAHUA - XVR5116HE-4KL-I3

Prodotto Marca Dahua
16 Channel Surveillance Recorder - XVR ONVIF® - Dahua - XVR5116HE-4KL-I3
5 in 1: "Hdcvi / Hdtvi / Ahd / Analog / Ip" - Resolution 4K-N / 5MP - Video up to H.265 + with AI Coding / Video Dual Stream / 1xHDMI (4K) - 1xVGA (1080p) - 2xUSB - 1xRS485 - 1xHDD mountable up to 16TB! (not included)
Connection to POS - IoT - Video Analysis with Face Detection (on database up to 20,000 records) - Perimeter protection - SMD Plus - Audio RCA 1in / 1out two-way - Audio 8xBNC (coaxial) - Alarm 16in / 3out - RJ-45 1000M - RS-485 - 24 months warranty

Comparazione tra XVR5108HS XVR5108HS-S2 XVR5108HS-X XVR5108HS-4KL-X

Product details

XVR Dahua 8 Canali 5in1 CVI/TVI/AHD/Analogico/IP 8MP 4K ULTRA HD
Articolo Blog Setik

DAHUA X SERIES

If you want to know more about this new series of XVR 5 in1 Dahua recorders , read the article we wrote!

Click here

5 Technologies in 1!
This DVR supports 5 different technologies ( HDCVI-HDTVI-AHD-ANALOG-IP )
Standard ONVIF® Onvif is the most important standard in the IP world.
Being Onvif guarantees a wide range of compatible IP devices (DVRs / cameras).

This XVR supports ONVIF® version 16.12

H265+ Video Compressione
This XVR provides compression standards up to H.265 +

H.265 +: What are the benefits?

- Up to 90% savings on bandwidth

- Reduction of storage space

- Longer recording times on analog surveillance systems with the same storage space.

Standard di Video Compressione H.265+


Available Resolutions:

16 Channels up to 4K-N / 5MP

Up to maximum 32 channels:
16 IP channels + 16 analog channels (analog channels are switched to IP channels)

Interfaccia grafica Dahua

Dahua has released the new 4.0 GUI!

GUI-XVR 4.0:

After more than a year of design and development, the next generation graphical interface, XVR4.0, has been released.

Beautiful and simple, XVR4.0 ensures perfect viewing.

The color schemes, flat interface and visual icons present a user-friendly experience.

Integrated functional and logic modules to simplify user operation and improve product competitiveness

Nuova interfaccia dahua 4.0

Questo DVR supporta telecamere per la videosorveglianza Supports cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and others ...
(operation with the models proposed here is to be verified from case to case)

This VCR supports Video Analysis (IVS) on all channels (up to 10 rules per channel (Max 2)), Face Detection (on the first channel only) and Smart Search.

VIDEO ANALYSIS (IVS)

- Perimeter protection

- SMD Plus

- Face recognition

Collegamento a dispositivi POS

Possibility of connecting POS devices, obtaining all the information superimposed on the channel.

Possibility of searching pos by date or transaction

Possibilità di collegamento dispositivi POS

Funzione POS

Compatibile con Hard Disk SATA Audio/Video AV-GP

Supports 1x 3.5 "SATA Audio / Video Hard Disk up to 16TB!


ATTENTION: Use specific audio / video discs on DVR systems.
For more information, read our dedicated article .

HARD DISK NOT INCLUDED!

4K Risoluzione Ultra HD

HDMI port with resolution up to 4K

VGA output with resolution up to 1080P

Questo DVR presenta ingressi / uscite audio This DVR has 1 Audio IN and 1 Audio OUT RCA
This camera has alarm inputs and outputs This camera has 16 alarm inputs and 3 alarm outputs.
Porta USB IN This DVR has 2x USB Ports ((1 USB 2.0,1 USB 3.0)
Questo DVR presenta 2 porte RJ-45 ( 10 / 100 / 1000Mbps) This DVR has 1 RJ45 LAN Ethernet Port (1000M)
Porta RS485 RS 485 for PTZ commands (remotely controllable cameras)
Dynamic DNS: permette di raggiugere il DVR anche in caso di IP Dinamico Dynamic DNS: allows you to reach the DVR even in case of Dynamic IP
Questo dvr può sovrascrivere automaticamente il disco Ability to have the disk overwrite when full or have the disk overwrite after X days. DVR restart programming to ensure greater stability over time
Funzione Invio email

This DVR has email sending.
In case of events (camera obfuscation, signal cut, motion, broken disk, network problems etc ...), it is able to send a report via email

Funzione Motion. La registrazione parte nel momento in cui la telecamera rileva movimento. Motion function. Recording starts when the camera detects motion.
Questo prodotto è coperto da garanzia 24 mesi italiana

This product is covered by a 24 month warranty.

Data sheet

XVR5116HE-4KL-I3

Technical Specs

System

Main Processor

Industrial-grade processor

Operating System

Embedded Linux

Operating Interface

Web; Local GUI

Perimeter Performance AI by Recorder (Number of Channels)

Advanced Model: 2 channels, 10 IVS for each channel General Model: 8 channels, 10 IVS for each channel

Face Detection

Face Attributes

Gender; age group; glasses; expressions; face mask; beard

Face Detection Performance of AI by Recorder (Number of Channels)

2 channels (up to 12 face images / s)

Face Recognition

Face Database Capacity

Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries®ions and state can be added to each face picture

Face Recognition Performance of AI by Recorder (Number of Channels)

2 channels

SMD Plus

SMD Plus by Recorder

16 channels: Secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change

Audio and Video

Analog Camera Input

16 BNC ports, CVI access by default, supports HDCVI / AHD / TVI / CVBS auto-detect

1 SATA Port, up to 16 TB for a single HDD, the maximum HDD capacity varies with environment temperature

RS-485

1

USB

2 (1 front USB 2.0 port, 1 rear USB 3.0 port)

HDMI

1

VGA

1

Network Port

1 (10/100/1000 Mbps Ethernet port, RJ-45)

General
Power Supply 12 VDC, 3 A
Power Consumption Lower than 15 W (without HDD)
Net Weight 1.45 kg (3.20 lb)
Gross Weight 2.33 kg (5.14 lb)
Product Dimensions Mini 1U, 325.0 mm × 257.1 mm × 55.0 mm (12.80 '' × 10.12 '' × 2.17 '') (W × D × H)
Packaging Dimensions

372.0 mm × 117.0 mm × 308.0 mm (14.65 "× 4.61" ×

12.13 ") (W × D × H)

Operating Temperature –10 ° C to +55 ° C (14 ° F to +131 ° F)
Operating Humidity 10% –90% (RH)
Installation Desktop
Certifications CE: CE-LVD: EN 60950-1 / IEC 60950-1 CE-EMC: EN 610003-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B

Further details

Schema del registratore XVR5108HS-4KL-X
Risoluzioni a confronto

Download

Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
