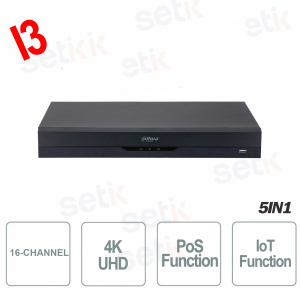

XVR Dahua 16 Channels Hdcvi 4K Ahd Tvi Cvbs Ip H.265 Wizsense Alarm 2HDD AI

XVR Dahua 16 Channels Hdcvi 4K Ahd Tvi Cvbs Ip H.265 Wizsense Alarm 2HDD AI
BEST PRICE -58%

WizSense XVR5216A-4KL-I3 Dahua XVR 16 Analog Channels Hdcvi 4K TVI Analog 5in1 with resolution up to 4K ULTRA-HD UHD 8Megapixel and video compression up to H.265 + . Up to 32 IP channels 8MP 1 HDMI (up to 4k), 1 VGA, 2 USB, RS485, support for 2 HDD SATA 3.5 "Audio / Video (max 16TB each), Audio, Alarm . With Artificial Intelligence (Face Recognition, Perimeter Protection), IoT Technology and Video Analysis



Reference: XVR5216A-4KL-I3

Brand: Dahua

EAN: 6923172539755

FIND INSTALLER

€586.70

€1,396.90 -58%
taxes included
Tax included
 Available from 30 December 2024
 starting

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


Description Product Details Data Sheet Further Details Download

XVR DAHUA 16 ANALOG CHANNELS HDCVI 4K HDTVI AHD ANALOG - 32 IP UP TO 8MEGAPIXEL ALARM 2HDD - WIZSENSE DAHUA

Prodotto Marca Dahua 16 Channel Surveillance Recorder - Dahua
5 technologies in 1: "Hdcvi / Hdtvi / Ahd / Analog / Ip" - 4K ULTRA-HD up to 8Megapixel!
Video Compression up to H.265 + / HDMI - VGA - USB - RS485 - 2HDD up to 10TB each - Alarm
On board Artificial Intelligence and IoT [Perimeter Protection, Face Detection, SMD Plus, AI Coding, AI Search]

Tecnologia WizSense

WIZSENSE TECHNOLOGY:
Launched by Dahua Technology, WizSense is a series of wide-ranging AI products and solutions that adopt an independent AI chip and deep learning algorithm. It can recognize man and vehicle in an image with high accuracy, allowing users to focus on real targets. Based on Dahua's advanced technology, WizSense makes your videos smart, simple and inclusive.

Smart refers to WizSense based on AI chip and deep learning algorithm. It provides various features that make accurate alerts for people and vehicles, as well as a quick search for targets, maximizing resources to increase overall efficiency.
Simple means that WizSense offers a simple setup, especially for SMD Plus which can be enabled with a single button. It facilitates the daily work of customers and also empowers them to make better business decisions.
Inclusiveness of WizSense is the idea that everyone gets opportunities and benefits from artificial intelligence. With affordable pricing and easy Dahua WizSense setup, AI is no longer limited to the ivory tower, but is instead applied to real-world scenarios.

Product details

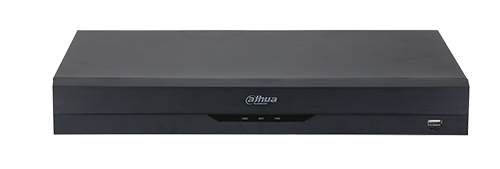

XVR Dahua 16 Canali 5in1 CVI/TVI/AHD/Analogico/IP 8MP 4K ULTRA HD Allarme 2HDD

Novità


Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt an independent AI chip and deep learning algorithm. It focuses on people and vehicles with high accuracy, allowing users to act quickly on defined goals. Based on Dahua's advanced technologies, WizSense provides smart and simple products.

New XVR XVR5000-4KL-I2 series, equipped with SMD Plus on all channels to benefit customers from AI upgrade. The series is designed to reduce false alarm rates and human vigilance costs, thus bringing great value to customers looking for accurate human / vehicle alarm products, to increase the security level of various indoor and outdoor facilities.


AI search: Supports people and vehicle metadata search. It supports uploading face images to the NVR and compares them with similar ones already registered by the NVR. It allows operators to search quickly and easily across various channels and efficiently find out when and where a subject is present.

5 Technologies in 1!
This DVR supports 5 different technologies ( HDCVI-HDTVI-AHD-ANALOG-IP )
Standard ONVIF® Onvif is the most important standard in the IP world.
Being Onvif guarantees a wide range of compatible IP devices (DVRs / cameras).

This XVR supports ONVIF® version 16.12
H265+ Video Compressione

AI Coding: What is it all about?

AI coding

Compared to H.265, the AI codec can reduce up to 50% in bit rate and storage requirements without loss of decoding compatibility, providing clear human and vehicle details.




Videoregistratore ad 16 canali

16 Channels with up to 8Megapixel 4K UHD ULTRA-HD resolution!

Supported technologies and resolutions:
HDCVI camera: 4K, 6MP, 5MP, 4MP, 1080P @ 25 / 30fps, 720P @ 50 / 60fps, 720P @ 25 / 30fps.
AHD Cameras:: 4K, 5MP, 4MP, 3MP, 1080P @ 25 / 30fps, 720P @ 25 / 30fps
TVI cameras: 4K, 5MP, 4MP, 3MP, 1080P @ 25 / 30fps, 720P @ 25 / 30fps

Hybrid mode:
16 channels + 32 IP channels (each channel up to 8MP)

Bandwidth up to 128Mbps

4K Risoluzione Ultra HD New ULTRA HD 4K Technology!
Even higher resolution than FULL-HD!
More detail available, greater sense of depth and realism.

AI | Artificial intelligence
This surveillance recorder supports Artificial Intelligence functions!


Face recognition: Real-time facial recognition and capture and saving of faces in the database

Metadata: Ability to extrapolate important information (metadata) such as age, gender, facial expressions, glasses or particular characteristics

Image Search: Quick search of the recorded metadata. It supports the loading of face images on the XVR comparing them with those already present.

Blacklist Alarm: Support "normal" and "unknown" modes. In "unknown" mode when the XVR detects a face not present in the database, it sends an alarm / buzzer / photo / recording.

False Alarm FIlter : Greater accuracy and precision in detecting danger signals, classifying them between harmless (falling leaves, drops of water) and real.

SMD Plus: With the deep learning algorithm, Dahua SMD Plus filters the alarm received from the detection of an unaffected target and effectively recognizes humans and vehicles, sending alarms when they appear in the shooting area.

AI search: Supports people and vehicle metadata search. It supports uploading face images to the XVR and compares them with similar ones already recorded by the XVR. It allows operators to search quickly and easily across various channels and efficiently find out when and where a subject is present.

Unknown mode: This recorder supports common and unknown mode. In unknown mode, when the XVR detects an unknown face (not present in the database), it can trigger an alarm, a buzzer, a snapshot, a recording. The similarity threshold can be set manually. Really useful function in all those situations where access control is extremely important.

Face Management Database: Ability to configure multiple facial databases. Powerful face database management. The face database can be applied to video channels independently. Name, gender, date of birth, address, certificate type, certificate number, countries and regions and state can be added to each face image

Questo DVR supporta telecamere per la videosorveglianza Supports cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and others ...
(operation with the models proposed here is to be verified from case to case)
Collegamento a dispositivi POS

Possibility of connecting POS devices, obtaining all the information superimposed on the channel.

Possibility of searching pos by date or transaction

Possibilità di collegamento dispositivi POS

Funzione POS

Compatibile con Hard Disk SATA Audio/Video AV-GP

Supports 2x 3.5 "SATA Audio / Video Hard Disk up to 16TB each!


ATTENTION: Use specific audio / video discs on DVR systems.
For more information, read our dedicated article .

HARD DISK NOT INCLUDED!

4K Risoluzione Ultra HD

HDMI port with resolution up to 4K

New ULTRA HD 4K Technology!
Even higher resolution than FULL-HD!
More detail available, greater sense of depth and realism.

VGA output with resolution up to 1080P

Questo DVR supporta la funzione Cloud 2P2 proprietario Dahua

This XVR features the Cloud p2p feature via:

EASYVIEWER and DMSS

Cloud P2P App DMSS Dahua

Questo DVR presenta ingressi / uscite audio This DVR has 4 Audio inputs and 1 RCA audio output
Questo DVR presenta 8 ingressi allarme e 1 uscita allarme This DVR has 16 Inputs + 3 Alarm Outputs
Porta USB IN This XVR features 2x USB ports (1 USB 2.0, 1 USB 3.0)
Questo DVR presenta 2 porte RJ-45 ( 10 / 100 / 1000Mbps) This DVR has 1 RJ45 LAN Ethernet Port ( (10/100 / 1000Mbps)
Porta RS485 RS 485 for PTZ commands (remotely controllable cameras)
Dynamic DNS: permette di raggiugere il DVR anche in caso di IP Dinamico Dynamic DNS: allows you to reach the DVR even in case of Dynamic IP
Questo dvr può sovrascrivere automaticamente il disco Ability to overwrite the disk when full or have the disk overwrite after X days. DVR restart programming to ensure greater stability over time
Funzione Invio email

This DVR has email sending.
In case of events (camera obfuscation, signal cut, motion, broken disk, network problems etc ...), it is able to send a report via email

Funzione Motion. La registrazione parte nel momento in cui la telecamera rileva movimento. Motion function. Recording starts when the camera detects motion.
Questo prodotto è coperto da garanzia 24 mesi italiana

This product is covered by a 24 month warranty.

Data sheet

Model: DVR XVR5216A-4KL-I3
SYSTEM
Main Processor Industrial-grade processor
Operating System Embedded Linux
Operating Interface Web; Local GUI
PERIMETER PROTECTION
Perimeter Performance AI by Recorder (Number of Channels) Advanced Model: 2 channels, 10 IVS for each channel General Model: 8 channels, 10 IVS for each channel
FACE RECOGNITION
Face Attributes Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Recorder (Number of Channels) 2 channels (up to 12 face images / s)
Face Database Capacity Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries®ions and state can be added to each face picture
Face Recognition Performance of AI by Recorder (Number of Channels) 2 channels
SMD PLUS
SMD Plus by Recorder 16 channels: Secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change
VIDEO AND AUDIO
Analog Camera Input 16 BNC ports, CVI access by default, supports HDCVI / AHD / TVI / CVBS auto-detect
HDCVI Camera 4K, 6MP, 5MP, 4MP, 1080P @ 25 / 30fps, 720P @ 50 / 60fps, 720P @ 25 / 30fps
AHD Camera 4K, 5MP, 4MP, 3MP, 1080P @ 25 / 30fps, 720P @ 25 / 30fps
TVI Camera 4K, 5MP, 4MP, 3MP, 1080P @ 25 / 30fps, 720P @ 25 / 30fps
CVBS Camera PAL / NTSC
IP Camera Input Up to 32 channels of IPC access 16 IP channels by default + 16 channels (analog channels are converted to IP channels) incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps * After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled.
Encoding Capacity Main stream: All channels 4K @ (1-7fps); 6MP @ (1-10fps); 5MP @ (1-12fps); 4K-N / 4MP / 3MP @ (1-15fps); 4M-N / 1080P / 720P / 960H / D1 / CIF (1fps – 25 / 30fps); Sub stream: 960H @ (1fps – 15fps); D1 / CIF @ (1 fps– 25 / 30fps))
Dual-stream Yes
RECORDING
Compression AI Coding / H.265 + / H.265 / H.264 + / H.264
Resolution 4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
Record Rate Main stream: All channel 4K (1fps – 7fps); 6MP (1fps– 10fps); 5MP (1fps – 12fps); 4K-N, 4MP / 3MP (1fps – 15fps); 4M-N / 1080P / 720P / 960H / D1 / CIF (1fps – 25 / 30fps); Sub steram: 960H (1fps – 15fps); D1 / CIF (1fps – 25 / 30fps
Bit Rate 32 Kbps – 6144 Kbps Per Channel
Record Mode Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval 1 - 60 min (default: 60 min), Pre-record: 1 s – 30 s, Postrecord: 10 s – 300 s
Audio Compression AAC (only for the 1st channel), G.711A, G.711U, PCM
Audio Sample Rate 8KHz, 16bit Per Channel
Audio Bit Rate 64 Kbps Per Channel
DISPLAY
Interface 1 HDMI, 1 VGA
Resolution HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display When IP extension mode not enabled: 1/4/8/9/16
When IP extension mode enabled: 1/4/8/9/16/25/36
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
NETWORK
Interface 1 RJ-45 Port (1000 MB)
Network Function HTTP, HTTPS, TCP / IP, IPv4 / IPv6, Wi-Fi, 3G / 4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF® 16.12, CGI Conformant
VIDEO DETECTION AND ALARM
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Alarm input 16
Relay Output 3
PLAYBACK AND BACKUP
Playback 1/4/9/16
Search Mode Time / Date, Alarm, MD and Exact Search (accurate to second)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device / Network
STORAGE
Internal HDD 2 SATA Ports, up to 10TB capacity for each disk
eSATA N / A
AUXILIARY INTERFACE
USB 2 USB Ports (1 USB 2.0, 1 USB 3.0)
RS232 N / A
RS485 1 Port, for PTZ Control
ELECTRICAL
Power Supply DC 12V / 5A
Power Consumption <15W
CONSTRUCTION
Dimensions

1U, 375 mm × 288 mm × 53 mm (14.76 '' × 11.30 '' × 2.09 '')

Net Weight

1.9 kg (4.2 lb)

Gross Weight

3.2 kg (7.0 lb)

Installation

Desktop installation

ENVIRONMENTAL
Operating Conditions -10 ° C to + 55 ° C (+ 14 ° F to + 131 ° F), 0–90% RH
Storage Conditions -20 ° C to + 70 ° C (-4 ° F to + 158 ° F), 0–90% RH
THIRD-PARTY SUPPORT
Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
CERTIFICATIONS
Certifications FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1 / IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024

Further details

Schema del registratore XVR5216A-4KL-I2_schema
Risoluzioni a confronto

Download

Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
