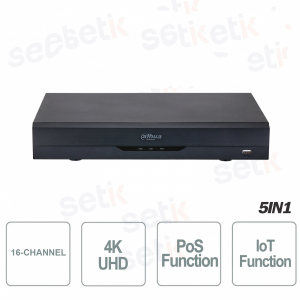

XVR Dahua 16 Channels Hdcvi 4K Ahd TVi CVbs Ip H.265 Wizsense AI IVS SMD Plus

BEST PRICE -59%

WizSense XVR5116H - 4KL-I3 Dahua 1 HDMI (up to 4k), 1 VGA, 2 USB, RS485, support for 1HDD SATA 3.5" Audio/Video (max 16TB.), Audio. With Artificial Intelligence, IoT Technology and Video Analysis

Reference: XVR5116H-4KL-I3

Brand: Dahua

EAN: 6923172541840

FIND INSTALLER

https://www.setik.biz/en/recording-devices/7774-dahua-xvr5116h-4kl-i3-xvr-dahua-16-channels-hdcvi-4k-ahd-tvi-cvbs-ip-h265-wizsense-ai-ivs-smd-plus.html

€454.68

€1,108.98 -59%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Hurry up! Only a few pieces left in our warehouse!

discover the available quantity

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

CHRISTMAS WEEK 2024 ×

FREE SHIPPING
ON THE ENTIRE CATALOGUE!

1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!

Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

Description Product Details Technical Data Sheet Further Details Download

XVR DAHUA 16 CHANNELS HDCVI 4K HDTVI AHD ANALOG IP UP TO 8MEGAPIXELS - WIZSENSE DAHUA

16 Channel Surveillance Recorder - Dahua
5 technologies in 1: "Hdcvi/Hdtvi/Ahd/Analog/Ip" - 4K ULTRA-HD up to 8Megapixel!
Video Compression up to H.265+ / HDMI - VGA - USB - RS485 - 1HDD up to 16TB!
On board ➽ Artificial Intelligence and IoT [Perimeter protection, Face Detection, SMD Plus, AI Coding, AI Search]

Tecnologia WizSense

WIZSENSE TECHNOLOGY:
Launched by Dahua Technology, WizSense is a series of broad-based AI products and solutions that adopt independent AI chip and deep learning algorithm. It can recognize human and vehicle in an image with high accuracy, allowing users to focus on real targets. Powered by Dahua's advanced technology, WizSense makes your videos smart, simple and inclusive.

Intelligent refers to WizSense based on AI chip and deep learning algorithm. It provides various features that realize accurate alerts for people and vehicles, as well as rapid target search, maximizing resources to increase overall efficiency.
Simple means that WizSense offers simple setup, especially for SMD Plus which can be enabled with just one button. It makes customers' daily work easier and also empowers them to make better business decisions.
WizSense inclusiveness is the idea that everyone gains opportunities and benefits from artificial intelligence. With affordable pricing and easy setup of Dahua WizSense, AI is no longer limited to the ivory tower, but is instead applied to real-world scenarios.

Product details

XVR Dahua 16 Canali 5in1 CVI/TVI/AHD/Analogico/IP 8MP 4K ULTRA HD

	Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on people and vehicles with high precision, allowing users to act quickly on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent and simple products. New XVR series XVR5000-4KL-I2, equipped with SMD Plus on all channels to benefit customers from the AI upgrade. The series is designed to reduce false alarm rates and human surveillance costs, thus bringing great value to customers looking for accurate human/vehicle alarm products to increase the security level of various indoor and outdoor facilities. AI search: Supports searching for metadata of people and vehicles. It supports uploading face images to the NVR and comparing them with similar ones already recorded by the NVR. It allows operators to quickly and easily search across various channels and efficiently discover when and where a subject is present.
	5 Technologies in 1! This DVR supports 5 different technologies ( HDCVI-HDTVI-AHD-ANALOG-IP )
	Onvif is the most important standard in the IP world. Being Onvif guarantees a wide range of IP devices compatible with each other (DVRs/cameras). This XVR supports ONVIF® version 16.12
	AI Coding: What is it? Compared to H.265, the AI codec can reduce up to 50% in bit rate and storage requirements without loss of decoding compatibility, providing clear human and vehicle details.
	16 Channels with resolution up to 8Megapixel 4K UHD ULTRA-HD! Supported technologies and resolutions: HDCVI camera: 4K, 6MP, 5MP, 4MP, 1080P@25fps, 720P@50fps,720P@25fps AHD cameras: 4K, 5MP, 4MP, 3MP, 1080P@25, 720P@25fps TVI cameras: 4K, 5MP, 4MP, 3MP, 1080P@25, 720P@25fps Hybrid Mode: 16 channels + 16 IP channels (each channel up to 8MP)
	New ULTRA HD 4K Technology! Even higher resolution than FULL-HD! More detail available, greater sense of depth and realism.
	AI \| Artificial intelligence This surveillance recorder supports Artificial Intelligence functions! Face Recognition: Real-time face recognition and capture and save faces in the database Metadata: Possibility to extrapolate important information (metadata) such as age, gender, facial expressions, glasses or particular characteristics Image Search: Quick search of recorded metadata. Supports uploading face images to the XVR by comparing them with those already present. Blacklist Alarm: Support "normal" and "unknown" modes. In "unknown" mode when the XVR detects a face not in the database, it sends an alarm/buzzer/photo/record. False Alarm FIlter : Greater accuracy and precision in detecting danger signals, classifying them between harmless (falling leaves, drops of water) and real. SMD Plus: With the deep learning algorithm, Dahua SMD Plus filters the alarm received from the detection of an uninterested target and effectively recognizes humans and vehicles, sending alarms when the latter appear in the shooting area. AI search: Supports searching for metadata of people and vehicles. It supports uploading face images to the XVR and comparing them with similar ones already recorded by the XVR. It allows operators to quickly and easily search across various channels and efficiently discover when and where a subject is present. Unknown Mode: This recorder supports common and unknown mode. In unknown mode, when the XVR detects an unknown face (not present in the database), it can trigger an alarm, a buzzer, a snapshot, a recording. The similarity threshold can be set manually. Really useful function in all those situations where access control is extremely important. Face Management Database: Ability to configure multiple face databases. Powerful face database management. The face database can be applied to video channels independently. Name, gender, date of birth, address, certificate type, certificate number, countries and regions and status can be added to each face image
	Supports cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and others... (operation with the models proposed here must be verified on a case-by-case basis)
	Possibility of connecting POS devices, obtaining all the information superimposed on the channel. Possibility of pos search by date or transaction
	Supports 1x SATA Audio / Video 3.5" Hard Disk up to 16TB! ATTENTION: on DVR systems use specific audio/video discs. For more information, read our dedicated article . HARD DRIVE NOT INCLUDED!
	HDMI port with resolution up to 4K New ULTRA HD 4K Technology! Even higher resolution than FULL-HD! More detail available, greater sense of depth and realism.
	VGA output with resolution up to 1080P
	This XVR features Cloud p2p function via: EASYVIEWER and DMSS
	This DVR features 1 Audio input and 1 RCA Audio output
	This XVR features 2x USB Ports ((1 USB 2.0, 1 USB 3.0)
	This DVR features 1 RJ45 Ethernet LAN Port (1000M)
	RS 485 for PTZ Commands (Remotely Controlled Cameras)
	Dynamic DNS: allows you to reach the DVR even in case of Dynamic IP
	Ability to overwrite the disk when it is full or have the disk overwrite after X days. DVR restart programming to ensure greater stability over time
	This DVR has email sending. In case of events (camera blurring, signal cutting, motion, broken disk, network problems etc...), it is able to send a report via email
	Motion function. Recording starts when the camera detects movement.
	This product is covered by a 24 month warranty.

Data sheet

Model: DVR	XVR5116H-4KL-I3
SYSTEM
Main Processor	Embedded processors
Operating System	Embedded LINUX
PERIMETER PROTECTION
Performance	2 channels, 10 IVS for each channel
Object classification	Human/Vehicle secondary recognition for tripwire and intrusion
AI Seach	Search by target classification (Human, Vehicle)
FACE RECOGNITION
Performance	Max 12 face pictures/sec processing 2 channels video stream face recognition, only support analog camera
Stranger Mode	Detect strangers' faces (not in device's face database). Similarity threshold can be set manually
AI Search	Up to 8 target face images search at same time, similarity threshold can be set for each target face image.
Database Management	Up to 20 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries®ions and state can be added to each face picture
Database Application	Each database can be applied to video channels independently.
Trigger Events	Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.
SMD PLUS
Performance	16 channels
AI Search	Search by target classification (Human, Vehicle)
VIDEO AND AUDIO
Analog Camera Input	16 Channel, BNC
HDCVI Camera	4K, 6MP, 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
AHD Camera	4K, 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
TVI Camera	4K, 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
CVBS Camera	PAL/NTSC
IP Camera Input	16+16 channels, each channel up to 8MP
Audio In/Out	1/1, RCA
Two-way Talk	Reuse audio in/out, RCA
RECORDING
Compression	AI Coding/H.265+/H.265/H.264+/H.264
Resolution	4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
Record Rate	Main stream: All channel 4K(1fps–7fps); 6MP(1fps–10fps); 5MP(1fps–12fps); 4K-N, 4MP/3MP(1fps–15fps); 4M-N/1080P/720P/960H/D1/CIF (1fps–25/30fps); Sub stream:960H(1fps–15fps); D1/CIF(1fps–25/30fps)
Bit Rate	32Kbps–6144Kbps Per Channel
Record Mode	Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval	1 – 60 min (default: 60 min), Pre-record: 1 s–30 s, Postrecord: 10 s–300 s
Audio Compression	AAC(only for the 1st channel), G.711A, G.711U, PCM
Audio Sample Rate	8 KHz, 16 bits Per Channel
Audio Bit Rate	64 Kbps Per Channel
DISPLAY
Interface	1 HDMI, 1 VGA
Resolution	HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display	When IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled: 1/4/8/9/16/25/36
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
NETWORK
Interface	1 RJ-45 Port (1000MB)
Network Function	HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P, IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Max. User Access	128 users
Smart Phones	iPhone, iPad, Android
Interoperability	ONVIF® 16.12, CGI Conformant
VIDEO DETECTION AND ALARM
Trigger Events	Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection	Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Alarm input	N/A
Relay Output	N/A
PLAYBACK AND BACKUP
Playback	1/4/9/16
Search Mode	Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function	Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode	USB Device/Network
STORAGE
Internal HDD	1 SATA Port, up to 16TB capacity
eSATA	N/A
AUXILIARY INTERFACE
USB	2 USB Ports (1 USB 2.0, 1 USB 3.0)
RS232	N/A
RS485	1 Port, for PTZ Control
ELECTRICAL
Power Supply	DC 12V/3A
Power Consumption	<15W
CONSTRUCTION
Dimensions	Mini 1U, 325 mm × 257 mm × 55 mm (12.80'' × 10.11'' × 2.17'')
Net Weight	1.3kg (2.9lb)
Gross Weight	2.1kg (4.6lb)
Installation	Desktop installation
ENVIRONMENTAL
Operating Conditions	-10°C to +55°C (+14°F to +131°F), 0–90% RH
Storage Conditions	-20°C to +70°C (-4°F to +158°F), 0–90% RH
THIRD PARTY SUPPORT
Third-party Support	Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
CERTIFICATIONS
Certifications	FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
