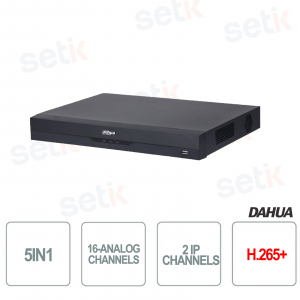

XVR ONVIF® 16 channels 5in1 - Up to 16 analog channels - 2 IP input channels

XVR ONVIF® 16 channels 5in1 - Up to 16 analog channels - 2 IP input channels
-57%

XVR4216AN-I - XVR - 16 Analog Channels 1080P - 5in1 ( HDCVI+AHD+TVI+ANALOG+IP ) - 2 Channels IP Resolution up to 6MP - Compression up to H.265+ - Support 2HDD up to 16TB - 1xHDMI - 1xVGA - RS485 - Audio 1 RCA channel 16 BNC channels (coaxial) - ONVIF - Cloud P2P - Hard Disk NOT included - 24 month manufacturer's warranty.



Reference: XVR4216AN-I

Brand: Dahua

EAN: 6939554964091

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

SSD1TB SHOCK PRICE!×


 SSD1TB SHOCK PRICE!
Same price as the NON-SSD version!
Only 100 pieces!
  Buy now >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

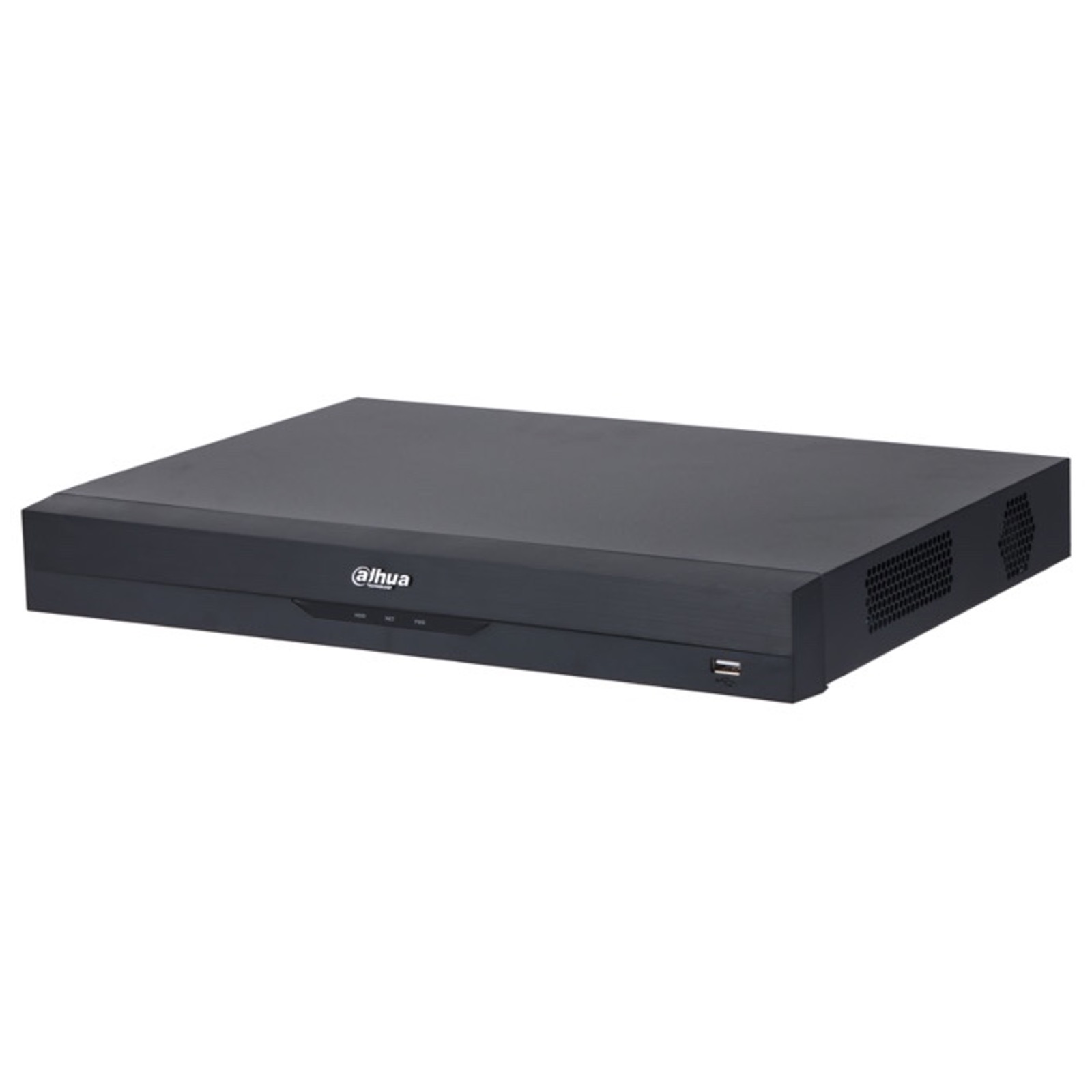

DVR VIDEO RECORDER 16 ANALOG CHANNELS 5 TECHNOLOGIES IN 1 - 2 IP CHANNELS - 2HDD - DAHUA - XVR4216AN-I

Made by Setik
XVR 16 Analog Channels 1080P 5in1 - Dahua - XVR4216AN-I
5in1 ( HDCVI+AHD+TVI+ANALOG+IP ) - 2 IP Channels Resolution up to 6MP
Compression up to H.265+ - Support 2HDD up to 16TB (not included) - 1xHDMI - 1xVGA - RS485 - Audio 1 RCA channel and 16 BNC channels
ONVIF® - Cloud P2P - Hard Disk NOT included - 24 months warranty

Product details

DVR 16 Canali 5in1 Dahua Audio 2HDD
Articolo Blog Setik

DAHUA SERIES X

If you want to learn more about this new series of Dahua 5 in1 XVR recorders , read the article we wrote!

Click here

5 Technologies in 1!
This DVR supports 5 different technologies ( HDCVI+AHD+TVI+ANALOG+IP )
Standard ONVIF® Onvif is by far the most important Standard in the IP world.
Being Onvif guarantees a wide range of compatible IP devices (DVRs/cameras).

This XVR supports ONVIF® version 21.06; CGI conformant

Smart H.265+ video encoding

This XVR supports both H.264 Standard and H265+ Standard for video compression!

Includes AI CODING functionality.

Questo DVR presenta 16 canali

Recording resolution:

Up to 2 IP channels Up to 6MP

16 channels Analog 1080P.

Interfaccia grafica Dahua

Dahua has released the new 4.0 graphical interface!

GUI-XVR 4.0:

After more than a year of design and development, the next generation GUI, XVR4.0, has been released.

Beautiful and simple, XVR4.0 ensures a perfect display.

The color schemes, flat interface, and visual icons present a user-friendly experience.

Integrated function modules and logic to simplify user operation and improve product competitiveness

Nuova interfaccia dahua 4.0

Questo DVR supporta telecamere per la videosorveglianza

It supports cameras from various brands: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung,Sanyo, Sony, Videotec, Vivotek, and others...

(operation with the models proposed here is to be checked on a case-by-case basis)

Questo DVR supporta la funzione Cloud 2P2 proprietario Dahua

This XVR features Cloud p2p function via:

EASYVIEWER and DMSS

Cloud P2P App DMSS Dahua

Compatibile con Hard Disk SATA Audio/Video AV-GP

Supports 2x Audio / Video SATA Hard Drives up to 16TB ( NOT INCLUDED! )


CAUTION: Use specific audio/video discs on DVR systems.
For more information, read our dedicated article .

Questo DVR presenta 2 porte USB This DVR features 2x USB Port ( 2x USB 2.0 )
Questo DVR presenta 1 ingresso HDMI This DVR features 1x HDMI port.

VGA output

Questo DVR presenta ingressi / uscite audio This XVR features 1 Audio : 1 RCA channel and up to 16 BNC (coaxial) channels
1 RJ45 port ( 100M )
1 RS 485 port for PTZ commands (remotely controllable cameras)
Dynamic DNS: permette di raggiugere il DVR anche in caso di IP Dinamico Dynamic DNS: allows you to reach the device even in case of dynamic IP
In caso di eventi (offuscamento telecamera, taglio segnale, motion, disco rotto, problemi di rete etc...), è in grado di inviare una segnalazione via email,una notifica sonora oppure caricare video & screeshot tramite FTP This video recorder has email sending.
In case of events (camera obfuscation, signal cut, motion, broken disk, network problems etc ...), it is able to send an email notification, a sound notification or upload video & screeshot via FTP
Funzione Motion. La registrazione parte nel momento in cui la telecamera rileva movimento. Motion function. Recording starts when the camera detects movement.
Questo DVR presenta garanzia italiana 24 mesi

This product is covered by a 24 month guarantee.

Data sheet

XVR4216AN-I

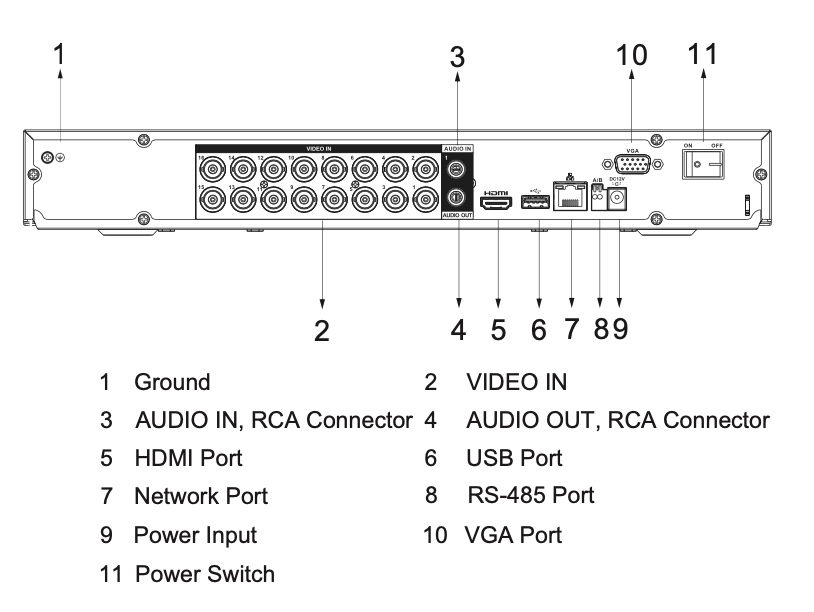

Audio Outputs

1-channel RCA

Two-way Talk

Yes (share the same audio input with the first channel)

HDD Interface

2 SATA ports, up to 16TB. The maximum HDD capacity varies with environment temperature.

RS-485

1 port, for PTZ control

USB

2 USB ports (USB 2.0)

HDMI

1

VGA

1

Network Port

1 (10/100Mbps Ethernet port, RJ-45)

General

Power Supply

12VDC, 4A

power consumption

<10W

Net Weight

1.61kg (3.55lbs)

Gross Weight

2.86kg (6.30lbs)

Product Dimensions

375.0 mm × 289.4 mm × 53.0 mm (14.76" × 11.39" × 2.09") (W × D × H)

Packaging Dimensions

433.0 mm× 366.0 mm × 141.0 mm (17.05" × 14.41" × 5.55" ) (W× D× H)

Operating Temperature

–10°C to +55°C (+14°F to +131°F)

Operating Humidity

0%–90% (RH)

Installation

Desktops

Certifications

FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN50130; EN 55024

Further details

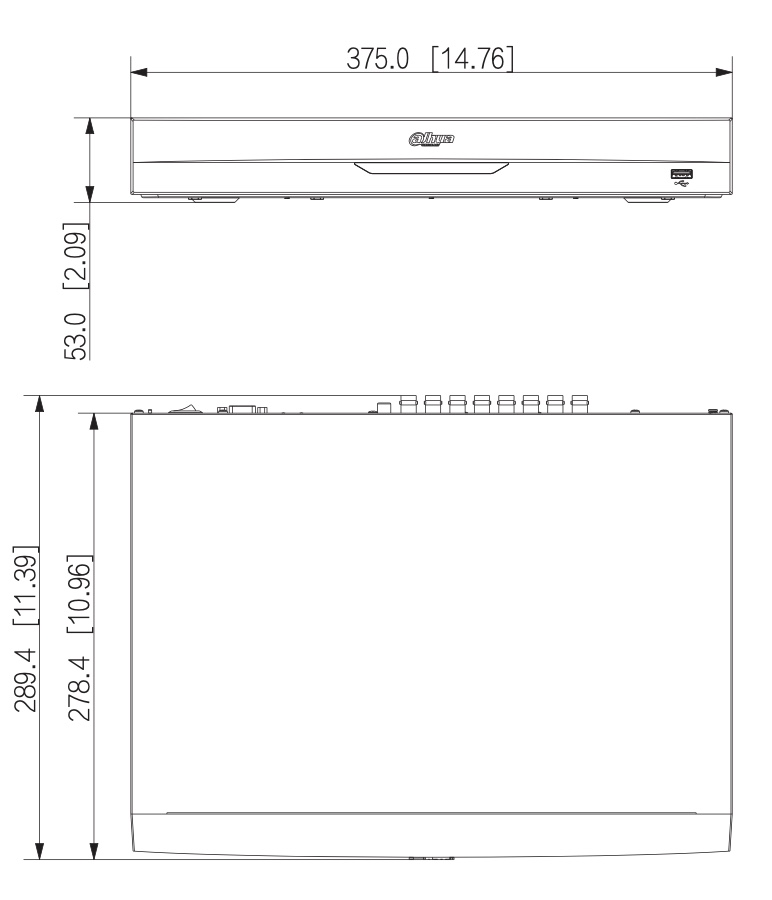

Schema XVR 16 Canali Dahua serie X 1080N
