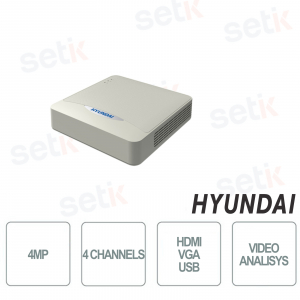

Hyundai HYU-525N NVR 4 Channel IP NVR with resolution up to 4 MP 4Megapixel , 40Mbps bandwidth, Video compression up to H.265 +, 1 HDMI, 1 VGA, 2USB, Cloud P2P, max 1 SATA 3.5 Hard Disk "6TB, Video Analysis: line crossing, intrusion detection, 12V DC power supply, Hyundai Security
HYUNDAI NVR 4 CHANNEL IP RECORDER 4 MEGAPIXEL 60MBPS - VIDEO ANALYSIS - H.265 + - P2P

Resolution 4 MP 4megapixel - Max 60Mbps bandwidth
Compression H.265 + / HDMI - VGA - 2USB - Video Analysis: line crossing, intrusion detection
Cloud P2P - 3.5 "SATA Hard Disk (Max 6TB - not included)
Product details

![]() ![]() |
This NVR provides compression standards up to H.265 + H.265 +: What are the benefits? - Up to 90% savings on bandwidth - Reduction of storage space - Longer recording times on analog surveillance systems with the same storage space. |
![]() |
4 Channels with up to 4Megapixel resolution! Max 60Mbps bandwidth |
![]() |
![]()
|
![]() |
Supports 1x SATA Audio / Video AV-GP SATA 3.5 "Hard Disk, up to 6TB HARD DISK NOT INCLUDED
|
![]() |
Supports multiple IP camera VCA (from English, Video Content Analytics) events Line crossing / intrusion |
|
This NVR features 1x HDMI port (up to 1080P) as well as the VGA Simultaneous VGA and HDMI video output with resolution up to 1920x1080 |
![]() |
This NVR features 2x USB 2.0 ports |
![]() |
This NVR has 1 RJ45 port (10/100) |
![]() |
This recorder features multilingual menus |
![]() |
This product is covered by a 3 Year Warranty! |
Data sheet
Model: NVR | HYU-525N |
SYSTEM | |
Input | 4 IP camera input |
Input bandwidth |
40Mbps |
Output bandwidth |
60Mbps |
Video output |
VGA and HDMI video output with 1920x1080 resolution |
Video Analysis | Supports line crossing and intrusion detection |
Automatic search | Automatic search, modification and adding of IP cameras after turning on the NVR |
Remote connection | 16 |
RECORDING | |
Video compression | H.265 + / H.265 / H.264 + / H.264 |
Resolution | 4MP, 3MP, 1080P, 1.3MP, UXGA, 720P, VGA, D1 / 4CIF, DCIF, 2CIF, CIF, QCIF |
Frames per second |
25 fps |
DECODING | |
Display and playback resolution |
4MP, 3MP, 1080P, UXGA, 720P, VGA, D1 / 4CIF, DCIF, 2CIF, CIF, QCIF |
Synchronous playback | 4 channel synchronized playback |
NETWORK | |
Ethernet | Ethernet RJ45 (10 / 100M) auto-adaptive |
Compatibility | P2P, DDNS |
STORAGE | |
SATA ports | 1x SATA for 1 HDD (not included) |
Capacity | Max. 6TB per HDD |
AUXILIARY INTERFACE | |
USB | 2x USB 2.0 |
GENERAL | |
Power Supply | 12V DC, 1.5A |
Consumption | <10W (without HDD) |
Working Temperature | -10 ° C ~ + 55 ° C |
RH | 10% ~ 90% RH |
Dimensions | 200 (L) x 48 (H) x 200 mm |
Weight | 1kg |
Further details
