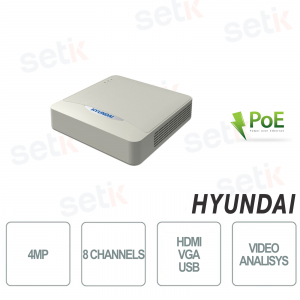

NVR Hyundai Recorder 4 MP 8 Channels Video Analysis PoE 60Mbps

NVR Hyundai Recorder 4 MP 8 Channels Video Analysis PoE 60Mbps

Hyundai HYU-524N NVR 8 Channel IP NVR with resolution up to 4 MP 4Megapixel , 60Mbps bandwidth, Video compression up to H.265 +, Poe +, 1 HDMI, 1 VGA, 2USB, Cloud P2P , Video Analysis: line crossing, intrusion detection, max 1 SATA 3.5 "6TB Hard Disk, 48 V DC power supply, Hyundai Security

Reference: HYU-524N

Brand: Hyundai Security

EAN:

FIND INSTALLER

€348.82

taxes included
Tax included
  Hurry up! Only a few pieces left in our warehouse!
 Last items in stock
discover the available quantity


Hyundai Security

HYUNDAI NVR 8 CHANNEL IP RECORDER 4 MEGAPIXEL 60MBPS - VIDEO ANALYSIS - H.265 + - P2P

Hyundai Security
NVR 8 IP Channels - Hyundai
Resolution 4 MP 4megapixel - Max 60Mbps bandwidth - PoE +
Compression H.265 + / HDMI - VGA - 2USB - Video Analysis: line crossing, intrusion detection
Cloud P2P - 3.5 "SATA Hard Disk (Max 6TB - not included)

Product details

This NVR has 8 PoE + ports (IEEE802.3at / af)

H265+ Video Compressione
This NVR provides compression standards up to H.265 +

H.265 +: What are the benefits?

- Up to 90% savings on bandwidth

- Reduction of storage space

- Longer recording times on analog surveillance systems with the same storage space.

Standard di Video Compressione H.265+

Questo DVR presenta 8 canali

8 Channels with up to 4Megapixel resolution!

Max 60Mbps bandwidth

Questo dvr supporta la funzione Cloud
  • Possibility of management and viewing from Smartphone "P2P installation", through Hyundai HYU-connect application (iOs and Android).
applicazione hyundai hyu-connect
  • Network configuration via free cloud (www.hdcvi.hyundai-security.es - Manageable from the HYUVMS App).

applicazione hyuvms

HD Hard Disk

Supports 1x SATA Audio / Video AV-GP SATA 3.5 "Hard Disk, up to 6TB

ATTENTION: use specific audio / video discs on NVR systems.
For more information, read our dedicated article.

HARD DISK NOT INCLUDED



Video Content analsysis

Support multiple VCA events of IP cameras

Line crossing / intrusion

Questo DVR presenta 1 ingresso HDMIUscita VGA

This NVR features 1x HDMI port (up to 1080P) as well as the VGA

Simultaneous VGA and HDMI video output with resolution up to 1920x1080

Porta USB IN This NVR features 2x USB 2.0 ports
Questo DVR presenta 2 porte RJ-45 ( 10 / 100 / 1000Mbps) This NVR has 1 RJ45 port (10/100)
Menu multilingua

This recorder features multilingual menus

Garanzia 3 anni This product is covered by a 3 Year Warranty!

Data sheet

Model: NVR HYU-524N
SYSTEM
Input 8 IP camera input
Input bandwidth

60Mbps

Output bandwidth

60Mbps

Video output

VGA and HDMI video output with 1920x1080 resolution

Video Analysis Supports line crossing and intrusion detection
Automatic search Automatic search, modification and adding of IP cameras after turning on the NVR
Remote connection 16
RECORDING
Video compression H.265 + / H.265 / H.264 + / H.264
Resolution 4MP, 3MP, 1080P, 1.3MP, UXGA, 720P, VGA, D1 / 4CIF, DCIF, 2CIF, CIF, QCIF
Frames per second

25 fps

DECODING
Display and playback resolution

4MP, 3MP, 1080P, UXGA, 720P, VGA, D1 / 4CIF, DCIF, 2CIF, CIF, QCIF

Synchronous playback 8 channel synchronized playback
NETWORK
Ethernet Ethernet RJ45 (10 / 100M) auto-adaptive
Compatibility PoE +, P2P, DDNS
STORAGE
SATA ports 1x SATA for 1 HDD (not included)
Capacity Max. 6TB per HDD
AUXILIARY INTERFACE
USB 2x USB 2.0
GENERAL
Power Supply 48V DC, 1A
Consumption <10w without="" hdd="" td="">
Maximum PoE consumption 75W
Working Temperature -10 ° C ~ + 55 ° C
RH 10% ~ 90% RH
Dimensions 285 (L) x 48 (H) x 210 mm
Weight 1kg

Further details

No additional details

Download

Download the English brochure (not available)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
