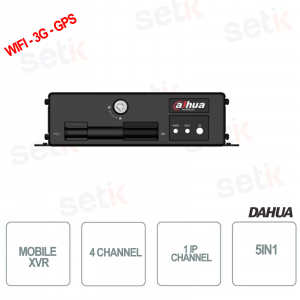

Xvr mobile 5in1 4 channels hdcvi / ahd / tvi / cvbs + 1 ip - 3G - WIFI - GPS Dahua

Xvr mobile 5in1 4 channels hdcvi / ahd / tvi / cvbs + 1 ip - 3G - WIFI - GPS Dahua
-56%

XVR Mobile MXVR1004-GCW Dahua XVR 4-Channel Video Recorder 5 technologies in 1 HDCVI / AHD / TVI / CVBS / IP + 1 IP 4MP channels, resolution up to 1080p. Video compression up to Smart H.265 MXVR . GPS, 3G, WIFI , Video Out: 2 TVs. Backup Mode: External USB, Network Backup. Two-way Audio, 7 Alarm inputs / 2 outputs. Support 2 SD card slots. 2 USB 2.0. 1 RJ45, 1 RS485, 1 RS232. Dahua Technology



Reference: MXVR1004-GCW

Brand: Dahua

FIND INSTALLER

€474.53

€1,078.48 -56%
taxes included
Tax included
 Available in 5 days
 starting

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


XVR MOBILE 4 CHANNELS 5IN1 HDCVI / HDTVI / AHD / CVBS / IP - 1 CHANNELS IP - GPS - WIFI - 3G - 1080P - AUDIO - ALARM - DAHUA

Prodotto Marca Dahua XVR Mobile Surveillance Recorder 4 Channels + 1 Channels IP - 5in1 - Dahua
5 technologies in 1: "Hdcvi / Hdtvi / Ahd / Cvbs / Ip" - GPS - WIFI - 3G - Resolution up to 1080p
Backup Mode: External USB, Network Backup, Video Compression up to Smart H.265 - 2 TVs - 2 USB 2.0 - 1 RJ45 - 1 RS485 - 1 RS232 - 2 SD card slot
Alarm - Two -way Audio - 24 month warranty

Product details

Xvr mobile 5in1 8 canali hdcvi/ahd/tvi/cvbs + 4 ip Dahua
Articolo Blog Setik

DAHUA X SERIES

If you want to know more about this new series of Dahua XVR 5 in1 recorders , read the article we wrote!

Click here

5 Technologies in 1!
This DVR supports 5 different technologies ( HDCVI-HDTVI-AHD-CVBS-IP )
Standard ONVIF® Onvif is the most important standard in the IP world.
Being Onvif guarantees a wide range of compatible IP devices (DVRs / cameras).

This XVR supports ONVIF® version 16.12
Videoregistratore ad 4 canali

Resolutions available:

4 Channels + 1 IP channels

Questo DVR supporta telecamere per la videosorveglianza Supports cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and others ...
(operation with the models proposed here is to be verified from case to case)

VGA output with resolution up to 1080P

Questo DVR presenta ingressi / uscite audio This XVR features 1 Audio IN and 1 Audio OUT
Porta USB IN This XVR features 2x USB 2.0 ports
Questo DVR presenta 2 porte RJ-45 ( 10 / 100 / 1000Mbps) This XVR features 1 RJ45 port
Porta RS485 1 RS 485 for PTZ controls (remotely controllable cameras)
Questo prodotto è coperto da garanzia 24 mesi italiana

This product is covered by a 24 month warranty.

Data sheet

Model: XVR MXVR1004-GCW
System
Main Processor Embedded Processor
Operating System Embedded LINUX
Video
Input 4 channels HDCVI / AHD / TVI / CVBS (Don't support audio in when connecting AHD / TVI / CVBS cameras) + 1 channel 4MP IPC
Two Way Talk 1 channel
Display
Interface 2 TV (1 aviation connector)
Resolution 800 × 600
Split display 1/4/6
Privacy Masking 4 rectangular zones (each camera)
OSD Channel name, time, GPS, license No
Recording
Video Compression H.265 / smart H.265 /H.264/smart H.264
Audio Compression G.711A / G.711U / PCM
Resolution 4 ch @ 1080P realtime recording
Record Mode Manual, Schedule (Regular (Continuous), MD, Alarm), Stop
Record Interval 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Alarm, Email, FTP, Buzzer & Screen tips
Video Detection Motion Detection, MD Zones: 396 (PAL: 22 × 18, NT SC: 22 × 15), Video Loss & Tampering
Alarm input 7 channels, Alarm 1-Alarm 6 are the local alarm inputs. Alarm 7 is pulse input.
Alarm Output 2 channels, 1 relay out, 1 Controllable 12V out
Playback and Backup
Playback 1 channel
Search Mode Time / Date, Alarm, Motion Detection & Exact search (accurate to second)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Device / Network
Storage
SD card 2 SD cards, Up to 256 GB each
Network
Ethernet RJ-45 Port (10 / 100Mbps)
Wireless Network Built-in 3G / 4G / Wi-Fi module (optional)
GPS Built-in high accurate GPS module (optional)
Network Function TCP / IP, UDP, DHCP, FTP, Email, Alarm Server
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Auxiliary Interface
USB 2 USB 2.0
RS232 1 Ports
RS485 1 Port
Heater Optional
Electrical
Power Supply DC 6V ~ 36V
Power Consumption 6.7W (Without SD card)
Enviromental
Operating Conditions -30 ° C ~ + 70 ° C (-22 ° F ~ + 158 ° F)
Storage Conditions 10 ~ 90% RH
Construction
Dimensions

138mm × 160mm × 49mm (5.4 "x 6.3" x 1.9 ")

Net Weight 0.97Kg (2.13 lb)
Gross Weight 1.75Kg (3.86 lb)
Certifications
THERE IS FCC
EN50155 ISO16750

Further details

Currently not available

Download

Download the Brochure Currently Not Available
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
