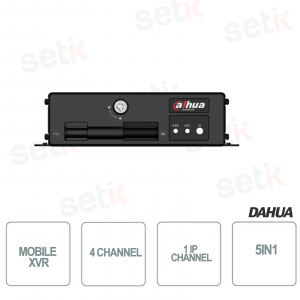

Mobile Video Dahua MXVR1004 XVR XVR 4 Channels 5 in 1 HDCVI technologies / AHD / TVI / CVBS / IP + 1 IP Channel 4 MP, resolution up to 1080p. Video compression up to Smart H.265 MXVR . Video output: 2 TVs. Backup Mode: External USB, Network Backup. Two-way Audio, 7 Alarm inputs / 2 outputs. Support 2 SD card slots. 2 USB 2.0. 1 RJ45, 1 RS485, 1 RS232. Dahua Technology
FIND INSTALLER
https://www.setik.biz/en/recording-devices/7326-dahua-mxvr1004-xvr-mobile-5in1-4-channels-hdcvi-ahd-tvi-cvbs-1-ip-dahua.html
€213.65
€485.56 -56%
taxes included
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
XVR MOBILE 4 CHANNELS 5IN1 HDCVI / HDTVI / AHD / CVBS / IP - 1 CHANNELS IP - 1080P - AUDIO - ALARM - DAHUA
XVR Mobile Surveillance Recorder 4 Channels + 1 Channels IP - 5in1 - Dahua5 technologies in 1: "Hdcvi / Hdtvi / Ahd / Cvbs / Ip" - Resolution up to 1080p
Backup Mode: External USB, Network Backup, Video Compression up to Smart H.265 - 2 TVs - 2 USB 2.0 - 1 RJ45 - 1 RS485 - 1 RS232 - 2 SD card slot
Alarm - Two -way Audio - 24 month warranty
Product details
 |
DAHUA X SERIES If you want to know more about this new series of Dahua XVR 5 in1 recorders , read the article we wrote! |
 |
5 Technologies in 1! This DVR supports 5 different technologies ( HDCVI-HDTVI-AHD-CVBS-IP ) |
 |
Onvif is the most important standard in the IP world. Being Onvif guarantees a wide range of compatible IP devices (DVRs / cameras). This XVR supports ONVIF® version 16.12 |
 |
Resolutions available: 4 Channels + 1 IP channels |
 |
Supports cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and others ... (operation with the models proposed here is to be verified from case to case) |
 |
VGA output with resolution up to 1080P |
 |
This XVR features 1 Audio IN and 1 Audio OUT |
 |
This XVR features 2x USB 2.0 ports |
 |
This XVR features 1 RJ45 port |
 |
1 RS 485 for PTZ controls (remotely controllable cameras) |
 |
This product is covered by a 24 month warranty. |
Data sheet
| Model: XVR | MXVR1004 |
| System | |
| Main Processor | Embedded Processor |
| Operating System | Embedded LINUX |
| Video | |
| Input | 4 channels HDCVI / AHD / TVI / CVBS (Don't support audio in when connecting AHD / TVI / CVBS cameras) + 1 channel 4MP IPC |
| Two Way Talk | 1 channel |
| Display | |
| Interface | 2 TV (1 aviation connector) |
| Resolution | 800 × 600 |
| Split display | 1/4/6 |
| Privacy Masking | 4 rectangular zones (each camera) |
| OSD | Channel name, time, GPS, license No |
| Recording | |
| Video Compression | H.265 / smart H.265 /H.264/smart H.264 |
| Audio Compression | G.711A / G.711U / PCM |
| Resolution | 4 ch @ 1080P realtime recording |
| Record Mode | Manual, Schedule (Regular (Continuous), MD, Alarm), Stop |
| Record Interval | 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec |
| Video Detection and Alarm | |
| Trigger Events | Recording, PTZ, Tour, Alarm, Email, FTP, Buzzer & Screen tips |
| Video Detection | Motion Detection, MD Zones: 396 (PAL: 22 × 18, NT SC: 22 × 15), Video Loss & Tampering |
| Alarm input | 7 channels, Alarm 1-Alarm 6 are the local alarm inputs. Alarm 7 is pulse input. |
| Alarm Output | 2 channels, 1 relay out, 1 Controllable 12V out |
| Playback and Backup | |
| Playback | 1 channel |
| Search Mode | Time / Date, Alarm, Motion Detection & Exact search (accurate to second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
| Backup Mode | USB Device / Network |
| Storage | |
| SD card | 2 SD cards, Up to 256 GB each |
| Network | |
| Ethernet | RJ-45 Port (10 / 100Mbps) |
| Wireless Network | Built-in 3G / 4G / Wi-Fi module (optional) |
| GPS | Built-in high accurate GPS module (optional) |
| Network Function | TCP / IP, UDP, DHCP, FTP, Email, Alarm Server |
| Max. User Access | 128 users |
| Smart Phone | iPhone, iPad, Android |
| Auxiliary Interface | |
| USB | 2 USB 2.0 |
| RS232 | 1 Ports |
| RS485 | 1 Port |
| Heater | Optional |
| Electrical | |
| Power Supply | DC 6V ~ 36V |
| Power Consumption | 6.7W (Without SD card) |
| Enviromental | |
| Operating Conditions | -30 ° C ~ + 70 ° C (-22 ° F ~ + 158 ° F) |
| Storage Conditions | 10 ~ 90% RH |
| Construction | |
| Dimensions |
138mm × 160mm × 49mm (5.4 "x 6.3" x 1.9 ") |
| Net Weight | 0.97Kg (2.13 lb) |
| Gross Weight | 1.75Kg (3.86 lb) |
| Certifications | |
| THERE IS | FCC |
| EN50155 | ISO16750 |
