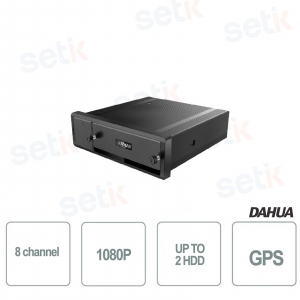

XVR MXVR6212-G Dahua XVR 8 -channel video recorder 5 technologies in 1 HDCVI / AHD / TVI / CVBS + 4 IP channels, resolution up to 1080p. Video compression up to Smart H.264 . Video outputs: 1 VGA and 2 TVs. Equipped with GPS . Two-way Audio, 9 Alarm inputs / 2 outputs. Support 2 HDDs and 1 SD card slot. 3 USB, 1 RJ45, 2 RS485, 2 RS232. Dahua Technology
FIND INSTALLER
€925.98
€2,104.50 -56%LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
XVR 8 CHANNELS 5IN1 HDCVI / HDTVI / AHD / CVBS / + 4 CHANNELS IP 1080P - GPS - AUDIO - ALARM - DAHUA
Surveillance recorder 8 channels 5in1 + 4 channels IP - Dahua5 technologies in 1: "Hdcvi / Hdtvi / Ahd / Cvbs / Ip" - Resolution up to 1080p - GPS
Video Compression up to Smart H.264 - 1 VGA - 2 TV - 3 USB 3.0 - 1 RJ45 - 2 RS485 - 2 RS232 - 2 HDD - 1 SD card slot
Alarm - Two -way Audio - 24 month warranty
Product details
 |
DAHUA X SERIES If you want to know more about this new series of Dahua XVR 5 in1 recorders , read the article we wrote! |
 |
5 Technologies in 1! This DVR supports 5 different technologies ( HDCVI-HDTVI-AHD-CVBS-IP ) |
 |
Resolutions available: 8 Channels + 4 IP channels up to 1080P |
 |
Supports cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and others ... (operation with the models proposed here is to be verified from case to case) |
 |
Support 2x SATA Hard Disk
|
 |
VGA output with resolution up to 1080P |
 |
This XVR features 1 Audio IN and 1 Audio OUT |
 |
This XVR features 3x USB ports |
 |
This XVR features 1 RJ45 port |
 |
2 RS 485 for PTZ controls (remotely controllable cameras) |
 |
This product is covered by a 24 month warranty. |
Data sheet
| Model: XVR | MXVR6212-G |
| System | |
| Main Processor | Embedded Processor |
| Operating System | Embedded LINUX |
| Video | |
| Input | 8 + 4 channel |
| Standard |
Analog: NTSC, PAL |
| Audio | |
| Input | 8 channels aviation connector + 2 channels pickup |
| Output | 1 channel aviation connector + 1 channel audio talk |
| Two-way talk | 1 channel Input, 1 channel Output |
| Display | |
| Interface | 1VGA, 2TV |
| Resolution | 1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768, 800 × 600 |
| Split display | 1/4/8/9/12 |
| Privacy Masking | 4 rectangular zones (each camera) |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Recording | |
| Video / Audio Compression | smart264 / H.264 / G.711 |
| Record Rate |
Main stream: 12 ch @ 1080P (1 ~ 25 / 30fps) |
| Bit Rate | 48 ~ 8192Kb / s |
| Record Mode | Manual, Schedule (Regular (Continuous), MD, Alarm), Stop |
| Record Interval | 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Postrecord: 10 ~ 300 sec |
| Video Detection and Alarm | |
| Trigger Events | Recording, PTZ, Tour, Alarm, Email, FTP, Buzzer & Screen tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss & Camera Blank |
| Alarm input | 9 channels, Alarm 1–7 represent local alarm input; 8 and 9 represent pulse input. |
| Alarm output | 2 channels, 1 relay out, 1 Controllable 12V out |
| Playback and Backup | |
| Playback | 4 |
| Search Mode | Time / Date, Alarm, Motion Detection & Exact search (accurate to second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
| Backup Mode | USB Device / Network |
| Storage | |
| Internal HDD | 2 HDD |
| SD card | 1 SD card |
| Network | |
| Ethernet | RJ-45 Port (10 / 100Mbps) |
| GPS | Built-in high accurate GPS module ( optional ) |
| Network Function | TCP / IP, UDP, DHCP, DDNS, FTP, Email, Alarm Server |
| Max. User Access | 128 users |
| Smart Phone | iPhone, iPad, Android |
| Auxiliary Interface | |
| USB | 3 Ports (1 rear), 2 USB 3.0 |
| RS232 | 2 Ports, for PC Communication and Keyboard |
| RS485 | 2 Ports, for PTZ Control |
| CAN | Support |
| Heater | Optional |
| Electrical | |
| Power Supply | DC 6V ~ 36V |
| Power Consumption | <12W (Without HDD) |
| Enviromental | |
| Operating Conditions | -30 ° C (with heater) ~ + 60 ° C (+ 14 ° F ~ + 131 ° F) |
| Storage Conditions | 30 ° C ~ + 70 ° C (-4 ° F ~ + 158 ° F), 0 ~ 90% RH |
| Construction | |
| Dimensions |
180mm × 190mm × 50mm (7.0 "x 8.7" x 2.0 ") |
| Net Weight | 2.65kg (whole package) |
| Certifications | |
| THERE IS | FCC |
| EN50155 | ISO16750 |
