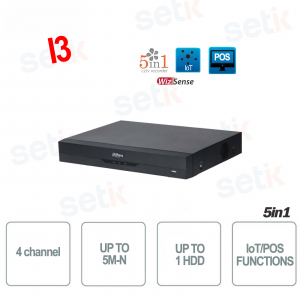

WizSense XVR5104H-I3 Dahua XVR 4-Channel Video Recorder with 5 technologies in 1 HDCVI + AHD + TVI + CVBS + IP, resolution up to 5M-N / 1080P and video compression up to AI Coding, H.265 + .1 VGA and 1 HDMI , 2 USB Ports, RS485, Support 1 SATA Hard Disk up to 6TB, 1 Input + 1 Audio Output. Video Analysis and Face Detection, IoT & POS support. Version I3
FIND INSTALLER
€122.98
€292.80 -58%PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
XVR 4 CHANNELS 5IN1 "HDCVI / TVI / AHD / CVBS / IP" 5M-N / 1080P - WIZSENSE - R PERIMETER PROTECTION - FACE DETECTION - VERSION I3 - DAHUA
4-Channel Surveillance Recorder - Dahua5 technologies in 1: "HDCVI / TVI / AHD / CVBS / IP" - 5M-N / 1080P
Video Compression up to H.265 + / 1 HDMI - 1 VGA - 2 USB (2.0) - Audio - RS485 - 1HDD up to 6TB!
Video Analysis and Face Detection - Perimeter Protection - SMD Plus - AI Coding - IOT & Pos - 24 month warranty
Product details
|
|
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt an independent AI chip and deep learning algorithm. It focuses on people and vehicles with high accuracy, allowing users to act quickly on defined goals. Based on Dahua's advanced technologies, WizSense provides smart and simple products. New XVR XVR5000-I2 series, equipped with SMD Plus on all channels to benefit customers from AI upgrade. The series is designed to reduce false alarm rates and human vigilance costs, thus bringing great value to customers looking for accurate human / vehicle alarm products, to increase the security level of various indoor and outdoor facilities. AI search: Supports people and vehicle metadata search. It supports uploading face images to the NVR and compares them with similar ones already registered by the NVR. It allows operators to search quickly and easily across various channels and efficiently find out when and where a subject is present. |
 |
5 Technologies in 1! This DVR supports 5 different technologies ( HDCVI-TVI-AHD-CVBS-IP ) |
 |
Onvif is the most important standard in the IP world. Being Onvif guarantees a wide range of compatible IP devices (DVRs / cameras). This XVR supports ONVIF® version 16.12 |
  |
This XVR provides compression standards up to H.265 + H.265 +: What are the benefits? - Up to 90% savings on bandwidth - Reduction of storage space - Longer recording times on analog surveillance systems with the same storage space.
|
 |
Possibility of connecting POS devices, obtaining all the information superimposed on the channel. Possibility of searching pos by date or transaction
|
 |
Internet Of Things (IoT): Possibility of connecting wireless external sensors, such as panic buttons, via AirFly PFM871A-N1 key or cameras with already integrated gateway
IoT Manager: - Real Time View: Monitor and preview all IoT information in real time - IoT information search: Detailed IoT information and videos corresponding to an access point search - Sensor manager: includes sensor pairing, IoT device status and configurations
|
 |
Resolutions available: HDCVI camera: 5MP, 4MP, 1080p @ 25/30 fps, 720p @ 50/60 fps, 720p @ 25/30 fps |
 |
Supports cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and others ... (operation with the models proposed here is to be verified from case to case) |
|
|
This VCR supports Video Analysis (IVS), Face Detection, Intelligent Search (Smart Search) VIDEO ANALYSIS (IVS) - Line crossing - Intrusion - Human / Vehicle Secondary Recognition |
 |
Supports 1x 3.5 "SATA Audio / Video Hard Disk up to 6TB!
|
 |
HDMI port with resolution " 1920 × 1080; 1280 × 1024; 1280 × 720 " |
 |
VGA output with resolution up to "1920 × 1080, 1280 × 1024, 1280 × 720" |
 |
This XVR features 1 Audio IN and 1 Audio OUT RCA |
 |
This XVR features 2x USB ports (2 USB 2.0) |
 |
This XVR features 1 RJ45 port (100MB) |
 |
RS-485 for PTZ commands (remotely controllable cameras) |
 |
Dynamic DNS: allows you to reach the DVR even in case of Dynamic IP |
 |
Ability to have the disk overwrite when full or have the disk overwrite after X days. DVR restart programming to ensure greater stability over time |
 |
This DVR has email sending. |
 |
Motion function. Recording starts when the camera detects motion. |
 |
This product is covered by a 24 month warranty. |
Data sheet
| Model: DVR | XVR5104H-I3 |
| SYSTEM | |
| Main Processor | Embedded processor |
| Operating System | Embedded linux |
| PERIMETER PROTECTION | |
| Performance | 1 channel, 10 IVS for each channel |
| Object classification | Human / Vehicle secondary recognition for tripwire and intrusion |
| AI Search | Search by target classification (Human, Vehicle) |
| FACE RECOGNITION | |
| Performance | Max 8 face pictures / sec processing 1 channel video stream face recognition, only support analog camera |
| Stranger Mode | Detect strangers' faces (not in device's face database). Similarity threshold can be set manually |
| AI Search | Up to 8 target face images search at same time, similarity threshold can be set for each target face image |
| Database Management | Up to 10 face databases with 10,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries®ions and state can be added to each face picture |
| Database Application | Each database can be applied to video channels independently |
| Trigger Events | Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc. |
| SMD PLUS | |
| Performance | 4 channels |
| AI Search |
Search by target classification (Human, Vehicle) |
| VIDEO AND AUDIO | |
| Analog Camera Input | 4 channels, BNC |
| HDCVI Camera Input | 5MP, 4MP, 1080p @ 25/30 fps, 720p @ 50/60 fps, 720p @ 25/30 fps |
| AHD Camera Input | 5MP, 4MP, 1080p @ 25/30 fps, 720p @ 25/30 fps |
| TVI Camera Input | 5MP, 4MP, 1080p @ 25/30 fps, 720p @ 25/30 fps |
| CVBS Camera Input | PAL / NTSC |
| IP Camera Input | 4 + 2 channels, each channel up to 6MP |
| Audio In / Out | 1/1, RCA |
| Two-way Talk | Reuse audio in / out, RCA |
| RECORDING | |
| Compression | AI Coding / H.265 + / H.265 / H.264 + / H.264 |
| Resolution | 5M-N; 4M-N; 1080P; 1080N; 720P; 960H; D1; CIF |
| Record Rate | Main stream: All channel 5M-N (1 fps – 10 fps); 4M-N / 1080p (1 fps – 15 fps); 1080N / 720p / 960H / D1 / CIF (1 fps – 25/30 fps) Sub stream: D1 / CIF (1 fps – 15 fps) |
| Bit Rate | 32 Kbps – 6144 Kbps Per Channel |
| Record Mode | Manual; Schedule (General, Continuous); MD (Video detection: Motion Detection, Video Loss, Tampering); Alarm; Stop |
| Record Interval | 1 min– 60 min (default: 60 min), Pre-record: 1 s – 30 s, Post-record: 10 s – 300 s |
| Audio Compression | G.711A; G.711U; PCM |
| Audio Sample Rate | 8 KHz, 16 bits per channel |
| Audio Bit Rate | 64 kbps per channel |
| DISPLAY | |
| Interface | 1 HDMI, 1 VGA |
| Resolution | 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-screen Display | When IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/6 |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| NETWORK | |
| Interface | 1 RJ-45 Port (100MB) |
| Network Function | HTTP; HTTPS; TCP / IP; IPv4 / IPv6; Wifi; 3G / 4G; SNMP; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; P2P; IP Search (Supports Dahua IP camera, DVR, NVS, etc.) |
| Max. User Access | 128 users |
| Smart Phone | iPhone, iPad, Android |
| Interoperability | ONVIF® 16.12, CGI Conformant |
| VIDEO DETECTION AND ALARM | |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis |
| Alarm input | N / A |
| Relay Output | N / A |
| PLAYBACK AND BACKUP | |
| Playback | 1/4 |
| Search Mode | Time / Date, Alarm, MD and Exact Search (accurate to second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
| Backup Mode | USB Device / Network |
| STORAGE | |
| Internal HDD | 1 SATA port, up to 6 TB capacity |
| eSATA | N / A |
| AUXILIARY INTERFACE | |
| USB | 2 USB Ports (USB 2.0) |
| RS485 | 1 Port, for PTZ Control |
| RS232 | N / A |
| ELECTRICAL | |
| Power Supply | DC 12V / 1.5A |
| Power Consumption (Without HDD) | <4W |
| CONSTRUCTION | |
| Dimensions | Mini 1U, 325.0 mm × 256.6 mm × 55.0 mm (12.80 '' × 10.10 '' × 2.17 '') |
| Net Weight (without HDD) | 1.29 kg (2.85 lb) |
| Gross Weight | 1.74 kg (3.84 lb) |
| Installation | Desktop installation |
| ENVIRONMENTAL | |
| Operating Conditions |
-10 ° C to + 45 ° C (+ 14 ° F to + 113 ° F), 0% –90% (RH) |
| Storage Conditions |
-20 ° C to + 70 ° C (-4 ° F to + 158 ° F), 0% –90% (RH) |
| Third-party Support | |
| Third-party Support | Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more |
| CERTIFICATIONS | |
| Certifications | FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1 / IEC 60950-1 CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN 50130; EN 55024 |
