nvr mobile ip 4 channels poe 4mp gps 3g / 4g wifi dahua

nvr mobile ip 4 channels poe 4mp gps 3g / 4g wifi dahua
-56%

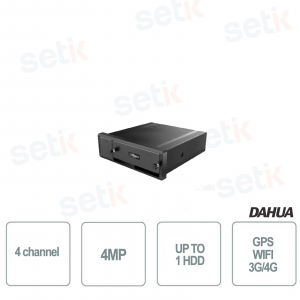

MNVR4104-GCW Dahua Mobile NVR IP video recorder for surveillance, 4 PoE IP channels up to 4 Megapixel in real time. Incorporates GPS, 3G / 4G and WIFI . Video Compression up to Smart H.265. 1 VGA, 1 HDMI, 2 TV, 3 USB 2.0, 3 RS232, 2 RS485. Two-way audio, 9 in / 2 out Alarm. Up to 1 SATA HDD, SD card slot up to 256GB. Dahua Technology



Reference: MNVR4104-GCW

Brand: Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

SSD1TB SHOCK PRICE!×


 SSD1TB SHOCK PRICE!
Same price as the NON-SSD version!
Only 100 pieces!
  Buy now >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

MOBILE IP NVR 4 CHANNELS POE UP TO 4MP IN REAL TIME! - GPS - WIFI - 3G / 4G - 1HDD - BIDIRECTIONAL AUDIO - ALARM
VERSION WITH 4 POE DOORS

Made by Dahua Nvr Mobile IP 4 PoE Channels - Dahua
4 PoE channels up to 4MP in real time! - WIFI, GPS, 3G / 4G - 1 VGA - 2 TVs - 1HDMI - Compression up to Smart H.265
Two-way audio - Alarm - Up to 1 HDD - 3 USB 2.0 - SD card up to 256GB - 3 RS232 - 2 RS485
1 LAN RJ45 10/100 Mbps - Hard Disk NOT included - 24 months warranty

Product details


NVR 4 Canali Dahua PoE 4ch 4K 8MP NVR4104HS-P-4KS2/L
Standard ONVIF® Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems.
This NVR features 4 PoE ports
4 Canali IP

4 Channels up to 4 Megapixels!

Recording resolution: 4MP in real time on all channels

PoE power supply Equipped with: 1 SATA port (Hard disk not included)

ATTENTION: use specific audio / video discs on NVR systems.
For more information, read our dedicated article.
1x RJ-45 (10 / 100Mbps)
1 RS 485 port
Porta RS232 RS 232 to communicate with PC and keyboard
IP66 WaterProof This NVR has 3x USB 2.0 ports
Questo DVR presenta ingressi / uscite audio This DVR has 1 audio input and 1 audio output
Questo DVR presenta 8 ingressi allarme e 1 uscita allarme This XVR features 9 alarm inputs / 2 alarm outputs
Warranty

This product is covered by a 24 month warranty.

Data sheet


Model: DVR MNVR4104-GCW

Dahua mobile NVR with 4 IP inputs

Integrated LINUX operating system

Video encoding H.265, Smart H.265, H.264, Smart H.264

1 VGA output, 2 TV outputs and 1 HDMI output

Aviation connectors

Two-way audio: 1 audio in / 1 out

Division of output: 1, 4

Display Resolution: SVGA (800x600)

Privacy mask with 4 rectangular zones (for each camera)

Recording resolution: 4MP in real time on all channels

1-channel playback

On-screen configuration menu

396-zone adjustable video sensor (22x18 grid)

Memory: 1 SATA port (HDD not included)

SD card slot up to 256GB (card not included)

9 alarm inputs / 2 outputs (contains 1 + 12V control)

Incorporates the 3G / 4G and WiFi communication module

Integrated high precision GPS module

RJ45 network interface (10 / 100M)

Incorporates 4 PoE ports

Network protocols: TCP / IP, UDP, DHCP, FTP, e-mail, alarm server

Remote access for up to 128 users

Compatible with iOS and Android mobile devices

3 USB 2.0 ports

3 RS232 ports

2 RS485 ports

Power range: 6V ~ 36V DC

Consumption: <10.2W (without HDD)

Operating temperature: -30 ° C ~ + 70 ° C

Relative humidity: 10% ~ 90%

Dimensions: 180 (W) x 50 (H) x 190mm

Weight: 1.92 kg (without HDD)

Certifications: CE, FCC, EN50155, ISO7637-2, ISO16750, BIS, EN45545-2
