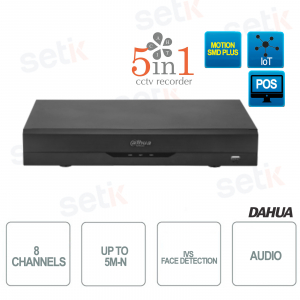

VCR DVR Dahua 8 Channel XVR technology with 5 in 1 (AHD HDCVI + + + TVI ANALOG + IP) and resolution up to 5 MN (5MP Half - more than 1080P!). Video compression up to H.265 + , VGA and HDMI, 2 USB ports, support x 1 SATA 3.5 "HDD up to 10TB! Video Analysis and facial recognition, Audio , RS485, IoT & POS. XVR5108H-I3
FIND INSTALLER
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
DVR 8-CHANNEL VIDEO RECORDER 5 TECHNOLOGIES IN 1 - UP TO 5M-N - VIDEO ANALYSIS - FACIAL RECOGNITION - DAHUA
X VR 8 Channels 5in1 - DahuaHDCVI + AHD + TVI + ANALOG + IP / Up to 5M-N
Video Compression H.265 + / Video Analysis and Facial Recognition / SMD Plus / AI Search / Audio
Up to 1 SATA 3.5 "HDD (Not included) - 24 months warranty
Product details
 |
DAHUA X SERIES If you want to know more about this new series of XVR 5 in1 Dahua recorders , read the article we wrote! |
 |
5 Technologies in 1! This DVR supports 5 different technologies ( HDCVI / AHD / TVI / ANALOG / IP ) |
 |
Onvif is the most important standard in the IP world. Being Onvif guarantees a wide range of compatible IP devices (DVRs / cameras). This XVR supports ONVIF® version 16.12 |
|
|
Smart H.265 + Smart H.265 + is the optimized implementation of the H.265 codec which uses a scene adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction useful for delivering high quality video without straining the network. Smart H.265 + greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
|
|
Recording resolution: 8 Analog Channels
|
 |
Possibility of connecting POS devices, obtaining all the information superimposed on the channel. Possibility of searching pos by date or transaction
|
 |
Internet Of Things (IoT): Possibility of connecting wireless external sensors, such as panic buttons, via AirFly PFM871A-N1 key or cameras with already integrated gateway
IoT Manager: - Real Time View: Monitor and preview all IoT information in real time - IoT information search: Detailed IoT information and videos corresponding to an access point search - Sensor manager: includes sensor pairing, IoT device status and configurations
|
 |
It supports cameras from various brands: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and others .. (operation with the models proposed here is to be verified from case to case) |
 |
This XVR features the Cloud P2P feature |
 |
Supports 1x SATA Audio / Video Hard Disk up to 10TB (NOT INCLUDED!)
|
 |
This DVR has 2x USB Port (USB 2.0) |
  |
This DVR features: Both with "1920x1080 ~ 1280x1024 ~ 1280x720" resolution |
 |
This DVR has 1 Audio IN and 1 Audio OUT |
 |
1 RJ45 port (100Mb) |
 |
1 RS 485 port for PTZ controls (remotely controllable cameras) |
 |
Dynamic DNS: allows you to reach the device even in the case of Dynamic IP |
 |
This VCR has email sending. In case of events (camera obfuscation, signal cut, motion, broken disk, network problems etc ...), it is able to send an email report, a sound notification or upload videos & screenshots via FTP |
 |
Motion function. Recording starts when the camera detects motion. |
 |
This product is covered by a 24 month warranty. |
Data sheet
| Model: DVR | XVR5108H-I3 |
| SYSTEM | |
| Main Processor | Embedded processor |
| Operating System | Embedded LINUX |
| Perimeter Protection | |
| Performance |
1 channel, 10 IVS for each channel |
| Object classification |
Human / Vehicle secondary recognition for tripwire and intrusion |
| AI Search | Search by target classification (Human, Vehicle) |
| Face Detection | |
| Performance | Max 8 face pictures / sec processing 1 channel video stream face recognition, only support analog camera |
| Stranger Mode | Detect strangers' faces (not in device's face database). Similarity threshold can be set manually |
| AI Search | Up to 8 target face images search at same time, similarity threshold can be set for each target face image |
| Database Management | Up to 10 face databases with 10,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries®ions and state can be added to each face picture |
| Database Application | Each database can be applied to video channels independently |
| Trigger Events | Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc. |
| SMD PLUS | |
| Performance | 8 channels |
| AI Search |
Search by target classification (Human, Vehicle) |
| Video and Audio | |
| Analog Camera Input | 8 channels, BNC |
| HDCVI Camera | 5MP, 4MP, 1080p @ 25/30 fps, 720p @ 50/60 fps, 720p @ 25/30 fps |
| AHD Camera | 5MP, 4MP, 1080p @ 25/30 fps, 720p @ 25/30 fps |
| TVI Camera | 5MP, 4MP, 1080p @ 25/30 fps, 720p @ 25/30 fps |
| CVBS Camera | PAL / NTSC |
| IP Camera Input | 8 + 4 channels, each channel up to 6MP |
| Audio In / Out | 1/1, RCA |
| Two-way Talk | Reuse audio in / out, RCA |
| Recording | |
| Compression | AI Coding / H.265 + / H.265 / H.264 + / H.264 |
| Resolution | 5M-N; 4M-N; 1080p; 1080N; 720p; 960H; D1; CIF |
| Record Rate | Manual; Schedule (General, Continuous); MD (Video detection: Motion Detection, Video Loss, Tampering); Alarm; Stop |
| Bit Rate | 32 kbps – 6144 kbps per channe |
| Record Mode | Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
| Record Interval | 1 min– 60 min (default: 60 min), Pre-record: 1 s – 30 s, Post-record: 10 s – 300 s |
| Audio Compression | G.711A; G.711U; PCM |
| Audio Sample Rate | 8 KHz, 16 bits per channel |
| Audio Bit Rate | 64 kbps per channel |
| Display | |
| Interface | 1 HDMI; 1 VGA |
| Resolution | 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-screen Display | When IP extension mode not enabled: 1/4/8/9 When IP extension mode enabled: 1/4/8/9/16 |
| OSD | Camera title; Time; Video loss; Camera lock; Motion detection; Recording |
| NETWORK | |
| Interface | 1 RJ-45 Port (100MB) |
| Network Function | HTTP; HTTPS; TCP / IP; IPv4 / IPv6; Wifi; 3G / 4G; SNMP; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; P2P; IP Search (Supports Dahua IP camera, DVR, NVS, etc.) |
| Max. User Access | 128 users |
| Smart Phone | iPhone, iPad, Android |
| Interoperability | ONVIF® 16.12, CGI Conformant |
| Video Detection and Alarm | |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis |
| Alarm input | N / A |
| Relay Output | N / A |
| Playback and Backup | |
| Playback | 1/4/9 It changes to 1/4 split when Face or IVS & SMD is selected in AI Mode. |
| Search Mode | Time / Date, Alarm, MD and Exact Search (accurate to second) |
| Playback Function | Play; Pauses; Stop; Rewind; Fast play; Slow Play; Next File; Previous File; Next Camera; Previous Camera; Full Screen; Repeat; Shuffle; Backup Selection; Digital Zoom |
| Backup Mode | USB Device / Network |
| Storage | |
| Internal HDD | 1 SATA Port, up to 10TB capacity |
| eSATA | N / A |
| Auxiliary Interface | |
| USB | 2 USB ports (USB 2.0) |
| RS232 | N / A |
| RS485 | 1 port, for PTZ control |
| Electrical | |
| Power Supply | DC 12V / 2A |
| Power Consumption (without HDD) | <7W |
| Construction | |
| Dimensions |
Mini 1U, 325.0 mm × 256.6 mm × 55.0 mm (12.80 '' × 10.10 '' × 2.17 '') |
| Net Weight (without HDD) |
1.19 kg (2.62 lb) |
| Gross Weight |
1.64 kg (3.61 lb) |
| Installation |
Desktop installation |
| Environmental | |
| Operating Conditions | -10 ° C to + 55 ° C (+ 14 ° F to + 131 ° F), 0% –90% (RH) |
| Storage Conditions | -20 ° C to + 70 ° C (-4 ° F to + 158 ° F), 0% –90% (RH) |
| Third-Party Support | |
| Third-party Support | Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more |
| CERTIFICATIONS | |
| Certifications | FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1 / IEC 60950-1 CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN 50130; EN 55024 |
