Wizsense XVR4116HS - I ). Support HDCVI cameras up to 1080P and IP cameras up to 6MP , 1HDMI and 1 VGA 1080p, 2 USB 2.0, RS485 for PTZ control. Support for 1HDD SATA Audio/Video (max 10TB - not included), 1 audio input + 1 audio output. ONVIF, SMD Plus compatible.
FIND INSTALLER
discover the available quantity
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
WIZSENSE | XVR DAHUA DVR 16 CHANNELS HYBRID PENTA-BRID [HDCVI/AHD/TVI/ANALOG/IP] - AI CODING - UP TO 1080N

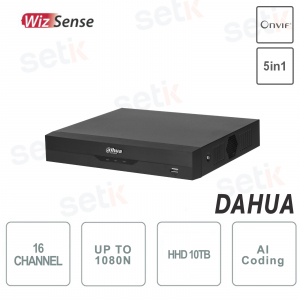

Dahua Penta-Brid 16 Channel Surveillance Recorder - XVR4116HS-I
5 technologies in 1: "Hdcvi/Hdtvi/Ahd/Analog/Ip" - Recording resolution up to 1080N (higher than 720P)
Video Compression up to AI Coding! (higher than H.265+) - 1 HDMI/1VGA 1080P - RS485 for PTZ control
Support HDCVI cameras up to 1080P and IP cameras up to 6MP! - SMD Plus
Audio: 1 input + 1 RCA output - Support 1HDD Max 10TB (not included)
WIZSENSE TECHNOLOGY: |
Product details
|  Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on people and vehicles with high precision, allowing users to act quickly on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent and simple products. New series of XVR5108HS-I2, equipped with SMD Plus on all channels to benefit customers from AI upgrade. The series is designed to reduce false alarm rates and human surveillance costs, thus bringing great value to customers looking for accurate human/vehicle alarm products to increase the security level of various indoor and outdoor facilities. AI search: Supports searching for metadata of people and vehicles. It supports uploading face images to the NVR and comparing them with similar ones already recorded by the NVR. It allows operators to quickly and easily search across various channels and efficiently discover when and where a subject is present. |
 | 5 Technologies in 1! This DVR supports 5 different technologies ( HDCVI/AHD/TVI/ANALOG/IP ) |
 | Onvif is the most important standard in the IP world. Being Onvif guarantees a wide range of IP devices compatible with each other (DVRs/cameras). This XVR supports ONVIF® version 16.12 |
 | AI Coding: What is it?
|
 | 16 channels with recording resolution up to 1080N ( higher than 720P! ) Supported technologies and resolutions: Hybrid Mode: |
| SMD Plus SMD Plus: With the deep learning algorithm, Dahua SMD Plus filters the alarm received from the detection of an uninterested target and effectively recognizes humans and vehicles, sending alarms when the latter appear in the shooting area. AI search: Supports searching for metadata of people and vehicles. |
 |
Supports cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and others... (operation with the models proposed here must be verified on a case-by-case basis) |
| HDMI and VGA input with resolution up to 1080P ( 1920 × 1080) |
 | Supports 1x SATA Audio / Video Hard Disk up to 10TB (NOT INCLUDED!)
|
 | This DVR features 2x USB Port (USB 2.0) |
 | This XVR features 1 input + 1 RCA audio output |
 | 1 RJ45 Port (100M) |
 | 1 RS 485 port for PTZ commands (remotely controlled cameras) |
 | This product is covered by a 24 month warranty. |
Data sheet
| Model: DVR | XVR4116HS-I |
| SYSTEM | |
| Main Processor | Embedded Processor |
| Operating System | Embedded LINUX |
| SDM Plus | |
| Performance | 8 channels |
| AI Search | Search by target classification (Human, Vehicle) |
| Video and Audio | |
| Analog Camera Input | 16 channels, BNC |
| HDCVI Camera | 1080p@ 25/30 fps, 720p@ 50/60 fps, 720p@ 25/30 fps |
| AHD Camera | 1080p@ 25/30 fps, 720p@ 25/30 fps |
| TVI Camera | 1080p@25/30fps, 720p@25/30fps |
| CVBS Camera | PAL/NTSC |
| IP Camera Input | 16+2 channels: each channel up to 6MP |
| Audio In/Out | 1/1, RCA |
| Two-way Talk | Reuse audio in/out, RCA |
| Recording | |
| Video compression | AI Coding/H.265+/H.265/H.264+/H.264 |
| Resolution | 1080N; 720p; 960H; D1; CIF |
| Record Rate | Main Stream: the 1st channel 1080N/720p (1 fps–25/30 fps), others 1080N/720p (1 fps–15 fps); 960H/D1/CIF (1 fps–25/30 fps) Sub stream: CIF (1fps–7fps) |
| Video Bit Rate | 32kbps–4096kbps per channel |
| Record Mode | Manual; Schedule (General, Continuous); MD (Video detection: Motion Detection, Video Loss, Tampering); Alarm; Stop |
| Record Interval | 1 min–60 min (default: 60 min), Pre-record: 1 sec–30 sec, Post-record: 10 sec–300 sec |
| Audio Compression | G.711A; G.711U; PCM |
| Audio Sample Rate | 8 KHz, 16 bits per channel |
| Audio Bit Rate | 64 kbps per channel |
| Display | |
| Interface | 1 HDMI; 1 VGA |
| Resolution | 1920×1080; 1280×1024; 1280×720 |
| Multi-screen Display | When IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled: 1/4/8/9/16 |
| OSD | Camera title; Time; Video loss; Camera lock; Motion detection; Recording |
| Network | |
| Interface | 1 RJ-45 Port (100MB) |
| Network Function | HTTP; HTTPS; TCP/IP; IPv4/IPv6; Wifi; 3G/4G; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; P2P; IP Search (Supports Dahua IP camera, DVR, NVS, etc.) |
| Max. User Access | 128 users |
| Smart Phones | iPhone; iPad; Android |
| Interoperability | ONVIF® 16.12, CGI Conformant |
| Playback and Backup | |
| Playback | 1/4/9/16 |
| Search Mode | Time/Date, Alarm, MD and Exact Search (accurate to second) |
| Playback function | Play; Breaks; Stop; Rewind; Fast play; Slow Play; Next File, Previous File; Next Camera; Previous Camera; Full Screen; Repeat; Shuffles; Backup Selection; Digital Zoom |
| Backup Mode | USB Device/Network |
| Storage | |
| Internal HDD | 1 SATA port, up to 10 TB capacity |
| Auxiliary Interface | |
| USB | 2 USB ports (USB 2.0) |
| RS485 | 1 port, for PTZ control |
| Electrical | |
| Power Supply | DC 12V/2A |
| Power Consumption (without HDD) | < 10W |
| Construction | |
| Dimensions | Compact 1U, 260.0mm × 237.9mm × 47.6mm (10.24'' × 9.37'' × 1.87'') |
| Net Weight (without HDD) | 1,042 kg (3.00 lb) |
| Gross Weight | 1.48 kg (3.26 lb) |
| Installation | Desktop installation |
| ENVIRONMENTAL | |
| Operating Conditions | -10°C to +55°C (+14°F to +131°F), 10%–90% (RH) |
| Storage Conditions | -20°C to +70°C (-4°F to +158°F), 0%–90% (RH) |
| Third-party Support | |
| Third-party Support | Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more |
| CERTIFICATIONS | |
| Certifications | FCC: Part 15 Subpart B |
