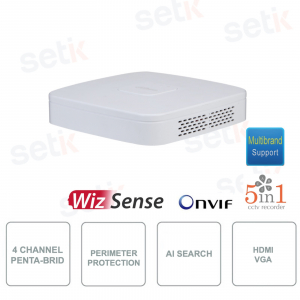

XVR5104C-I3 - Dahua - XVR Digital Video Recorder - 4 Channels Penta-brid 5M-N / 1080p - 4 IP channels 6MP - 5in1 - WizSense

XVR5104C-I3 - Dahua - XVR Digital Video Recorder - 4 Channels Penta-brid 5M-N / 1080p - 4 IP channels 6MP - 5in1 - WizSense
BEST PRICE -61%

WizSense XVR5104C-I3 - Dahua - XVR Digital Video Recorder 4 Channels - 5in1 HDCVI / AHD / TVI / CVBS / IP with resolution up to 5M-N and video compression up to H.265 + - IP input: 4 channels up to 6MP - 1 HDMI, 1 VGA, 2 USB 2.0, support for 1 SATA HDD up to 6TB, 1in / 1out bi-directional audio - Perimeter Protection - Artificial Intelligence, IoT & POS Technology, Video Analysis with real time face recognition - Audio via coaxial.



Reference: XVR5104C-I3

Brand: Dahua

EAN: 6923172501714

FIND INSTALLER

€114.19

€292.80 -61%
taxes included
Tax included
 Available from 30 December 2024
 starting

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


XVR DAHUA 4 CHANNELS - 5in1 HDCVI / AHD / TVI / CVBS / IP UP TO 8MEGAPIXEL - AUDIO 1IN / 1OUT RCA - H.265 + - WIZSENSE DAHUA - XVR5104C-I3

Prodotto Marca Dahua
4-Channel Surveillance Recorder - Dahua - XVR5104C-I3
5 technologies in 1: "HDCVI / AHD / TVI / CVBS / IP" - up to 5M-N - Dual Stream - Input IP: 4 up to 6MP -
Video Compression up to H.265 + / 1xHDMI - 1xVGA - BNC - 2xUSB 2.0 - 1xRJ45 100M - 1 internal HDD with SATA interface that can be installed up to 6TB - Two-way audio RCA 1in / 1out - Artificial Intelligence, IoT & POS [Perimeter Protection, Face Detection (max. 8 / sec), SMD Plus, AI Coding, AI Search] - OSD - Max 128 users - Dimensions: 204.6 mm × 210.9 mm × 45.6 mm - Ideal for video surveillance systems.

Product details

DVR 4 Canali 5in1 8MP Dahua Audio Smart 1U

Novità


Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt an independent AI chip and deep learning algorithm. It focuses on people and vehicles with high accuracy, allowing users to act quickly on defined goals. Based on Dahua's advanced technologies, WizSense provides smart and simple products.

New series, equipped with SMD Plus on all channels to benefit customers from the AI upgrade. The series is designed to reduce false alarm rates and human vigilance costs, thus bringing great value to customers looking for accurate human / vehicle alarm products, to increase the security level of various indoor and outdoor facilities.


AI search: Supports people and vehicle metadata search. It supports uploading face images to the NVR and compares them with similar ones already registered by the NVR. It allows operators to search quickly and easily across various channels and efficiently find out when and where a subject is present.

5in1DVR_icon.jpg 5 Technologies in 1!
This XVR supports 5 different technologies ( HDCVI / AHD / TVI / CVBS / IP )
Standard ONVIF® Onvif is the most important standard in the IP world.
Being Onvif guarantees a wide range of compatible IP devices (DVRs / cameras).

This XVR supports ONVIF® version 16.12
H265+ Video Compressione

AI Coding: What is it all about?

AI coding

Compared to H.265, the AI codec can reduce up to 50% in bit rate and storage requirements without loss of decoding compatibility, providing clear human and vehicle details.




This DVR has 4 channels

4 Channels with up to 8Megapixel 4K ULTRA-HD resolution!

Supported technologies and resolutions:
HDCVI camera: 5MP, 4MP, 1080p @ 25/30 fps, 720p @ 50/60 fps, 720p @ 25/30 fps
AHD cameras: 5MP, 4MP, 1080p @ 25/30 fps, 720p @ 25/30 fps
TVI cameras: 5MP, 4MP, 1080p @ 25/30 fps, 720p @ 25/30 fps

Hybrid mode:
4 + 2 channels, up to 6MP each.

Up to 64Mbps bandwidth inbound.

AI | Artificial intelligence
This surveillance recorder supports Artificial Intelligence functions!

XXVR5108HE-I2

Face recognition: Real-time facial recognition and capture and saving of faces in the database

Metadata: Ability to extrapolate important information (metadata) such as age, gender, facial expressions, glasses or particular characteristics

Image Search: Quick search of the recorded metadata. It supports the loading of face images on the XVR comparing them with those already present.

False Alarm FIlter : Greater accuracy and precision in detecting danger signals, classifying them between harmless (falling leaves, drops of water) and real.

SMD Plus: With the deep learning algorithm, Dahua SMD Plus filters the alarm received from the detection of an unaffected target and effectively recognizes humans and vehicles, sending alarms when they appear in the shooting area.

AI search: Supports people and vehicle metadata search. It supports uploading face images to the XVR and compares them with similar ones already recorded by the XVR. It allows operators to search quickly and easily across various channels and efficiently find out when and where a subject is present.

Face Management Database: Ability to configure multiple facial databases. Powerful face database management. Face database can be applied to video channels independently. Name, gender, date of birth, address, certificate type, certificate number, countries and regions and state can be added to each face image

Collegamento a dispositivi POS

Possibility of connecting POS devices, obtaining all the information superimposed on the channel.

Possibility of searching pos by date or transaction

Possibilità di collegamento dispositivi POS

Funzione POS

IoT function

Internet Of Things (IoT):

Possibility to connect wireless external sensors, such as panic buttons, via USB gateway or cameras with gateway

Diagramma Fuzione IoT

IoT Manager:

- Real Time View: Monitor and preview all IoT information in real time

- IoT information search: Detailed IoT information and videos corresponding to an access point search

- Sensor manager: includes sensor pairing, IoT device status and configurations

Gestore dispositivi IoT

Compatibile con Hard Disk SATA Audio/Video AV-GP

Supports 1x SATA Audio / Video Internal Hard Disk up to 6TB!


ATTENTION: Use specific audio / video discs on DVR systems.
For more information, read our dedicated article.

HARD DISK NOT INCLUDED!

This DVR supports video surveillance cameras

It supports cameras from various brands: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and others.

(operation with the models proposed here is to be verified from case to case)

1x HDMI port with resolution up to 1080P 2MP FullHD.

Display port

VGA output with resolution up to 1080P 2MP FullHD.

Questo DVR presenta ingressi / uscite audio This XVR features 1 Audio input and 1 RCA audio output.
Porta USB IN This XVR features 2x USB ports (2 USB 2.0)
Questo DVR presenta 2 porte RJ-45 ( 10 / 100 / 1000Mbps) This DVR has 1 RJ45 LAN Ethernet Port (100MB)
Dynamic DNS: permette di raggiugere il DVR anche in caso di IP Dinamico Dynamic DNS (DDNS): allows you to reach the DVR even in case of Dynamic IP.
Questo dvr può sovrascrivere automaticamente il disco Ability to overwrite the disk when full or have the disk overwrite after X days. DVR restart programming to ensure greater stability over time
Funzione Invio email

This DVR has email sending.
In case of events (camera obfuscation, signal cut, motion, broken disk, network problems etc ...), it is able to send a report via email

Funzione Motion. La registrazione parte nel momento in cui la telecamera rileva movimento. Motion function (Smart Motion Detection Plus).
Recording starts when the camera detects motion.
Questo prodotto è coperto da garanzia 24 mesi italiana

This product is covered by a 24 month warranty.

Data sheet

Technical Specification

System

Main Processor

Embedded processor

Operating System

Embedded linux

Performance

iPhone; iPad; Android

Interoperability

ONVIF® 16.12, CGI Conformant

Video Detection and Alarm

Trigger Events

Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

Video Detection

Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis

Alarm input

N / A

Relay Output

N / A

Playback and Backup

Playback

1/4

Search Mode

Time / Date, Alarm, MD and Exact Search (accurate to second)

Playback Function

Play; Pauses; Stop; Rewind; Fast play; Slow Play; Next File; Previous File; Next Camera; Previous Camera; Full Screen; Repeat; Shuffle; Backup Selection; Digital Zoom

Backup Mode

USB Device / Network

Storage

Internal HDD

1 SATA port, up to 6 TB capacity

eSATA

N / A

Auxiliary Interface

USB

2 USB ports (USB 2.0)

RS485

N / A

RS232

N / A

Electrical

Power Supply

DC 12V / 1.5A

Power Consumption

(Without HDD)

<4W

Construction

Dimensions

Smart 1U, 204.6 mm × 210.9 mm × 45.6 mm (8.06 '' × 8.30 '' × 1.80 '')

Net Weight
(without HDD)

0.49 kg (1.08 lb)
Gross Weight 1.03 kg (2.27 lb)
Installation Desktop installation
Environmental
Operating Conditions -10 ° C to + 45 ° C (+ 14 ° F to + 113 ° F), 0% –90% (RH)
Storage Conditions -20 ° C to + 70 ° C (-4 ° F to + 158 ° F), 0–90% (RH)
Third-party Support
Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Certifications
Certifications FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1 / IEC 60950-1 CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN 50130; EN 55024

Further details

Download

Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
