NVR - NETWORK VIDEO RECORDER - Hikvision DS-7716NXI-I4 / 16P / S -16 IP channels up to 12MP 4K ULTRA-HD 12Megapixel , 16 PoE RJ45 10 / 100M ports, 160Mbps input, 256Mbps output, HDMI1 (4K), VGA (FullHD), HDMI2 (FullHD), 3 USB (2x 2.0 + 1x 3.0), up to 4 SATA HDD, with capacity of 10TB (each) ( Includes 1 x 2TB HDD ), -1 audio output - Two-way audio x1 channel - 16 inputs + 4 alarm outputs - Video compression up to H.265 +, for the optimization of digital storage space management - Video Analysis, Smart Search, POS function, Hik-Connect application. Ideal product for the management of video surveillance systems.
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

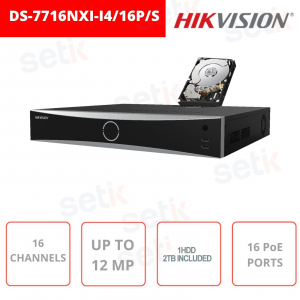

DS-7716NXI-I4 / 16P / S | NVR NETWORK VIDEO RECORDER - HIKVISION - 16 IP CHANNELS - 12MP 4K UltraHD - H.265 + AUDIO / ALARM - 16 POE PORTS (Power Over Ethernet)
2TB HARD DISK INCLUDED! By purchasing this Hikvision recorder you will already find a hard disk with 2TB capacity, specific for video surveillance applications included. |
Nvr Hikvision DS-7716NXI-I4 / 16P / S - 16 IP Channels 16 PoE Ports
Recording resolution: 12MP 4K ULTRA-HD 12Megapixel - 16 channels - 1 HDMI (4K) - 1 VGA (Full HD) - 1 HDMI (Full HD) - Intelligent video compression H.265 +, which greatly saves space digital storage - RS232 Serial Interface - RS-485 - 3 USB (2x 2.0 + 1x 3.0) - Up to 4 3.5-inch SATA HDDs, with 10TB capacity (each) - 1 Audio output - 1 channel for two-way audio - RJ45 10 / 100M - 16 Inputs + 4 Alarm Outputs, Video Analysis, Smart Search, POS technology, Hik-Connect Application - 24 months warranty - Dimensions: 445 × 400 × 75 mm - Weight: about 7Kg.
4K TECHNOLOGY - ULTRA HD - WHAT DOES IT MEAN? | |
---|---|
4K technology (also called ULTRA HD ) is one of the latest innovations in the field of high definition vision. 4K correspond to the resolution of 4 Full-HD, so 3840 X 2160!
|
POE: This NVR Network Video Recorder from HIKVISION features 16 PoE ports (IEEE 802.3 af / at). |
16 CHANNELS: 16 Channels up to 4K ULTRA-HD 12 Megapixel |
4K ULTRA-HD RESOLUTION: ULTRA HD 4K technology! |
H.265 + VIDEO COMPRESSION: H.265 + is the optimized implementation of the H.265 codec which uses a scene adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction useful for delivering high quality video without strain the network. Smart H.265 + greatly reduces bit rate and storage requirements compared to standard H.265 compression |
VCA (VIDEO ANALYSIS): It supports video analysis functions with Hikvision cameras |
SMART SEARCH: This function allows to obtain, in a short time, various motion videos simply by drawing an area during playback. Very useful in case you understand an emergency
|
HIK-CONNECT Hik Connect allows you to control the device remotely |
Possibility of connecting POS devices, obtaining all the information superimposed on the channel. Possibility of searching pos by date or transaction
|
RJ45: RJ-45 (10 / 100Mbps), on the 16 PoE ports on the rear panel. Standard PoE: IEEE 802.3 af / at. |
HARD DISK: Supports up to 4 3.5-inch HDDs, up to 10TB (each) of capacity for each. |
HDMI (up to 4k!) And VGA (full-hd) output: Present 1 HDMI output with resolution up to 4K ULTRA-HD and 1 VGA output + 1 HDMI output up to 1080p! |
USB: Front panel: 2 × USB 2.0 |
Audio and Alarm: This NVR features 1 audio output, 1 channel two-way audio , 16 inputs + 4 alarm output |
Data sheet
DS-7716NXI-I4 / 16P / S | |
Facial Recognition | |
Face detection and analytics | Face picture comparison, human face capture, face picture search |
Face Picture Library | Up to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 150 MB) |
Face Picture comparison | 4-ch face picture comparison alarm |
Performance of facial detection and analytics | 1-ch human face capture (HD network camera, up to 8 MP, H.264 / H.265) |
Perimeter Protection | |
Human / Vehicle analysis | Up to 4-ch 2 MP (H.264 / H.265) video analysis for human and vehicle recognition to reduce false alarm; Up to 12 rules in total |
Video and Audio | |
IP video input: | 16-ch - Up to 12 MP resolution |
Two-way audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
Incoming bandwidth | 160 Mbps |
Outgoing bandwidth | 256 Mbps |
Recording resolution | 12MP / 8MP / 7MP / 6MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
CVBS output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
HDMI 1 resolution | 4K (3840 × 2160) / 60Hz, 4K (3840 × 2160) / 30Hz, 2K (2560 × 1440) / 60Hz, 1920 × 1080 / 60Hz, 1600 × 1200 / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz , 1024 × 768 / 60Hz, HDMI1 / VGA simultaneous output |
HDMI 2 resolution | 1920 × 1080 / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz, HDMI2 / VGA independent output |
VGA resolution | 1-ch, 1920 × 1080 / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz, HDMI1 / VGA simultaneous output |
Audio output | 1-ch, RCA (Linear, 1 KΩ) |
Decoding | |
Decoding format | H.265 + / H.265 / H.264 + / H.264 / MPEG4 |
Synchronous playback | 16-ch |
Playback Mode | Normal / Smart, Event, Tag, Eternal File |
Live view window division | 1/2/4/6/8/9/16 |
Aux port window division | 1/2/4/6/8/9/16 |
Capability | 16-ch @ 1080p (30 fps) |
Dual Stream recording | Support |
Stream type | Video, Video & Audio |
Audio compression | G.711ulaw / G.711alaw / G.722 / G.726 / MP2L2 |
Network | |
Remote connections | 128 |
Network protocol | TCP / IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP ™, HTTP, HTTPS |
Network interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
PoE | |
Interface | 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
Power | ≤ 200W |
Supported standard | IEEE 802.3 af / at |
Auxiliary interface | |
Serial port | RS-485 (half-duplex), RS-232, Keyboard |
SATA | 4 SATA interfaces supporting hot-plug |
Capacity | Up to 10 TB capacity for each disk |
eSATA | 1 eSATA interface |
Alarm In / Out | 16/4 |
USB interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
General | |
Power supply | 100 to 240 VAC, 50 to 60 Hz |
Total Power | ≤ 360 W |
Consumption (without HDD) | ≤ 30 W |
Working temperature | -10 ° C to 55 ° C (14 ° F to 131 ° F) |
Working humidity | 10% to 90% |
Chassis | 19-inch rack-mounted 1.5U chassis |
Dimensions (W × D × H) | 445 × 400 × 75 mm (17.5 "× 15.7" × 3.0 ") |
Weight (without HDD) | ≤ 7 kg (15.4 lb) |
Certification | |
FCC | Part 15 Subpart B, ANSI C63.4-2014 |
THERE IS | EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4 |
