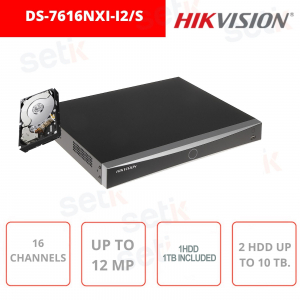

NVR Hikvision DS-7616NXI-I2 / S 16 IP channels up to 12MP 4K ULTRA-HD 12Megapixel - Supports 2 Hard Disks of 10TB (each) (Includes 1 Hard Disk of 2TB) , 256Mbps, H.265 +, HDMI (4K ), VGA (FullHD), 2 USB (1x 2.0 - 1x 3.0), 1 input + 1 audio output, 4 inputs + 1 alarm output. 2 RJ-45 (10/100/1000 Mbps), Video Analysis, Smart Search, POS function, Hik-Connect application.
FIND INSTALLER
€788.24
€1,212.68 -35%
discover the available quantity
DS-7616NXI-I2 / S | NVR HIKVISION 16 CHANNELS IP 12MP - H.265 + AUDIO / ALARM - SUPPORTS 2 HDDs OF 10 TB EACH.
2TB HARD DISK INCLUDED! By purchasing this Hikvision recorder you will already find included a hard disk with 2TB capacity, specific for video surveillance applications |
Nvr Hikvision DS-7616NXI-I2 / S 16 IP channels
Resolution: 12MP 4K ULTRA-HD 12Megapixel - 16 channels - 1 HDMI (4K) - 1 VGA (Full HD) - 2 USB (1x 2.0 - 1x 3.0) -
| 4K TECHNOLOGY - ULTRA HD - WHAT DOES IT MEAN? | |
|---|---|
|
16 CHANNELS: 16 Channels up to 4K ULTRA-HD 12 Megapixel *: 32MP and 24MP are resolutions available only on channel 1 when ultra HD mode is active
|
4K ULTRA-HD RESOLUTION: ULTRA HD 4K technology! |
H.265 + VIDEO COMPRESSION: H.265 + is the optimized implementation of the H.265 codec which uses a scene adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference frame and intelligent noise reduction useful for delivering high quality video without strain the network. Smart H.265 + greatly reduces bit rate and storage requirements compared to standard H.265 compression |
| VCA (VIDEO ANALYSIS): It supports video analysis functions with Hikvision cameras |
| SMART SEARCH: This function allows to obtain, in a short time, various motion videos simply by drawing an area during playback. Very useful in case you understand an emergency |
HIK-CONNECT Hik Connect allows you to control the device remotely
|
Possibility of connecting POS devices, obtaining all the information superimposed on the channel. Possibility of searching pos by date or transaction |
RJ45: 2x RJ-45 (10/100 / 1000Mbps) |
HARD DISK: Supports up to 2 SATA III HDDs, up to 10TB (each) of capacity. |
HDMI (up to 4k!) And VGA (full-hd) output: Present 1 HDMI output with resolution up to 4K ULTRA-HD and 1 VGA output up to 1080p! |
USB: Front panel: 1 × USB 2.0 Front panel: 1 × USB 3.0 |
Audio and Alarm: This NVR has 1 input + 1 audio output , 4 inputs + 1 alarm output |
Data sheet
| DS-7616NXI-I2 / S | |
| Facial Recognition | |
| Face detection and analytics | Face picture comparison, human face capture, face picture search |
| Face Picture Library | Up to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 150 MB) |
| Face Picture comparison | 4-ch face picture comparison alarm |
| Performance of facial detection and analytics | 1-ch human face capture (HD network camera, up to 8 MP, H.264 / H.265) |
| Perimeter Protection | |
| Human / Vehicle analysis | Up to 4-ch 2 MP (H.264 / H.265) video analysis for human and vehicle recognition to reduce false alarm; Up to 12 rules in total |
| Video and Audio | |
| IP video input: | 16-ch - Up to 12 MP resolution *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled. |
| Two-way audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Incoming bandwidth | 160 Mbps |
| Outgoing bandwidth | 256 Mbps |
| Video output mode | HDMI / VGA independent output |
| Recording resolution | 32 MP / 24 MP / 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled. |
| CVBS output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| HDMI resolution | 4K (3840 × 2160) / 60Hz, 4K (3840 × 2160) / 30Hz, 2K (2560 × 1440) / 60Hz, 1920 × 1080 / 60Hz, 1600 × 1200 / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz , 1024 × 768 / 60Hz |
| VGA resolution | 1-ch, 1920 × 1080 / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz, |
| Audio output | 1-ch, RCA (Linear, 1 KΩ) |
| Decoding | |
| Decoding format | H.265 + / H.265 / H.264 + / H.264 / MPEG4 |
| Synchronous playback | 16-ch |
| Capability | 16-ch @ 1080p (30 fps) |
| Dual Stream recording | Support |
| Stream type | Video, Video & Audio |
| Audio compression | G.711ulaw / G.711alaw / G.722 / G.726 / MP2L2 |
| Network | |
| Remote connections | 128 |
| Network protocol | TCP / IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP ™, HTTP, HTTPS |
| Network interface | 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Auxiliary interface | |
| SATA | 2 SATA interfaces supporting hot-plug |
| Capacity | Up to 10 TB capacity for each disk |
| Alarm In / Out | 4/1 |
| USB interface | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 |
| General | |
| Power supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption (without HDD) | ≤ 15 W |
| Working temperature | -10 ° C to 55 ° C (14 ° F to 131 ° F) |
| Working humidity | 10% to 90% |
| Chassis | 1U chassis |
| Dimensions (W × D × H) | 385 × 315 × 52 mm (15.2 "× 12.4" × 2.0 ") |
| Weight (without HDD) | ≤ 1.6 kg (3.5 lb) |
| Certification | |
| FCC | Part 15 Subpart B, ANSI C63.4-2014 |
| THERE IS | EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4 |
