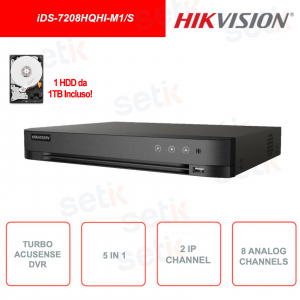

iDS-7208HQHI-M1/S - Hikvision - Turbo Acusense DVR - 5in1 - 2 IP channel - 8 analog input channels - Includes 1TB HDD

model

iDS-7208HQHI-M1/S

Motion Detection 2.0

Human/Vehicle Analysis

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;

perimeter protection

Human/Vehicle Analysis

Up to 4-ch

recording

video compression

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding resolution

Mainstream:

When 1080p lite mode not enabled:

For 4MP stream access:

4MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps For 1080p stream access:

1080p/720p@15fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) When 1080p Lite mode enabled :

4MP lite/3MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

Sub-stream:

WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

Video bit rate

32Kbps to 6Mbps

Dual streams

Support

Stream type

Videos, Videos & Audios

Audio compression

G.711u

Audio bit rate

64Kbps

Video and Audio

Video input IP

2-ch (up to 8-ch)
Enhanced IP mode on: 4-ch (up to 12-ch), each up to 4 Mbps

Up to 6MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras

Analog video
input

8-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI inputs

4MP, 3MP, 1080p30, 1080p@25fps, 720p@60fps, 720p@50fps, 720p@30fps, 720p@25fps *:

The 3MP signal input is only available for channel 1 and 2

AHD input

4MP, 1080p@25fps, 1080p@30fps, 720p@25fps, 720p@30fps

HDCVI input

4MP, 1080p@25fps, 1080p@30fps, 720p@25fps, 720p@30fps

CVBS input

PAL/NTSC

CVBS output

1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

HDMI/VGA
output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI/VGA simultaneous output

Audio inputs

1-ch, RCA (2.0 Vp-p, 1KΩ)

8-ch via coaxial cable

Audio outputs

1-ch, RCA (Linear, 1KΩ)

Two-way audio

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Synchronous
playbacks

8-ch

Network

remote
connection

64

Network
protocol

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF®

Network
interface

1, RJ45 10/100Mbps self-adaptive Ethernet interface

Wifi

Connectable to Wi-Fi network by Wi-Fi dongle through USB interface

Auxiliary interface

SATA

1 SATA interface, up to 10TB capacity for each disk

Serial
interface

RS-485 (half duplex)

USB interface

Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0

Alarm in/out

N/A

General

power supplies

12VDC, 1.5A

consumption
(without HDD)

≤ 18W

Working
temperatures

-10°C to 55°C (14°F to 131°F)

Working
humidity

10% to 90%

Dimension

315×242×45mm (12.4×9.5×1.8inch)

Weight
(without HDD)

≤ 1.78kg (4.4lbs)
