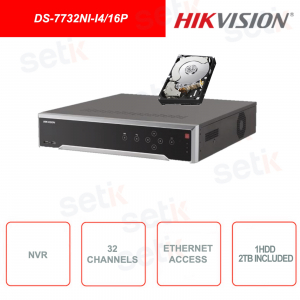

DS-7732NI-I4/16P - Network video recorder PoE - HIKVISION - 32 channels - 12MP - 4K - Includes 2TB HDD

-35%

Hikvision DS-7632NI-I2/16P NVR 32 IP Channels - 16 RJ45 PoE Ports - Resolution up to 12MP 4K ULTRA-HD 12Megapixel , 256Mbps incoming stream, 256Mbps outgoing bandwidth, Video compression with support for H.265 formats +/H.265/H.264/H.264+, HDMI (4K), VGA (FullHD), 3xUSB (2x 2.0 - 1x 3.0), up to 4 SATA HDDs of 10TB (each), 1 audio out, Audio bidirectional 1 channel, 16 inputs + 4 (8 optional) alarm output. Smart Search, Detection Alarm, 10/100/1000 Mbps Ethernet Network Card, 16 RJ45 PoE, Hik-Connect Application, DNS, DDNS. Ideal for video surveillance systems. - Includes 2TB HDD

Reference: DS-7732NI-I4/16P

Brand: Hikvision

EAN: 6954273670351

FIND INSTALLER

https://www.setik.biz/en/recording-devices/6162-hikvision-ds-7732ni-i4-16p-ds-7732ni-i416p-network-video-recorder-poe-hikvision-32-channels-12mp-4k-includes-2tb-hdd.html

€1,605.03

€2,469.28 -35%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

PRODUCT NOT AVAILABLE, DISCOUNT NOW 5%

OFFICIAL AJAX DISTRIBUTORS! ×

BUY AJAX!
Free shipping >€49
SPED-AJAX-E

Description Product Details Data Sheet Further Details Download

DS-7732NI-I4/16P | NVR HIKVISION 16 POE PORTS - 32 CHANNELS - 12MP - H.265+ - AUDIO AND ALARM

HDD

2TB HARD DISK INCLUDED!

By purchasing this Hikvision recorder you will already find a 2TB capacity hard disk included, specific for video surveillance applications

Nvr Hikvision DS-7732NI-I4/16P - 16 PoE ports
Resolution: 12MP 4K ULTRA-HD 12Megapixel - 32 channels - HDMI (4K) - VGA (Full HD) - 3xUSB - Support up to 4 SATA HDDs of 10TB (each) - 1 Audio output - 1-channel bidirectional audio - 16 Inputs Alarm + 4 (8 optional) Alarm Out, Smart Search, Hik-Connect Application, DDNS, DNS, DHCP - Up to 128 users - 1 optional eSATA - - 24 months warranty

4K TECHNOLOGY - ULTRA HD - WHAT DOES IT MEAN?
4K technology (also known as ULTRA HD ) is one of the latest innovations in the field of high definition vision. 4K corresponds to the resolution of 4 Full-HD, so 3840 X 2160! Already used in the consumer electronics sector, it is finally arriving in the world of security as well. The new generation of DAHUA devices, in fact, allows the support of cameras up to 12MPX on standard H265 , the new video compression that allows you to save up to 50% compared to the previous H264. Thanks to the 4K output it is also possible to view (on a 4K monitor) the image with its maximum detail.

4K TECHNOLOGY - ULTRA HD - WHAT DOES IT MEAN?

4K Ultra HD technology 4K technology (also known as ULTRA HD ) is one of the latest innovations in the field of high definition vision. 4K corresponds to the resolution of 4 Full-HD, so 3840 X 2160!
Already used in the consumer electronics sector, it is finally arriving in the world of security as well. The new generation of DAHUA devices, in fact, allows the support of cameras up to 12MPX on standard H265 , the new video compression that allows you to save up to 50% compared to the previous H264. Thanks to the 4K output it is also possible to view (on a 4K monitor) the image with its maximum detail.

16 POE PORTS:

This NVR features 16 PoE ports

32 CHANNELS:

32 Channels up to 12 MEGAPIXELS 4K ULTRA-HD 12 Megapixels
Recording resolution: 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
Max 256Mbps of incoming and outgoing bandwidth.

4K ULTRA-HD RESOLUTION:

ULTRA HD 4K technology!
Even higher resolution than FULL-HD!
Greater detail available, greater sense of depth and realism.

VIDEO COMPRESSION:

This NVR supports video compression in H.264 and also in the new H.265+ standard

VCA (VIDEO ANALYSIS):
It supports video analysis functions with Hikvision cameras

SMART SEARCH:
This function allows you to obtain various motion videos in a short time by simply drawing an area during playback. Very useful in case he should understand an emergency

Smart Search Banners

HIK-CONNECT

Hik Connect allows you to control the device remotely

RJ45:

1x RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

HARD DISKS:

Supports up to 4 SATA HDDs, up to 10TB (each) capacity.

Optional eSATA interface present.

HDMI (up to 4k!) and VGA(full-hd) output:

Present HDMI output with resolution up to 4K ULTRA-HD and VGA output up to 1080p!

USB:

Front Panel: 2 × USB 2.0

Front Panel: 1 × USB 3.0

Audio and Alarm:

This NVR Network Video Recorder has 1 audio output , 1 channel for two-way audio, 16 inputs + 4 (optionally 8) alarm output.

Data sheet

DS-7716NI-I4/16P
Video/Audio Inputs
Input Video IP:	32-ch
Input Video IP:	Up to 12MP resolution
Incoming bandwidth	256Mbps
Outgoing bandwidth	256Mbps
HDMI1 out	4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI2 out	1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA out	1920×1080/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
Video output mode	HDMI1/VGA simultaneous output, HDMI2/VGA independent output
CVBS output	1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio outputs	1-ch, RCA (Linear, 1KΩ)
Two-way audio input	1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding
Decoding format	H.265+/H.265/H.264+/H.264/MPEG4
recording resolution	12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
Synchronous playback	16-ch
Capabilities	2-ch@12MP (20fps)/4-ch@8MP (25fps)/8-ch@4MP (30fps)/16-ch@1080p (30fps)
Dual stream recording	Support
Stream type	Videos, Videos & Audios
Audio compression	G.711ulaw/G.711alaw/G.722/G.726
Network
Remote connections	128
Network protocol	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network interface	1, RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
PoE
interface	16, RJ-45 10/100Mbps self-adaptive Ethernet interface
Power	≤ 200W
Supported standards	IEEE 802.3af/at
Auxiliary Interface
Serial port	1 RS-485 (half-duplex), 1 RS-232
SATA	4 SATA interfaces
eSATA (optional)	1 eSATA interface
Capacity	Up to 10TB capacity for each disk
Alarm in/out	16/4 (16/8 optional)
USB interface	Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
General
Power Supplies:	100 to 240VAC, 50 to 60Hz
consumption (without HDD and PoE off)	≤ 20W
Working temperatures	-10°C to 55°C (14°F to 131°F)
Working humidity	10% to 90%
Chassis	19-inch rack-mounted 1.5U chassis
Dimension(W×D×H)	440 × 387 × 75 mm ( 17.3" × 15.2" × 3.0")
Weight (without HDD)	≤ 5kg (11lbs)
Certification
FCC	Part 15 Subpart B, ANSI C63.4-2014
THERE IS	EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
