NVR2104HS-I2 IP Dahua 4K , 4 Channels WizSense IP up to 12 Megapixel 4K , Supports Video Compression H.265 + , Up to 80Mbps maximum bandwidth. HDMI / VGA video output, 1 input + 1 audio output. Perimeter Protection, AI Search , Face Recognition , ONVIF Support, SMD Plus, 1 HDD DATA 3.5 "MAX 10 TB.
FIND INSTALLER
discover the available quantity
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

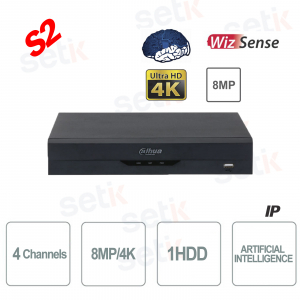

4-CHANNEL IP DAHUA NVR - 4K ULTRA HD - UP TO 12 MEGAPIXELS 4K - PERIMETER PROTECTION - FACIAL RECOGNITION - S2 - DAHUA
Wizsense 4 Channel IP Nvr - 4K ULTRA HD - S2 Version - DahuaUp to 12 MP resolution - 8 0Mbps recording - H.265 + / H.264 Video Compression - Perimeter Protection - Face Recognition - AI Search
- 1 audio input and 1 output - Support 1 HDD SATA 3.5 "up to 10TB - Hard Disk NOT included - 24 month warranty
| 4K TECHNOLOGY - ULTRA HD - WHAT DOES IT MEAN? | |
|---|---|
|
|
Product details
|
|
WIZSENSE TECHNOLOGY
This AI Network Video Recorder is a very affordable cost-effective product, providing features such as local live view, multiscreen viewing, real-time storage on local HDD, quick mouse operation and remote management and control. This product is suitable for face detection and entry / exit recognition and perimeter protection of people and vehicles. AI functions available: 1) PERIMETER PROTECTION: Automatically filters false alarms caused by animals, rustling leaves, bright lights etc .. 2) FACIAL RECOGNITION: Detect faces in real time via video stream or photo stream. Analyze facial attributes including gender, age, expression, glasses, mustache and masks. Identify people and also capture them, record faces with metadata. - Face Management Database: Ability to configure multiple facial databases. Powerful face database management. Face database can be applied to video channels independently. Name, gender, date of birth, address, type of certificate, certificate number, countries and regions and state can be added to each face image - Unknown mode : This recorder supports common and unknown mode. In unknown mode , when the NVR detects an unknown face (not present in the database), it can trigger an alarm, a buzzer, a snapshot, a recording. The similarity threshold can be set manually. Really useful function in all those situations where access control is extremely important. - AI search: Supports metadata search of people and vehicles. It supports uploading face images to the NVR and compares them with similar ones already registered by the NVR. It allows operators to search quickly and easily across various channels and efficiently find out when and where a subject is present. This recorder allows: - 2 perimeter protection channels or 1 facial recognition channel or 4 SMD channels
|
 |
Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems. |
|
|
Smart H.265 + Smart H.265 + is the optimized implementation of the H.265 codec which uses a scene adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction useful for delivering high quality video without straining the network. Smart H.265 + greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
 |
New ULTRA HD 4K Technology! Even higher resolution than FULL-HD! More detail available, greater sense of depth and realism. |
 |
4 Channels up to 4K ULTRA-HD 12 Megapixe l! Recording resolution: 12MP; 8MP; 5MP; 4MP; 3MP; 2MP; 720p; D1 Max 80Mbps of incoming broadband |
 |
Support ONVIF® IP cameras |
 |
Supports IP cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec and others (operation with the models proposed here is to be verified from case to case) |
 |
This NVR supports cameras with IVS (Video Analysis Functions) on board |
 |
Compatible with devices: iPhone, iPad, Android  |
 |
Supports 1x 3.5 "SATA Hard Disk (up to 10TB each) ATTENTION: use specific audio / video discs on NVR systems. For more information, read our dedicated article . |
 |
This NVR features 2x USB Ports (1x USB2.0 Font, 1x USB2.0 Rear) |
|
|
1x HDMI port / 1x VGA port |
 |
1 Input + 1 Bidirectional RCA Audio Output |
 |
Ability to have the disk overwrite when full or have the disk overwrite after X days. NVR restart programming to ensure greater stability over time |
 |
This NVR has email sending. In case of events (camera obfuscation, signal cut, motion, broken disk, network problems etc ...), it is able to send an email report, a sound notification or upload videos & screenshots via FTP |
 |
Motion function. Recording starts when the camera detects motion. |
 |
1x RJ-45 (10/100 Mbps) |
 |
This product is covered by a 24 month warranty. |
Data sheet
| Model: DVR | NVR2104HS-I2 |
| SYSTEM | |
| Main Processor | Industrial-grade embedded processor |
| Operating System | Embedded Linux |
| Operation Interface | Web / operating in local GUI |
| Video | |
| Access Channel | 4 channels |
| Network Bandwidth | 80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding. |
| Resolution | 12MP; 8MP; 5MP; 4MP; 3MP; 2MP; 720p; D1 |
| Decoding Capability | AI disabled: 1-channel 12MP @ 30 fps; 1-channel 8MP @ 30 fps; 2-channel 5MP @ 30 fps; 3-channel 4MP @ 30 fps; 6-channel 1080p @ 30 fps AI enabled: 1-channel 8MP @ 30 fps; 1-channel 5MP @ 30 fps; 2-channel 4MP @ 30 fps; 4-channel 1080p @ 30 fps |
| Video Output | 1 × VGA, 1 × HDMI (simultaneous) |
| Multi-screen Display | 1, 4 views |
| Third Party Camera Access | Onvif; RTSP; |
| Compression | |
| Video | Smart H.265 +; H.265; Smart H.264 +; H.264; MJPEG |
| Audio | PCM; G711A; G711U; G726 |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP / IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); P2P; Auto Registration |
| Mobile Phone Access | Android; iOS |
| Interoperability | ONVIF® (profile T; profile S; profile G); CGI; SDK |
| Browser | Chrome; IE9 or later; Firefox |
| Record Playback | |
| Multi-channel Playback | Up to 4 channels |
| Record Mode | Manual record; alarm recordings; motion detection recordings; scheduled recordings |
| Storage | Local HDD and network |
| Backup | USB device |
| Playback Function | 1. Play; breaks; stop; fast forward; fast backward; rewind; play by frame 2. Full screen; backup (vide clip / file); partially zom in; audio on / off |
| SMD Plus | |
| SMD Plus by Device | 4 |
| SMD Plus By Camera | 4-channel SMD Plus (AI by camera): Detects tripwire and intrustion of human or vehicle; filters false alarms caused by leaves, raindrops and change of brightness away |
| Face Recognition | |
| Face Database Capacity | Up to 10 face databases with 5,000 images |
| Face Recognition Performance of AI by Device (1080P) (Number of Channels) | 1 (up to 4 face images / second) |
| Face Recognition Performance of AI by Camera (Number of Channels) | 4 |
| Face Attributes | 6 attibutes: Gender; age group (6); glasses; expressions (8); mouth mask; beard |
| Face Detection Performance of AI by Device (1080P) (Number of Channels) | 1 (up to 12 face images / second) |
| Face Detection Performance of AI by Camera (Number of Channels | 4 |
| Perimeter Protection | |
| Perimeter Performance AI by Device (Number of Channels) | 1 |
| Perimeter Performance of AI by Camera (Number of Channels) | 4 |
| TO THE | |
| AI by Camera | 1 |
| AI by Device | 4 |
| External Port | |
| HDD | 1 SATA port, up to 10 TB. The maximum HDD capacity varies with environment temperature |
| USB | 1 × front USB2.0; 1 × back USB2.0 |
| HDMI | 1 (max. Resolution: 4K) |
| VGA | 1 |
| Network | 1 × RJ-45 (10 or 100 Mbps) |
| RCA Input | 1 |
| RCA Output | 1 |
| General Parameter | |
| Power Supply | 12 V DC, 1.5 A |
| Power Consumption | Total output of NVR is ≤ 10 W (without HDD) |
| Net Weight | 0.81 kg (1.79 lb) |
| Gross weight | 1.38 kg (3.04 lb) |
| Product Dimensions | 260mm × 232.7mm × 47.6mm (10.24 "× 9.16" × 1.87 ") (W × L × H) |
| Package Dimensions | 89 mm × 333 mm × 315 mm (3.50 "× 13.11" × 12.40 ") (W × L × H) |
| Operating Temperature | –10 ° C to +55 ° C (+14 ° F to +131 ° F) |
| Storage Temperature | 0 ° C to 40 ° C (+ 32 ° F to + 104 ° F) |
| Operating Humidity | 10% –93% |
| Storage Humidity | 30% –85% |
| Operating Altitude | 3,000 m (9,842.52 ft) |
| Installation | Desktop |
| Certifications | FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032: 2015, Class A; EN IEC 61000- 3-2: 2019; EN 61000-3-3: 2013 + A1: 2019; EN 55024: 2010 + A1: 2015; EN 55035: 2017; EN 50130- 4: 2011 + A1: 2014 CE-LVD: EN 62368-1: 2014 + A11: 2017 |
