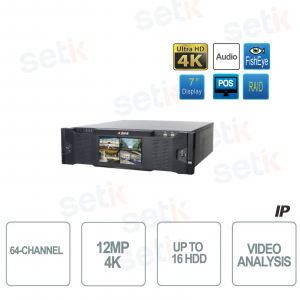

IP NVR 64 Channels 4K ULTRA-HD 12MP 16HDD Redundant Power 7 Inch LCD Display Audio POS Alarm - Dahua
New Series of Dahua NVR616DR-64-4KS2 4K Ultra HD Professional IP NVRs for surveillance - With 7 "Display - Redundant Power - 64 IP Channels with resolution up to 12MP 4k, Supports Video Compression H.265 +, Up to 384Mbps broadband in. Video Outputs 2x HDMI / 1x VGA, Max 16 HDD SATA 3.5 "SUPPORT RAID MODE, VIDEO ANALYSIS , 4 USB Ports . Audio, Alarm, RS232, RS485.
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
NVR 64 CHANNELS IP DAHUA - 4K ULTRA HD - H.265 - 320MBPS - 12 MP - VIDEO ANALYSIS - 16HDD RAID - DAHUA
VERSION WITHOUT POE PORTS!
Nvr IP 64 Channels - New 4K Series - DahuaUp to 12MP 4K resolution - Up to 384Mbps - Video Compression up to H.265 +
Alarm / Audio - Supports 8x SATA HDD RAID MODE - 2x HDMI - 1x VGA - RS232 - RS485 - 4x USB Ports
Hard Disk NOT included - Redundant Power - 24 Months Warranty
| 4K TECHNOLOGY - ULTRA HD - WHAT DOES IT MEAN? | |
|---|---|
|
|
Product details
VERSION WITHOUT POE PORTS!
|
|
Smart H.265 + Smart H.265 + is the optimized implementation of the H.265 codec which uses a scene adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction useful for delivering high quality video without straining the network. Smart H.265 + greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
 |
New ULTRA HD 4K Technology ! Even higher resolution than FULL-HD! More detail available, greater sense of depth and realism. |
 |
64 Channels H.264 / H.265 Resolution \ frame ratio and variable bit rate ( 16Kbps ~ 20Mbps ) for single channel All channels synchronize Playback and GRID Interface in real time |
 |
7 "LCD display with 1920 × 1080 resolution |
 |
Supports ONVIF® Version 2.4 IP cameras |
 |
Supports IP cameras: Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC,
LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet (operation with the models proposed here is to be verified from case to case) |
 |
This video recorder supports some functions of Video Analysis: Heat Map, People Counting, Object Detection and Analysis in  |
 |
Multiple network monitoring: Web viewer, CMS (DSS / PSS) & DMSS (best CCTV software for Mobile) |
 |
Possibility of connecting POS devices, obtaining all the information superimposed on the channel. Possibility of searching pos by date or transaction
|
 |
Fisheye dewarping Fisheye dewarping solves the problem of distortion in the circular panoramic view. The NVR offers various dewarping modes for different types of installations and configurations that enhance the video, both in live and in playback mode. Each dewarping mode offers options to adjust each scene.  |
 |
ANR (Automatic Network Replenishment). This feature allows you to archive locally when the network is temporarily unavailable or congested. Normally in case of events of this type, the NVR stops recording, this type of NVR instead compensates for this problem. The NRA also manages the information flow to the NVR thus avoiding network congestion |
 |
Supports 8x 3.5 "AV-GP SATA Audio / Video Hard Disk ( Max 10TB each) HARD DISK NOT INCLUDED! |
 |
This NVR features 4x USB ports (2 Rear USB3.0, 2 Front USB2.0) |
 |
RAID function: The RAID mode allows you to replicate the contents of a disk on a second disk, thus ensuring data reliability in case of disk failure and continuity of service. |
 |
Equipped with 2 HDMI ports. HDMI1 with resolution up to 4K!
New ULTRA HD 4K Technology ! |
 |
This product features 1x VGA ports with 1080P resolution! |
 |
With alarm relay 16 inputs + 8 outputs for burglar alarms or other instruments and to activate external peripherals (gates, sirens, etc.) |
 |
This DVR features 1 input and 2 bidirectional RCA audio outputs |
 |
Dynamic DNS: allows to reach the NVR even in case of Dynamic IP |
 |
Pentaplex: Recording, Live View, Recording History, Remote, Backup |
 |
Ability to have the disk overwrite when full or have the disk overwrite after X days. NVR restart programming to ensure greater stability over time |
 |
This NVR has email sending. In case of events (camera obfuscation, signal cut, motion, broken disk, network problems etc ...), it is able to send an email report, a sound notification or upload videos & screenshots via FTP |
 |
Motion function. The recording starts when the camera detects motion. |
 |
2x RJ-45 (10/100 / 1000Mbps) |
 |
RS 232 to communicate with PC and keyboard |
 |
1 RS 485 port for PTZ commands (remotely controllable cameras) |
 |
This product is covered by a 24 month warranty. |
Data sheet
| Model: DVR | NVR616DR-64-4KS2 |
| SYSTEM | |
| Main Processor | Intel Quad-core Processor |
| Operating System | Embedded LINUX |
| VIDEO & AUDIO | |
| IP Camera Input | 64 channel |
| Two-way talk | 1 Channel Input, 1 Channel Output, RCA |
| DISPLAY | |
| Interface | 2 HDMI (up to 3840 x 2160, Different Source), 1 VGA |
| Resolution |
3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768 |
| Multi-screen Display |
1st Screen: 1/4/8/9/16/25/36 |
| OSD | Camera title, Time, Camera lock, Motion detection, Recording |
| RECORDING | |
| Compression | H.265 / H.264 / MJPEG |
| Resolution |
12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1 etc. |
| Record Rate |
384Mbps |
| Bit Rate | 16Kbps ~ 20Mbps Per Channel |
| Recording Mode | Manual, Schedule (Regular, MD (Motion Detection), Alarm, IVS), Stop |
| Recording Interval | 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec |
| VIDEO DETECTION & ALARM | |
| Trigger Events | Recording, PTZ, Tour, Alarm Out, Video Push, Email, Snapshot, Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering |
| Alarm Input | 16 Channel, Low Level Effective, Green Terminal Interface |
| Relay Output | 8 Channel, NO / NC Programmable, Green Terminal Interface |
| Tracking Trigger Event | Zoom, Tracking, Recording, Preset, Snapshot, Alarm, etc. |
| PLAYBACK & BACKUP | |
| Sync Playback | 128 Mbps in Raid 5 Mode; 64 Mbps in single HDD Mode |
| Search Mode | Time / Date, Alarm, MD and Exact Search (accurate to second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom |
| Backup Mode | USB Device / Network / eSATA Device |
| THIRD PARTY SUPPORT | |
| Third-party Support | Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more |
| NETWORK | |
| Ethernet | 4 RJ-45 Ports (10/100 / 1000Mbps) |
| Ethernet Port | 4 Ethernet Ports Joint Working or 4 Independent 1000Mbps Ethernet Ports |
| Network Functions |
HTTP, HTTPs, TCP / IP, IPv4 / IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.) |
| Optical Fiber Interface |
2 Giga Optical Fiber Interface |
| Max User Access | 128 users |
| Smart Phone | iPhone, iPad, Android |
| Interoperability | ONVIF® 2.4, CGI Conformant |
| HARD DISK | |
| Internal HDD | 16 SATA III Ports, Up to 8 TB capacity for each HDD |
| HDD mode | Single, Raid 0/1/5/10 (Enterprise-level HDDs are recommended), Support Global HDD Hot-spare |
| eSATA | 1 eSATA Port (Please contact technical engineer to confirm the compatible device |
| SAS | 1 Mini SAS Port, for Storage Expansion |
| AUXILIARY INTERFACE | |
| Front Cover | Support Hot-swap, 7-inch HD LCD (1920 × 1080, 1280 × 1024, 1024 × 768) |
| Usb Interface | 4 USB Ports (2 USB 2.0, 2 USB 3.0 |
| RS232 | 1 Port, for PC Communication and Keyboard |
| RS485 | 1 Port, for PTZ Control |
| GENERAL | |
| Power Supply | AC100V ~ 240V, 50 ~ 60Hz |
| Power Consumption | <51w without="" hdd="" td=""> |
| Operating Conditions | -10 ° C ~ + 55 ° C (+ 14 ° F ~ + 131 ° F), 86 ~ 106kpa |
| Storage Conditions | -20 ° C ~ + 70 ° C (-4 ° F ~ + 158 ° F), 0 ~ 90% RH |
| Dimensions | 3U, 485mm x 512.9mm x 133.2mm (19.1 "x 20.2" x 5.2 ") |
| Net Weight | 19.6kg (43.2 lb) (without HDD) |
| Gross Weight | 29kg (63.9 lb) |
| Installation | Rack-mounted |
| Certifications | |
| THERE IS | EN55022, EN55024, EN50130-4, EN60950-1 |
| FCC | Part 15 Subpart B, ANSI C63.4-2014 |
| UL | UL 60950-1 and CAN / CSA C22.2 No. 60950-1 |
