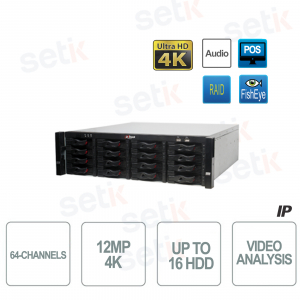

IP NVR 64 Channels 4K ULTRA-HD 12MP 16HDD Audio POS RAID Alarm - Dahua

IP NVR 64 Channels 4K ULTRA-HD 12MP 16HDD Audio POS RAID Alarm - Dahua
-55%

New Series of Dahua NVR616-64-4KS2 Ultra HD Professional IP NVRs for surveillance - 64 IP channels with resolution up to 12MP 4k, Supports H.265 + Video Compression , Up to 384Mbps broadband input. Video Outputs 2x HDMI / 1x VGA, Max 16 HDD SATA 3.5 "Support RAID mode, VIDEO ANALYSIS , 4 USB ports . Audio, Alarm, RS232, RS485, Smart Fan.



Reference: NVR616-64-4KS2

Brand: Dahua

FIND INSTALLER

€3,249.53

€7,221.18 -55%
taxes included
Tax included
 Available in 5 days

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


NVR 64 CHANNELS IP DAHUA - 4K ULTRA HD - H.265 - 384MBPS - 12 MP - VIDEO ANALYSIS - 16HDD - DAHUA
VERSION WITHOUT POE PORTS!

Prodotto marca Dahua Nvr IP 64 Channels - New 4K Series - Dahua
Up to 12MP 4K resolution - Up to 384Mbps - Video Compression up to H.265 +
Alarm / Audio - Supports 16x SATA HDD - 2x HDMI - 1x VGA - RS232 - RS485 - 4x USB Ports
Hard Disk NOT included - 24 Months warranty

4K TECHNOLOGY - ULTRA HD - WHAT DOES IT MEAN?

4K Ultra HD technology4K technology (also called ULTRA HD ) is one of the latest innovations in the field of high definition vision. 4K correspond to the resolution of 4 Full-HD, so 3840 X 2160!
Already used in the consumer electronics sector, it is finally arriving in the world of security. The new generation of DAHUA equipment, in fact, allows the support of cameras up to 12MPX on H265 standard, the new video compression that allows you to save up to 50% compared to the previous H264. Thanks to the 4K output it is also possible to view (on a 4K monitor) the image in its maximum detail.



Product details

VERSION WITHOUT POE PORTS!
NVR 64 Canali fino a 12Mpx - Serie 4K Ultra HD - Dahua

Codifica video Smart H.265+

Smart H.265 +

Smart H.265 + is the optimized implementation of the H.265 codec which uses a scene adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction useful for delivering high quality video without straining the network.

Smart H.265 + greatly reduces bit rate and storage requirements compared to standard H.265 compression

Video compressione Smart H.265+

4K Risoluzione Ultra HD New ULTRA HD 4K Technology !
Even higher resolution than FULL-HD!
More detail available, greater sense of depth and realism.
64 Canali

64 Channels H.264 / H.265
Recording up to 12 Megapixels!

Resolution \ frame ratio and variable bit rate ( 16Kbps ~ 20Mbps ) for single channel

All channels synchronize Playback and GRID Interface in real time
Up to 384Mbps of bandwidth

Questo DVR supporta telecamere per la videosorveglianza con standard ONVIF® Supports ONVIF® Version 2.4 IP cameras
Questo DVR supporta telecamere per la videosorveglianza Supports IP cameras: Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC,

LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet


(operation with the models proposed here is to be verified from case to case)
Funzione Video Analisi

This video recorder supports some functions of Video Analysis:

Heat Map, People Counting, Object Detection and Analysis in
movement, abandoned or lost, Tripwire


Questo NVR presenta la visibilità da remoto fino a 20 utenti simultanei

Multiple network monitoring: Web viewer, CMS (DSS / PSS) & DMSS (best CCTV software for Mobile)
Applicazione DMSS di Dahua. Software mobile per la videosorveglianza

Collegamento a dispositivi POS

Possibility of connecting POS devices, obtaining all the information superimposed on the channel.

Possibility of searching pos by date or transaction

Possibilità di collegamento dispositivi POS

Funzione POS

Funzione Dewarping

Fisheye dewarping

Fisheye dewarping solves the problem of distortion in the circular panoramic view.

The NVR offers various dewarping modes for different types of installations and configurations that enhance the video, both in live and in playback mode.

Each dewarping mode offers options to adjust each scene.

Funzione Dewarping
Automatic Network Replenishment ANR (Automatic Network Replenishment). This feature allows you to archive locally when the network is temporarily unavailable or congested. Normally in case of events of this type, the NVR stops recording, this type of NVR instead compensates for this problem. The NRA also manages the information flow to the NVR thus avoiding network congestion

Immagine esempio funzione ANR ( Automatic Network Replenishment )
Hard Disk

Supports 8x 3.5 "AV-GP SATA Audio / Video Hard Disk ( Max 10TB each)
It also works without a hard disk even remotely!

ATTENTION: use specific audio / video discs on NVR systems.
For more information, read our dedicated article .

HARD DISK NOT INCLUDED!

Ingressi USB This NVR features 4x USB ports (2 Rear USB3.0, 2 Front USB2.0)

RAID function:

The RAID mode allows you to replicate the contents of a disk on a second disk, thus ensuring data reliability in case of disk failure and continuity of service.

4K Risoluzione Ultra HD

Equipped with 2 HDMI ports.

HDMI1 with resolution up to 4K!

New ULTRA HD 4K Technology !
Even higher resolution than FULL-HD!
More detail available, greater sense of depth and realism.

Uscita VGA This product features 1x VGA ports with 1080P resolution!
Questo NVR presenta ingressi e uscite allarme With alarm relay 16 inputs + 8 outputs for burglar alarms or other instruments and to activate external peripherals (gates, sirens, etc.)
Questo DVR presenta ingressi / uscite audio This DVR features 1 input and 1 bi-directional RCA audio output
Funzione Dynamic DNS Dynamic DNS: allows to reach the NVR even in case of Dynamic IP
Funzione Pentaplex Pentaplex: Recording, Live View, Recording History, Remote, Backup
Funzione Sovrascrittura Ability to have the disk overwrite when full or have the disk overwrite after X days. NVR restart programming to ensure greater stability over time
Funzione invio email in caso di notifica This NVR has email sending.
In case of events (camera obfuscation, signal cut, motion, broken disk, network problems etc ...), it is able to send an email report, a sound notification or upload videos & screenshots via FTP
Funzione Motion Motion function. The recording starts when the camera detects motion.
Porta Ethernet RJ-45 ( 10 / 100 / 1000 Mbps) 2x RJ-45 (10/100 / 1000Mbps)
Porta RS232 RS 232 to communicate with PC and keyboard
1 RS 485 port for PTZ commands (remotely controllable cameras)

SMART FAN

The SMART FAN is an intelligent fan which can turn on or off automatically based on

CPU temperature. This function can effectively reduce the fan noise a
provide better user experience while at the same time extending the life of the fan.

Questo NVR è coperto da garanzia 24 mesi italiana

This product is covered by a 24 month warranty.

Data sheet

Model: DVR NVR616-64-4KS2
SYSTEM
Main Processor Intel Quad-core Processor
Operating System Embedded LINUX
VIDEO & AUDIO
IP Camera Input 64 Channel
Two-way talk 1 Channel Input, 1 Channel Output, RCA
DISPLAY
Interface 2 HDMI (up to 3840 x 2160, Different Source),
1 VGA
Resolution

3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768

Multi-screen Display

1st Screen: 1/4/8/9/16/25/36
2nd Screen: 1/4/8/9/16

OSD Camera title, Time, Camera lock, Motion detection, Recording
RECORDING
Compression H.265 / H.264 / MJPEG
Resolution

12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1 etc.

Record Rate

384Mbps

Bit Rate 16Kbps ~ 20Mbps Per Channel
Recording Mode Manual, Schedule (Regular, MD (Motion Detection), Alarm, IVS), Stop
Recording Interval 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
VIDEO DETECTION & ALARM
Trigger Events Recording, PTZ, Tour, Alarm Out, Video Push, Email, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering
Alarm Input 16 Channel, Low Level Effective, Green Terminal Interface
Relay Output 8 Channel, NO / NC Programmable, Green Terminal Interface
Tracking Trigger Event Zoom, Tracking, Recording, Preset, Snapshot, Alarm, etc.
PLAYBACK & BACKUP
Playback 128 Mbps in Raid 5 Mode;
64 Mbps in single HDD Mode
Search Mode Time / Date, Alarm, MD and Exact Search (accurate to second)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom
Backup Mode USB Device / Network / eSATA Device
THIRD PARTY SUPPORT
Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
NETWORK
Ethernet 4 RJ-45 Ports (10/100 / 1000Mbps)
Ethernet Port 4 Ethernet Ports Joint Working or 4 Independent 1000Mbps Ethernet Ports
Network Functions

HTTP, HTTPs, TCP / IP, IPv4 / IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.)

Optical Fiber Interface

2 Giga Optical Fiber Interface

Max User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF® 2.4, CGI Conformant
HARD DISK
Internal HDD 16 SATA III Ports, Up to 8 TB capacity for each HDD
HDD mode Single, Raid 0/1/5/10 (Enterprise-level HDDs are recommended), Support Global HDD Hot-spare
eSATA 1 eSATA Port (Please contact technical engineer to confirm the compatible device)
SAS 1 Mini SAS Port, for Storage Expansion
AUXILIARY INTERFACE
Front Cover Support Hot-swap
Usb Interface 4 USB Ports (2 USB 2.0, 2 USB 3.0)
RS232 1 Port, for PC Communication and Keyboard
RS485 1 Port, for PTZ Control
GENERAL
Power Supply AC100V ~ 240V, 50 ~ 60Hz
Power Consumption <51w without="" hdd="" td="">
Fan Smart fan, automatically adjust running speed
Operating Conditions -10 ° C ~ + 55 ° C (+ 14 ° F ~ + 131 ° F), 86 ~ 106kpa
Storage Conditions -20 ° C ~ + 70 ° C (-4 ° F ~ + 158 ° F), 0 ~ 90% RH
Dimensions 3U, 485mm x 512.9mm x 133.2mm (19.1 "x 20.2" x 5.2 ")
Net Weight 17.6kg (38.8 lb) (without HDD)
Gross Weight 27kg (59.5 lb)
Installation Rack-mounted
Certifications
THERE IS EN55022, EN55024, EN50130-4, EN60950-1
FCC Part 15 Subpart B, ANSI C63.4-2014
UL UL 60950-1 and CAN / CSA C22.2 No. 60950-1

Further details

NVR608-64-4KS2

Download

Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
