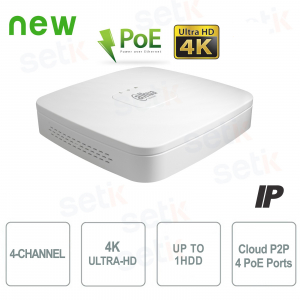

IP NVR 4K ULTRA-HD 4 Channels 12MP 1HDD PoE P2P - Dahua

BEST PRICE -58%

IP NVR video recorder for surveillance 4 channels up to 12Megapixel 4K ULTRA-HD , Max 80Mbps bandwidth, Video Compression Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG, 1 HDMI, 1 VGA, Max 1HDD SATA 20TB, 2 USB Ports, 1 Input + 1 Audio Output, 1 RJ-45 10/100Mbps port. Compatible ONVIF , Cloud P2P . 4 PoE Ports . Lite Series. NVR2104-P-4KS3

Reference: NVR2104-P-4KS3

Brand: Dahua

EAN: 6923172573520

FIND INSTALLER

https://www.setik.biz/en/recording-devices/2464-dahua-nvr2104-p-4ks3-nvr-ip-4k-ultra-hd-4-channels-12mp-1hdd-poe-p2p-dahua.html

€155.26

€369.66 -58%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Hurry up! Only a few pieces left in our warehouse!

discover the available quantity

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

Description Product Details Technical Data Sheet Further Details Download

4 CHANNEL 4K ULTRA-HD IP NVR UP TO 12 MEGAPIXEL - H.265+ - 4 POE PORTS - DAHUA
VERSION WITH 4 POE PORTS!

4 Channel IP Nvr - New 4K Series - Dahua
4 4K ULTRA-HD channels up to 12Megapixel - Max 80Mbps broadband - Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
ONVIF® compatible - 1 Input + 1 Audio Output - Cloud P2P
The color may vary from white to black depending on the arrivals. 4 PoE Ports - 24 month warranty

4K TECHNOLOGY - ULTRA HD - WHAT DOES IT MEAN?
4K technology (also called ULTRA HD ) is one of the latest innovations in the field of high definition vision. 4K corresponds to the resolution of 4 Full-HD, therefore 3840 X 2160! Already used in the consumer electronics sector, it is finally arriving in the world of security too. The new generation of DAHUA equipment, in fact, allows support for cameras up to 12MPX on the H265 standard, the new video compression that allows you to save up to 50% compared to the previous H264. Thanks to the 4K output it is also possible to view (on a 4K monitor) the image in maximum detail.

4K TECHNOLOGY - ULTRA HD - WHAT DOES IT MEAN?

4K Ultra HD technology 4K technology (also called ULTRA HD ) is one of the latest innovations in the field of high definition vision. 4K corresponds to the resolution of 4 Full-HD, therefore 3840 X 2160!
Already used in the consumer electronics sector, it is finally arriving in the world of security too. The new generation of DAHUA equipment, in fact, allows support for cameras up to 12MPX on the H265 standard, the new video compression that allows you to save up to 50% compared to the previous H264. Thanks to the 4K output it is also possible to view (on a 4K monitor) the image in maximum detail.

Product details

	This NVR supports video compression in Smart H.265+; H.265; Smart H.264+; H.264; MJPEG Optimized for Mobile
	This NVR features 4 PoE ports
	New ULTRA HD 4K Technology! Even higher resolution than FULL-HD! More detail available, greater sense of depth and realism.
	4 channels up to 4K ULTRA-HD 12 Megapixe l in preview and playback ! Recording Resolution: 12MP; 8MP; 5MP; 4MP; 3MP; 1080p; 720p; Q1 Max 80Mbps of incoming broadband 16Kbps ~ 20Mbps per channel
	Supports ONVIF® IP cameras Version 2.4
	Supports IP cameras: Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and others... (operation with the models proposed here must be verified on a case-by-case basis)
	Cloud function with Easy4IP
	Compatible with all mobile devices: iPad, Android, iPhone,
	Equipped with: 1 SATA III Port, up to 20 TB capacity. (Hard disk not included) ATTENTION: on NVR systems use specific audio/video discs. For more information, read our dedicated article .
	ANR (Automatic Network Replenishment). This feature allows you to store locally when the network is temporarily unavailable or congested. Normally in case of events of this type, the NVR stops recording, but this type of NVR overcomes this problem. The ANR also manages the information flow to the NVR, thus avoiding network congestion
	Motion function. Recording starts when the camera detects movement.
	1x RJ-45 (10/100Mbps)
	This NVR features 2x USB Ports
	This product features 1x HDMI port , in addition to the standard VGA
	This DVR features 1 audio input and 1 audio output
	Dynamic DNS: allows you to reach the NVR even in the case of a Dynamic IP
	This NVR has email sending. In case of events (camera blurring, signal cutting, motion, broken disk, network problems etc...), it is able to send a report via email, a sound notification or upload videos & screenshots via FTP Also records and sends snapshots to external Cloud Storage (Dropbox, Skydrive)
	This product is covered by a 24 month warranty.

Data sheet

Model: DVR	NVR2104-P-4KS3
SYSTEM
Main Processor	Industrial-grade processor
Operating System	Embedded LINUX
Operating Interface	Web, Local GUI
TO THE
AI by Recorder	SMD Plus
AI by Camera	Perimeter protection; SMD Plus
PERIMETER PROTECTION
Perimeter Performance of AI by Camera (Number of Channels)	4 channels
SMD PLUS
SMD Plus by Recorder	4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD Plus by Camera	4 channels
VIDEO&AUDIO
Access Channel	4 Channel
Network Bandwidth	80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
Resolution	12MP; 8MP; 5MP; 4MP; 3MP; 1080p; 720p; Q1
Decoding Capability	AI disabled: 1-channel 12 MP@30 fps; 1-channel 8MP@30fps; 2-channel 5MP@30fps; 3-channel 4MP@30fps; 6-channel 1080p@30 fps AI enabled: 1-channel 8 MP@30 fps; 1-channel 5MP@30fps; 2-channel 4MP@30fps; 4-channel 1080p@30fps
Video Output	1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display	1/4
Third-party Camera Access	ONVIF
STANDARD COMPRESSION
Video Compression	Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression	G.711a; G.711u; PCM; G726;
NETWORK
Network Protocol	HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; IP Filter; DDNS; IP Search (Supports IP camera, DVR, NVS, etc.); P2P; Auto Registration
Mobile Phone Access	iOS; Android
Interoperability	ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK
Browsers	Chrome; IE; Safari; Edge; Firefox
RECORDING PLAYBACK
Multi-channel Playback	Up to 4 channels
Record Mode	General, motion detection; intelligent; alarm
Backup Method	USB device and network
Playback Mode	Instant playback; general playback; event playback; tag playback; smart playbackl
ALARM
General Alarm	Motion detection; camera external alarm; PIR alarm
Anomaly Alarm	Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline
Intelligent Alarm	Perimeter protection; SMD Plus
Alarm Linkage	Recordings; snapshot; buzzers; log; presets; e-mail; tours
PORT
Audio Input	1-channel RCA
Audio Output	1-channel RCA
Alarm Input	NA (2 channels are optional)
Alarm Output	NA (1-channel 12V 1A output is optional)
HDD Interface	1 SATA port. Each disk can contain up to 20 TB. this limit varies depending on the environment temperature.
USB	2 (2 rear USB 2.0 ports)
HDMI	1
VGA	1
Network Port	1 (10/100 Mbps Ethernet port, RJ-45)
PoE Port	4 ports, 10/100 Mbps, IEEE 802.3 af/at
GENERAL
Power Supply	53V DC, 1.22A
Power Consumption	Total output of NVR is <10 w="" without="" hdd="" total="" output="" power="" of="" poe="" is="" 36="" the="" maximum="" a="" single="" port="" 25="" 5="" td="">
Net Weight	0.48 kg (1.06 lb)
Gross Weight	1.42 kg (3.13 lb)
Product Dimensions	204.6 mm × 206.4 mm × 45.6 mm(8.06" × 8.12" × 1.80") (W × D × H)
Packaging Dimensions	364.0 mm × 96.0 mm × 261.0 mm(14.33" × 3.78" × 10.28")(W × D × H)
Operating Temperature	–10 °C to +55 °C (14 °F to +131 °F)
Storage Temperatures	–20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity	10%–93% (RH), non-condensing
Installation	Rack or desktop
Certifications	CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017 +A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
