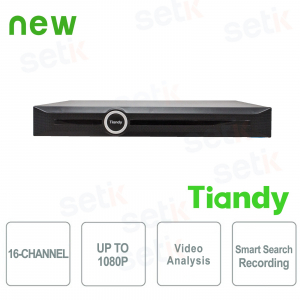

NVR 16-Channel 1080P 2HDD Video Analysis and Smart Search&Recording - Tiandy

SUPER-SALES -50%

Surveillance IP Video Recorder (NVR) Tiandyup to 16-Channel @1080P, Video Output HDMI/VGA and 2 USB ports. Support 2x Hard Disk SATA 3,5" up to 8TB each (not included), Audio, Alarm, Video Analysis, Smart Search&Recording. Compatible with ONVIF. TC-NR4016M7-S2

Reference: TC-NR4016M7-S2

Brand: Tiandy

EAN: 8058258763491

FIND INSTALLER

https://www.setik.biz/en/recording-devices/2122-tiandy-tc-nr4016m7-s2-nvr-16-canali-1080p-2hdd-video-analisi-e-smart-searchrecording-tiandy.html

€87.47

€174.95 -50%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Hurry up! Only a few pieces left in our warehouse!

discover the available quantity

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

Description Product Details Technical Features Further Details Video Download

NVR IP 16-CHANNEL UP TO 1080P - VIDEO ANALYSIS/ SMART SERACH&RECORDING - UP TO 2HDD - TIANDY

Surveillance Video Recorder NVR 16-Channel IP Tiandy with standard H.264, resolution up to 1080P recording, Video Analysis e Smart Search&Recording. ANR and N+1 Hot Standby features. Video HDMI and VGA output, 2 USB Ports. Support 2x Hard Disk SATA 3,5" up to 8TB (not included), Audio input and output, Alarm Input. Compatible with ONVIF® TC-NR4016M7-S2
Hard Disk not included!

Product Details

WHO IS TIANDY?
Learn more about one of the chinese BRAND LEADER in IP security world!

Read the article! (italian language)

- IP Video Surveillance Recorder 16-Channel - Tiandy
- Resolution up to 1080P recording
- Bandwidth: 64Mbps
- Video Output HDMI and VGA up to 1920x1080 resolution
- 1 RJ-45 100/1000Mbps
- Remote View
- Compatible with browser: IE8,IE9,IE10,IE11,Chrome30,Firefox24
- Mobile Software: P2P&DDNS for system IOS and Android (Tiandy: TD Viewer / EasyLive, Neutral: Smartwatchman)
- Support Video Analysis (VCA) with Tiandy Cameras (Tripwire/Perimeter)
- Corridor Mode with Tiandy cameras
- Smart Search&Recording, Plug&Play
- Support 2 Hard Disk SATA 3,5" up to 8TB (not included)
- 1 Input + 1 Output for Audio
- 1 Alarm Input
- Feature ANR
- Feature N+1 Hot Standby
- Certifications: CE,FCC
- Thenguage: English, Spanish, Korean, Italian,Turkish,French, Thai, Russian, Simple Chinese, Traditional Chinese,Polish
- Dimension: 43.6mm×341mm×274mm

Technical Features

Video Compression	H.264
IP Video Input	16-ch
HDMI Output	1-ch Resolution: 1920x1080,1280x720,800x600,1024x768,1366x768,1440x900,1280x800
VGA output	1ch Resolution: 1920x1080,1280x720,800x600,1024x768,1366x768,1440x900,1280x800 Adjustable Output Mode; Self-adaptive Resolution
Frame Rate	Mainstream 25fps / Substream 25fps
Hard Disk	2 SATA for 2 HDDs
USB	2 x USB2.0
Video Analytics	16-ch Tiandy Camera VCA Process (Tripwire and Perimeter)
ONVIF®	Onvif(Profile S)
Network Interface	1 RJ-45 100/1000Mbps Self-adaptive Ethernet Interfaces
Corridor Mode	Y, 16:9 to 9:16, Only for Tiandy Cameras
Smart Recording	Set Recording Bit Rate for Different Time
Hot Standby	N+1
Smart Search	Quickly Search Target VCA Videos , Only for Tiandy Cameras
Alarm Recording	Pre Alarm Default 10s ( 5/10/15/60s Optional) , Post Alarm Default 10s (10/15/30/60/600s Optional ).
Thenguage	English, Spanish, Korean, Italian,Turkish,Thai, Russian, Traditional Chinese, French, Polish
Power Supply	DC12V/3A
Consumption (without HDD)	?10W
Working Temperature	-10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)
Working Humidity	10 % ~ 90 %
Dimensions	43.6mm×341mm×274mm
Weight	1.6KG (without HDD), 2.8KG (with Packing Box)

Further Details

	This video recorder support up to 16 cameras - Resolution up to 1080P recording - Bandwidth: 64Mbps
	VCA o Video Content Analysis is the sum of video analysis features embedded in Tiandy products. Those feature are very useful to detect specific actions, and not only a movement in a determinate area, that makes this products one step ahead from commons cameras. The Video Analysis Video Analysis allows to detect a specific type of movements and assign those movements to preset actions reducing false alarms and detecting more complex events. This video recorder support up to 16 Tiandy Cameras with Video Analysis: - Tripwire Useful to detect the crossing of a “virtual” line. Some practical examples of Tripwire is, for example, in subway station platform, near gates or restricted areas. Tripwire allows to set a series of parameters as size, direction and further more to avoid false alarm. - Perimeter The Perimeter is another typology of complex analysis managed from Tiandy, the principals are similar to the tripwire features but the perimeter is an area where, after a trans passing event, will be send an alert. Very useful to monitor restricted areas, private areas and gates.
	This video recorder support Corridor Mode only with Tiandy cameras From 16:9 to 9:16 Corridor Mode. Is often required to frame a vertical area, since a normal horizontal format is not the best solution since a normal horizontal format is not the best solution. This is why many devices embedd the Corridor Mode that will allows to obtain from the camera a "vertical" video flux.
	This video recorder allows Smart Recording The NVR Smart Tiandy offers the possibility to set differents modaility of recording, according to exigency of the users, as the kind of alarm, timing and reslution.
	This video recorder allows Smart Search The smart research allows to find the frames which contain subjects faster, analayzing the photograms of the video.
	Feature N+1 Hot Standby In case of malfunctioning of the primary system, the hot standby enter immediately in function.
	Automatical donwload of the video from SD Card inside the camera, storage during disconnection. (it works only with IP Tiandy cameras with ANR feature)
	This video recorder support fino a 2HDD SATA 3,5" up to 8TB each (not incuded)
