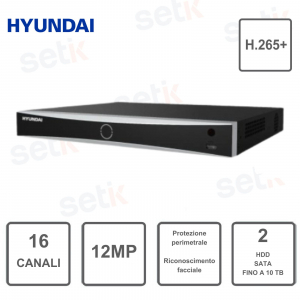

Hyundai 16 Channel NVR - Up to 12MP - Input-Output Bandwidth 160Mbps

Hyundai 16 Channel NVR - Up to 12MP - Input-Output Bandwidth 160Mbps
NEW

HYU-1118- SF-NVR8216A-4K-16P // 16 Channel IP NVR with resolution up to 12 MP 12Megapixel, 160Mbps input bandwidth, 160Mbps output - Codec H.264+/H.265+, 1 HDMI (4K Out), 1 VGA (1080p out), 2 USB 2.0 , two-way audio, SATA for 2xHDD up to 10TB (not included) - Video analysis (perimeter protection, facial recognition), intelligent search and Motion Detection 2.0



Reference: HYU-1118

Brand: Hyundai Security

Manufacturer Object ( [id] => 30 [name] => Hyundai Security [description] =>

Born in Corea, Hyundai Corporation is a leader in the creation of digital products and distinguishes itself for the wide range of industrial, electrical and electronic products. Hyundai Corporation has entered the CCTV field by developing and projecting security devices such as high level recorders and cameras, both for their technology and for their design. The main aim of the Corean company is to guarantee the protection and safety of people inside their houses, offices or means of transport.

All Hyundai video surveillance systems are appreciated and recommended by industry professionals especially because the majority of the range is based on Hikvision technology, which is why they are fully compatible.

The official distributors of Hyundai Security are few because there are few realities, like Setik, authorized to distribute it. At the basis of this policy is the will to protect and safeguard the brand, thus avoiding aggressive channel choices.

Hyundai Security

[short_description] =>

Videosorveglianza Hyundai

Hyundai Security products for the protection and safety, to be installed in your home, office or means of transport.

[id_address] => [date_add] => 2018-10-29 15:00:38 [date_upd] => 2021-06-18 12:43:04 [link_rewrite] => hyundai-security [meta_title] => Hyundai Security [meta_keywords] => Hyundai Recorder,Hyundai Security CCTV ,Hyundai Security,Hyundai CCTV Cameras [meta_description] => Hyundai Corporation projects and develops seucrity CCTV systems by offering innovative and advanced devices, both for their technology and their design [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


SSD1TB SHOCK PRICE!×


 SSD1TB SHOCK PRICE!
Same price as the NON-SSD version!
Only 100 pieces!
  Buy now >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

Hyundai Security

HYUNDAI NVR 16 CHANNEL IP RECORDER - RESOLUTION UP TO 12 MP - 160MBPS IN / 160 MBPS OUT - HDMI - VGA - SATA FOR 2 HDD UP TO 10 TB - 16 POE+ PORTS

Hyundai Security
HYU-1118- SF-NVR8216A-4K-16P//16 Channel IP NVR with up to 12 MP 12Megapixel resolution, 160Mbps input bandwidth, 160Mbps output - H.264+/H.265+ codec, 1 HDMI (4K Out), 1 VGA (1080p out), 2USB 2.0, two-way audio, SATA for 2xHDD up to 10TB (not included) - Video analytics (perimeter protection, facial recognition), intelligent search and Motion Detection 2.0 - 4 inputs / 1 alarm output - 1 RJ45 Gigabit, 2 USB - 100V~240V AC - 16 PoE+ ports - Dimensions: 385 (W) x 52 (H) x 315 mm - Weight: ≤3 kg - Hyundai Security

Product details

H265+ Video Compressione This NVR supports compression standards up to H.265+

H.265+: What are the benefits?

- Save up to 90% on bandwidth

- Reduce storage space

- Longer recording times on analog surveillance systems with the same storage space.

Standard di Video Compressione H.265+

Questo NVR presenta 32 canali

16 Channels with resolution up to 12 Megapixel 12 MP!

Synchronized playback up to 16 channels!

Max 160Mbps incoming bandwidth

Max 160Mbps output bandwidth

4K Ultra HD Resolution New ULTRA HD 4K Technology!
Resolution even higher than FULL-HD!
More detail available, greater sense of depth and realism.
HD Hard Disk

Supports 2x SATA Audio / Video Hard Disk up to 10TB

WARNING: On NVR systems use specific audio/video disks.
For more information, read our dedicated article .

HARD DISK NOT INCLUDED



SMART SEARCH

This feature allows you to quickly obtain various motion videos by simply drawing an area during playback. Very useful in case you encounter an emergency.

Funzione Smart Search


HDMI port with resolution up to 4K Ultra HD and VGA port with resolution up to 1080p

Questo DVR presenta ingressi / uscite audio

This NVR features 1 input + 1 RCA Audio output

Two-way audio!

Porta USB IN This NVR features 2xUSB 2.0
Questo DVR presenta 2 porte RJ-45 ( 10 / 100 / 1000Mbps) This NVR features 1 RJ45 Port (10/100/1000Mbps)

Technical data sheet

MODEL HYU-1118
Camera inputs 16 IP
Compression format H.265+, H.265, H.264+, H.264+, H.264
Incoming bandwidth 160Mbps
Outgoing bandwidth 160Mbps
Bidirectional audio 1 RCA input / 1 RCA output
Recording resolution 12MP, 8MP, 6MP, 5MP, 5MP, 4MP, 3MP, 1080P, UXGA, 720P, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
AI in the recorder Perimeter protection: 2 channels at 4MP with person and vehicle recognition.
Face recognition: 1 channel at 8MP, 4 channel face comparison
Motion detection 2.0: All channels at 4MP (8MP with enhanced SVC mode enabled)
AI support from compatible cameras Perimeter protection: All channels
Motion detection 2.0: All channels
Decoding capability AI enabled: 1 channel 12MP at 30 fps, 2 channels 8MP at 30 fps, 4 channels 4MP at 30 fps, 8 channels 1080P at 30 fps
AI off: 2 channels 12MP at 30 fps, 3 channels 8MP at 30 fps, 6 channels 4MP at 30 fps, 12 channels 1080P at 30 fps
Alarm 4 In/ 1 Out
Internal capacity 2 SATA HDD up to 10TB (sold separately)
Self-adaptive RJ45 Ethernet (10/100/1000M) network interface
Network protocols TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Back panel incorporated 16 independent (100Mbps) PoE+ 802.3af/at PoE+ ports
PoE delivery ≤200W
Power supply 100V ~ 240V AC, 50/60Hz
consumption ≤15W (without hard drives and PoE consumption)
Operating temperature -10°C ~ +55°C
Relative humidity 10 ~ 90%
Dimensions 385 (W) x 52 (H) x 315 mm
Weight ≤3kg

Further details

No additional details

Download

Download the English Brochure (not available)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
