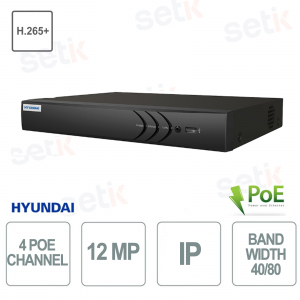

Hyundai HYU-1114 NVR - 4-channel IP PoE with recording resolution up to 12 MP , 1 HDMI (4k), 1 VGA (1080p), 2USB 2.0, Perimeter protection, face recognition motion detection 2.0, 1 RJ45 (10/100M), Two-way audio. Video compression up to H.265+. 40/80 Mbps Bandwidth. Maximum 1 SATA HDD up to 10 TB (Not Included).
FIND INSTALLER
HYUNDAI NVR RECORDER 4 POE CHANNELS IP 12 MEGAPIXEL - BANDWIDTH 40/80 - HYU-1114
Hyundai HYU-1114 NVR - 4-channel PoE IP with recording resolution up to 12 MP , 1 HDMI (4k), 1 VGA (1080p), 2USB 2.0, perimeter protection, face recognition and motion detection 2.0, 1 RJ45 (10/100M), Two-way audio. Video compression up to H.265+. 40/80 Mbps Bandwidth. Power consumption ≤10W. PoE output ≤50W. Power supply: 48V DC, 1.35A Maximum 1 SATA HDD up to 10 TB (Not Included). Dimensions: 320 (W) x 48 (H) x 240 mm - Weight: ≤1 kg
Product details
  | This NVR supports compression standards up to H.265+ H.265+: What are the benefits? - Save up to 90% on bandwidth - Reduce storage space - Longer recording times on analog surveillance systems with the same storage space. |
 | 4 Channel PoE IP with resolution up to 12 Megapixel! |
 | Supports 1x SATA Hard Disk up to 10TB HARD DISK NOT INCLUDED
|
 | This NVR features 1x HDMI port (up to 4K) and 1x VGA port (1080P) |
 | This NVR features 2x USB Ports (2x 2.0) |
 | This NVR features 1 self-adaptive RJ45 port (10/100M) |
Technical data sheet
| 4 IP camera inputs |
| H.265+, H.265, H.264+, H.264+, H.264 compression format |
| Incoming bandwidth: 40 Mbps |
| Outgoing bandwidth: 80 Mbps |
| Simultaneous 1080P VGA and HDMI 4K video outputs (also allows independent outputs) |
| Bi-directional audio: 1 RCA input / 1 RCA output |
| Recording resolution: 12MP, 8MP, 6MP, 5MP, 4MP, 4MP, 3MP, 1080P, UXGA, 720P, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF |
| AI on recorder: |
| Perimeter protection: 1 channel at 4MP with person and vehicle recognition. |
| Face recognition: 1 channel at 4MP |
| Motion detection 2.0: All channels at 4MP (8MP with enhanced SVC mode enabled) |
| AI support from compatible cameras |
| Perimeter protection: All channels |
| Face recognition: 1 channel 4MP |
| Motion detection 2.0: All channels |
| 4-channel sychronized playback |
| Decoding capacity: |
| AI enabled: 1 channel 12MP @ 30 fps, 1 channel 8MP @ 30 fps, 3 channels 4MP @ 30 fps, 6 channels 1080P @ 30 fps |
| AI off: 1 channel 12MP @ 30 fps, 2 channels 8MP @ 30 fps, 4 channels 4MP @ 30 fps, 8 channels 1080P @ 30 fps |
| Internal capacity for 1 SATA HDD up to 10TB (sold separately) |
| Smart search/intelligent playback for improved playback efficiency |
| Intelligent search of selected area in the video and intelligent playback to improve playback efficiency |
| Video stream encryption technology over TLS |
| Auto-adaptive RJ45 (10/100M) Ethernet network interface |
| Network protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| Onvif (S/G), SDK, ISAPI support |
| Up to 128 remote connections |
| Communication ports: 2 USB 2.0 ports |
| Rear panel incorporates 4 independent (100Mbps) PoE+ 802.3af/at ports |
| PoE delivery: ≤50W |
| Power supply: 48V DC, 1.35A |
| Consumption: ≤10W (without hard drives and PoE consumption) |
| Operating temperature: -10°C ~ +55°C |
| Relative humidity: 10 ~ 90% |
| Dimensions: 320 (W) x 48 (H) x 240 mm |
| Weight: ≤1kg |
