5 in 1 2 HDMI, 4 USB, RS485, RS232, support up to 8HDD , 8 inputs + 1 Audio output, 8 inputs + 6 Alarm outputs, POS and IoT support and Video Analysis, Cloud P2P. Rack mountable. XVR5808S-I3
FIND INSTALLER
€604.34
€1,405.44 -57%LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

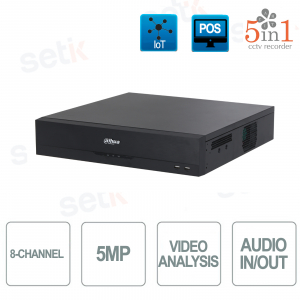

XVR DAHUA 8 CHANNELS WITH 5 TECHNOLOGIES IN 1 - UP TO 5MP - 1080P - 8HDD - AUDIO AND ALARM
HDCVI/AHD/TVI/ANALOG/IP / Up to 5MP, SMD Plus, Onvif
Video Compression up to H.265+ / Video Analysis / 8 inputs + 1 Audio output / 8 inputs + 6 Alarm outputs / IoT & POS
Product details
 | DAHUA X SERIES If you want to learn more about this new series of Dahua 5 in1 XVR recorders , read the article we wrote! |
 | 5 Technologies in 1! This XVR supports 5 different technologies ( HDCVI/AHD/TVI/ANALOG/IP ) |
 | Onvif is the most important standard in the IP world. Being Onvif guarantees a wide range of IP devices compatible with each other (DVRs/cameras). This XVR supports ONVIF® version 21.06 |
  | This XVR features compression standards up to H.265+ H.265+: What are the advantages? - Savings of up to 90% on bandwidth - Reduction of storage space - Longer recording times on analog surveillance systems with the same storage space. |
 | This XVR recorder features 8 analog channels Recording resolution up to 5 MP |
 |
Possibility of connecting POS devices, obtaining all the information superimposed on the channel. Possibility of pos search by date or transaction |
| This video recorder supports Video Analysis (IVS) on all channels (up to 10 rules per channel (Max 2)), Face Detection (only on the first channel) and Intelligent Search (Smart Search) VIDEO ANALYSIS (IVS) - Line crossing - Face recognition - Moving objects
|
 | This XVR features Cloud p2p function via: EASYVIEWER and DMSS
|
 | Supports 8x SATA Audio/Video Hard Drives up to 8TB! (NOT INCLUDED!)
|
 | This XVR features 4x USB Port (2 USB 2.0, 2 USB 3.0) |
 | This XVR features 2 HDMI PORTS. HDMI1 port with resolution up to 1080p! |
 | This XVR features 1 VGA port |
 | This XVR features 16 Audio Inputs + 1 BNC Audio Output |
 | With alarm relay 16 inputs + 6 outputs for inputs from burglar alarms or other instruments and to activate external peripherals (gates, sirens, etc.) |
 | 2 RJ45 Ports (1000M) |
 | RS 232 to communicate with PC and keyboard |
| 1 RS485 port |
 | Motion function. Recording starts when the camera detects movement. |
 | This product is covered by a 24 month warranty. |
Data sheet
| Model: XVR | XVR5808S-I3 |
| SYSTEM | |
| Main Processor | Embedded processors |
| Operating System | Embedded LINUX |
| Operating Interface | Web; Local GUI |
| Perimeter Protection | |
| Perimeter Performance of AI by Camera (Number of Channels) | Advanced Model: 2 channels, 10 IVS for each channel General Model: 4 channels, 10 IVS for each channel |
| Face Detection | |
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
| Face Detection Performance of AI by Recorder (Number of Channels) | 2 channels (up to 12 face images/s) |
| Face Recognition | |
| Face Database Capacity | Up to 10 face databases with 10,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries®ions and state can be added to each face image |
| Face Recognition Performance of AI by Recorder (Number of Channels) | 2 channels |
| SMD Plus | |
| SMD Plus by Recorder | 8 channels: Secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change |
| Audio and Video | |
| Analog Camera Input | 8 BNC ports, CVI access by default, supports HDCVI/ AHD/TVI/CVBS auto-detect |
| Input Chamber | 1. CVI: 5MP@25/30fps; 4MP@25/30fps; 1080p@25/30fps, 720p@50/60fps; 720p@25/30fps. 2. TVI: 5MP@25/30fps; 4MP@25/30fps; 3MP@25/30fps; 1080p@25/30fps; 720p@25/30fps. 3. AHD: 5MP@25/30fps; 4MP@25/30fps; 3MP@25/30fps; 1080p@25/30fps; 720p@25/30fps. |
| IP Camera Input | Up to 24 channels of IPC access 8 IP channels by default + 16 channels (analog channels are converted to IP channels) incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps *After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled. |
| Encoding Capacity | Main stream: All channels 5M-N@(1 fps–10 fps); 4M-N@ (1 fps–15 fps); 1080p@(1fps–15fps); 1080N@(1 fps– 25/30 fps); 720p@(1fps–25/30fps); 960H@(1fps–25/30fps); D1@(1fps–25/30fps); CIF@(1 fps–25/30 fps) Sub stream: D1@(1 fps–15 fps); CIF@(1fps–15fps) |
| Dual-stream | Yes |
| Video Frame Rate | PAL: 1 fps–25 fps NTSC: 1 fps–30 fps |
| Video Bit Rate | 32kbps–6144kbps |
| Audio Sampling | 8kHz, 16bit |
| Audio Bit Rate | 64kbps |
| Video Output | 2HDMI,1VGA,1TV Resolution VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 It changes to 1920 × 1080, 1280 × 1024, 1280 × 720 when Face or IVS&SMD is selected in AI Mode. *Heterogeneous video sources output for HDMI2 is configurable. |
| Multi-screen Display | When IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled: 1/4/8/9/16/25 |
| Third-party Camera Access | ONVIF®; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung |
| Compression Standard | |
| Video Compression | AI Coding; H.265+; H.265; H.264+; H.264 |
| Audio Compression | G.711a; G.711u; PCM |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK |
| Browsers | Chrome, IE9 or later, Firefox |
| Network Mode | Single-address mode |
| Recording Playback | |
| Disk group | Yes |
| Alarm | |
| General Alarm | Motion detection; video loss; tampering; local alarm |
| Anomaly Alarm | No disks; storage errors; disk full; offline camera; IP conflict; MAC conflict |
| Intelligent Alarm | Face detection; face recognition; perimeter protection |
| Alarm Linkage | Record; snapshot (panoramic); IPC external alarm output; access controller; voice prompts; buzzers; log; presets; e-mail |
| Ports | |
| TV Output | Yes |
| Audio Input | 8-channel BNC (external) 8-channel BNC (coaxial audio) |
| Audio Output | 1-channel BNC |
| Two-way Talk | 1-channel BNC |
| Alarm Input | 8 channels |
| Alarm Output | 6 channels |
| HDD Interface | 8 SATA ports, up to 16TB, the maximum HDD capacity varies with environment temperature |
| eSATA | 1 |
| RS-232 | 1 port, for PC Communication & Keyboard |
| RS-485 | 1 port, for PTZ control |
| USB | 4 (2 front USB 2.0 ports, 2 rear USB 3.0 ports) |
| HDMI | 2 |
| VGA | 1 |
| Network Port | 1 (10/100 Mbps Ethernet port, RJ-45) |
| General | |
| Power Supply | 100–240 VAC, 50±2% Hz |
| Power Consumption | <10W (without HDD) |
| Net Weight | 6.50 kg (14.34 lb) |
| Gross Weight | 9.10 kg (20.07 lb) |

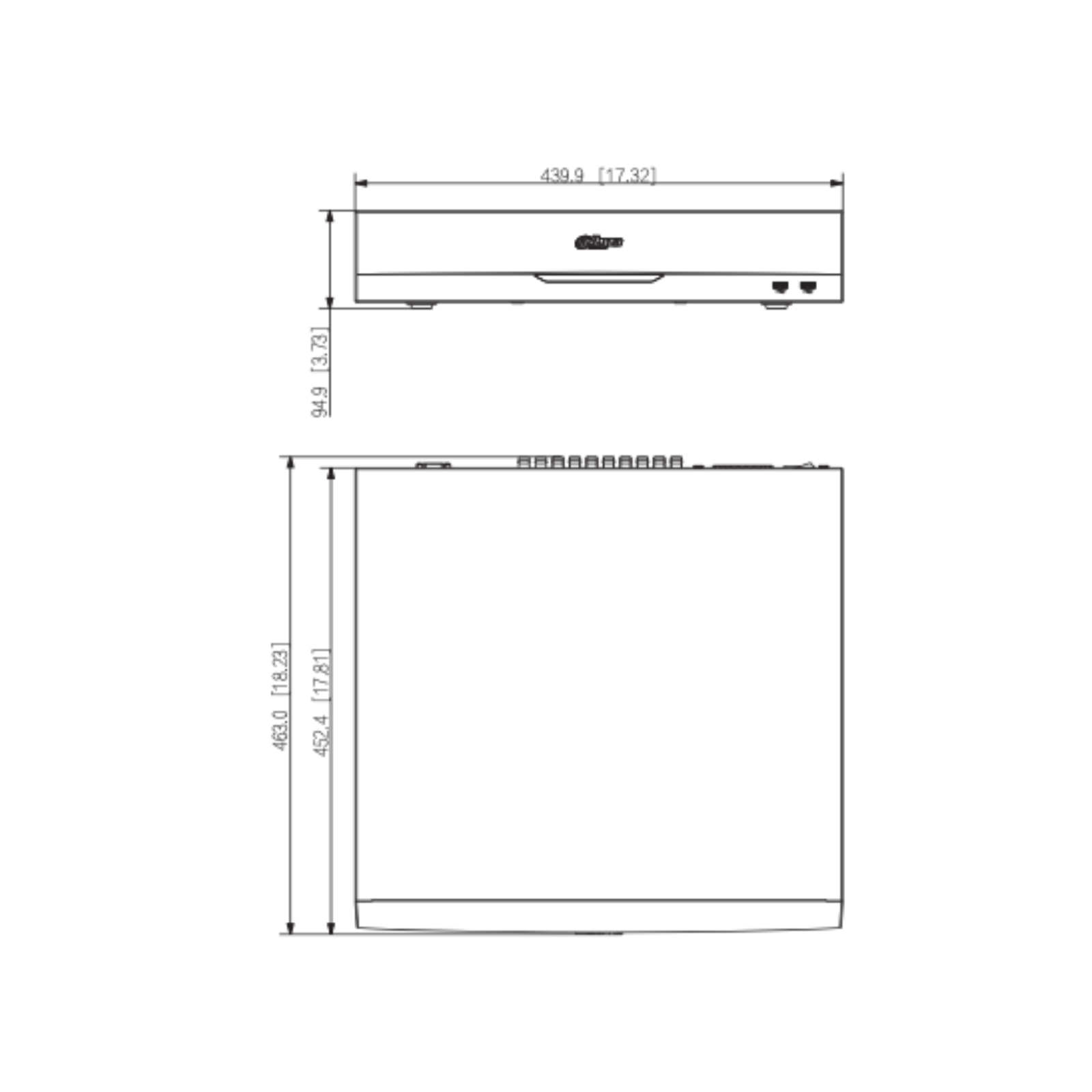

| Product Dimensions | 439.9 mm × 463.0 mm × 94.9 mm (17.32" × 18.23" × 3.73") (W × D × H) |
| Packaging Dimensions | 570.0 mm × 570.0 mm × 226.0 mm (22.44" × 22.44" × 8.90") (W × D × H) |
| Operating Temperature | –10°Cto+55°C(14°Fto+131°F) |
| Storage Temperatures | –20 °C to +60 °C (–4 °F to +140 °F) |
| Installation | Rack or desktop |
| Operating Humidity | 10%–93% (RH) |
| Certifications | CE: CE-LVD: IEC 62368-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024, EN 55035 FCC: Part 15 Subpart B |
