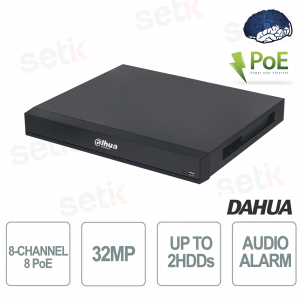

IP NVR ONVIF PoE Professional Dahua NVR5208-8P-EI EI Series WizSense Recorder 8 PoE Channels with resolution up to 32MP / 4K Ultra HD . Smart H.265+, Up to 384Mbps incoming/recording/outgoing bandwidth. Artificial Intelligence : Face detection and recognition, perimeter protection, SMD plus, metadata, ANPR, stereo analysis, heat map, people counting. Up to 2HDD (16TB - not included), 1 audio in/1 out, 4 in/2 alarm out, 1x USB 2.0, 1x USB 3.0, 1x RS232, 1x RS485. Security baseline 2.3. Supports rack or desk mount.
FIND INSTALLER
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
NVR 8 CHANNELS ONVIF® POE IP DAHUA - 4K SERIES ARTIFICIAL INTELLIGENCE - UP TO 32 MEGAPIXELS
Nvr IP 8 Channels Onvif PoE - New 4K AI Series - DahuaUp to 32MP resolution - 384Mbps maximum bandwidth - Video Compression up to H.265+
HDMI output ( 4K ) - VGA (4K) - 2 USB - Audio and Alarm - Up to 2 HDD SATA III 3.5"
Artificial Intelligence: Face detection and recognition, perimeter protection, SMD plus, metadata, ANPR, stereo analysis, heat map, people counting
|
WIZSENSE TECHNOLOGY: |
Product details
|
Dahua EI series Dahua's NVR5000-EI series offers outstanding performance and high-level recording technology ideal for IP video surveillance. It features a powerful processor that offers high access, forwarding bandwidth, and strong decoding capabilities that together produce unobstructed streams. Thanks to the built-in AI chip and Dahua's advanced deep learning algorithms , the NVR supports a variety of back-end AI functions with:
|
|
 |
This NVR features 4 PoE ports |
|
|
Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
 |
New ULTRA HD 4K Technology! Even higher resolution than FULL-HD! Greater detail available, greater sense of depth and realism. |
 |
This NVR supports ONVIF® 21.12 standard |
 |
This IP NVR recorder has 8 channels for connecting IP cameras Up to 384Mbps bandwidth |
 |
ANPR | Automatic license plate recognition Ideal for managing income and expenses. Compatible with Dahua ANPR cameras, it integrates black / white list functions , data import / export, addition / deletion of license plate numbers in the lists, search results from a recorded video.  |
 |
Possibility of connecting POS devices, obtaining all the information superimposed on the channel. Pos search option by date or transaction
|
 |
Supports 2x 3.5" SATA III Hard Drives up to 16TB each (hard drives not included) ATTENTION: use specific audio/video discs on NVR systems. For more information, read our dedicated article . |
 |
This NVR features 2 USB Ports (1x Rear USB3.0, 1 Front 2.0) |
 |
Resolution up to 4K via HDMI port! and VGA
New ULTRA HD 4K Technology! |
 |
With alarm relay 4 inputs and 2 outputs for inputs from burglar alarms or other instruments and for activating external peripherals (gates, sirens, etc.) |
 |
This NVR has 1 RCA audio input and 1 RCA audio output |
 |
Dynamic DNS: allows you to reach the NVR even in case of dynamic IP |
 |
Ability to have the disk overwrite when full or have the disk overwrite after X days. NVR restart programming to ensure greater stability over time |
 |
This NVR has email sending. In case of events (camera obfuscation, signal cut, motion, broken disk, network problems etc ...), it is able to send an email notification, a sound notification or upload video & screeshot via FTP |
 |
Motion function. Recording starts when the camera detects movement. |
 |
1x RJ-45 (10/100/1000Mbps) |
 |
RS 485 for PTZ commands (remotely controllable cameras) |
 |
RS 232 to communicate with PC and keyboard |
 |
This product is covered by a 24 month guarantee. |
Data sheet
| Model: DVR | NVR5208-8P-EI |
| SYSTEM | |
| main processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web, Local GUI |
| TO THE | |
| AI by Recorder | face detection; face recognition; perimeter protection; SMD Plus |
| AI by Camera | face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map |
| PERIMETER PROTECTION | |
| Perimeter Performance AI by Recorder (Number of Channels) | 4 channels, 10 IVS rules for each channel |
| Perimeter Performance of AI by Camera (Number of Channels) | 8 channels |
| FACE DETECTION |
|
| Face Attributes | gender; age group; glasses; expressions; face masks; beard |
| Face Detection Performance of AI by Recorder (Number of Channels) | 2 channels (up to 12 face images/s each channel) |
| Face Detection Performance of AI by Camera (Number of Channels) | 8 channels |
| FACE RECOGNITION |
|
| Face Database Capacity | Up to 20 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image. |
| Face Recognition Performance of AI by Recorder (Number of Channels) | 1. 8-channel FD (by camera) + FR (by recorder), image stream: 16 face images/s 2. 2-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s |
| Face Recognition Performance of AI by Camera (Number of Channels) | 8 channels |
| SMD PLUS |
|
| SMD Plus by Recorder | 8 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change |
| SMD Plus by Camera | 8 channels |
| VIDEO METADATA |
|
| Metadata Performance of AI by Camera (Number of Channels) | 8 channels |
| Human Attributes | Top color, top type, bottom color, bottom type, hat, bag, age, gender and umbrella |
| Motor Vehicle Attributes | License plate, plate color, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location. |
| Non-motor Vehicle Attributes | Vehicle model, vehicle color, number of persons, helmet. |
| VEHICLE LICENSE PLATE COMPARISON |
|
| ANPR by Camera (Number of Channels) | 8 channels |
| License Plate Database Capacity | 1. Create up to 20,000 plate numbers. 2. Blocklists and allowlists |
| AUDIO AND VIDEO | |
| Access Channel | 8 |
| Network Bandwidth | AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing |
| Resolution | 32MP; 24MP; 16MP; 12MP; 8MP; 5MP; 4MP; 1080p; 720p; D1; TIN; QCIF extension |
| Decoding Capability | AI disabled: 2-channel 32MP@20fps; 2-channel 24MP@20fps; 4-channel 16MP@30fps; 5-channel 12MP@30fps; 8-channel 8MP@30fps AI enabled: 1-channel 32MP@20fps; 1-channel 24MP@20fps; 2-channel 16MP@30fps; 4-channel 12MP@30fps; 4-channel 8MP@30fps; 8-channel 5MP@30fps |
| Video Output | 1-channel VGA, 1-channel HDMI video output. Heterogeneous video source output for HDMI and VGA Supports 4K display |
| Multi-screen display | Main screen: 1/4/8/9 Sub screens: 1/4/8/9 |
| Third party camera access | ONVIF®; Panasonic; Sony; axis; Arecont; Pelco; Canon; Samsung |
| STANDARD COMPRESSION |
|
| Video compression | Smart H.265+; H.265; Smart H.264+; H.264; mjpeg |
| Audio Compression | G.711a; G.711u; PCM; G726 |
| NETWORK | |
| NetworkProtocol | HTTP; HTTPS; TCP/IP; IPv4/IPv6; RTSP; UDP; SNMP; NTP; DHCP; DNS; smtp; UPnP; IP filter; PPPoE; FTP; DDNS; Alarm Servers; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration |
| Mobile Phone Access | iOS; android |
| Interoperability | ONVIF® 21.12(Profile T; Profile S; Profile G); CGI; SDKs |
| Browsers | Chrome IE 9 or later Firefox |
| RECORDING PLAYBACK |
|
| Multi-channel Playback | Up to 8 channels |
| Record Mode | General, motion detection; intelligent; alarm; POS |
| Backup Method | USB device and network |
| Playback Mode | Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection) |
| STORAGE | |
| Disk Groups | Yes |
| ALARM | |
| general alarm | motion detection; privacy masking; local alarm |
| Anomaly Alarm | Offline camera; storage error; disk full; IP conflict; MAC conflict; login lock; abnormal behavior of fans; cyber security exception |
| Intelligent Alarm | face detection; perimeter protection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map |
| Alarm Linkage | Record; snapshots (panoramic); local alarm output; IPC external alarm output; access controllers; audio; buzzers; logs, presets; e-mail |
| PORT | |
| Audio inputs | 1-channel RCA |
| Audio Outputs | 1-channel RCA |
| Alarm Inputs | 4 channels |
| Alarm Output | 2 channels |
| HDD Interface | 2 SATA ports, up to 16TB. The maximum HDD capacity varies with environment temperature. |
| RS-232 | 1 |
| RS-485 | 1 |
| USB | 2 (1 front USB 2.0 port, 1 rear USB 3.0 port) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1(10/100/1000Mbps Ethernet port, RJ-45) |
| PoE port | 8 ports, 10/100 Mbps, IEEE 802.3 af/at, 1-8 ports support ePoE |
| GENERAL | |
| Power Supply | 100–240VAC, 47-63Hz |
| power consumption | Total output of NVR is ≤ 10W (without HDD) Total output power of PoE is 130W, the maximum output power of a single port is 25.5W |
| Net Weight | 2.57kg (5.67lbs) |
| Gross Weight | 3.8kg (8.38lbs) |
| Product Dimensions | 375.0mm × 329.4mm × 53.0mm (14.76" × 12.97" × 2.09") (W × D × H) |
| Packaging Dimensions | 451.0mm × 147.0mm × 425.0mm (17.76" × 5.79" × 16.73") (W × D × H) |
| Operating Temperature | –10°C to +55°C (14°F to +131°F) |
| Storage Temperatures | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–93% (RH) |
| Installation | Racks or desktops |
| CERTIFICATIONS | |
| Certifications |
FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032: 2015+A1: 2020; EN IEC 61000-3-2: 2019+A1: 2021; EN 61000-3-3: 2013+A1: 2019+A2: 2021; EN 55035: 2017+A11: 2020; EN 50130-4: 2011+A1: 2014 CE-LVD: EN 62368-1: 2014 |
