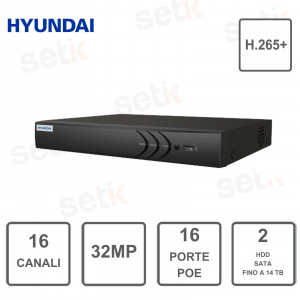

16-channel IP AI sense hyundai NVR - 32MP - 16 PoE ports - supports 2HDD

Product details

HYUNDAI CATALOGUE: Are you looking for a HYUNDAI product but couldn't find it on our website? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us via email.

	All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems This camera supports Onvif version
	16 Channels up to 12MP ! Input bandwidth: 160Mbps Output bandwidth: 256Mbps
	New ULTRA HD 4K Technology! Even higher resolution than FULL-HD! More detail available, greater sense of depth and realism. 4K output is via HDMI socket.
	This NVR features 16 PoE ports! PoE+ 802.3af/at, maximum consumption 200W.
	Smart H.265+ Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
	This device features smart features, such as: - Facial recognition - 16 face libraries - 4-channel perimeter protection with distinction/classification between people and vehicles - VCA Events
	Supports Cloud P2P, DDNS, Push and Zero Channel.
	Possibility of connecting POS devices, obtaining all the information superimposed on the channel. Possibility of searching pos by date or transaction
	Supports 2 SATA HDDs, up to 14TB capacity. (Hard disk not included) ATTENTION: on NVR systems use specific audio/video discs. For more information, read our dedicated article .
	1x Gigabit RJ45
	This NVR features 2x ports (1 USB 2.0, 1 USB 3.0)
	This product features 1x VGA (1080P), 1xHDMI (4K), 1x BNC (1.0 Vp-p, 75)
	A 100V~240V AC, 50/60Hz power supply is required to operate this camera (not included in the package)

Data sheet

IP Camera NVR Specifications:

• Video Input: 16 channels
• Compression Formats: H.265+, H.265, H.264+, H.264
• Bandwidth:
  • Incoming: 160Mbps
  • Outgoing: 256Mbps
• Video Output:
  • 4K HDMI and independent 1080P VGA
  • BNC output
  • Display modes: 1, 2, 4, 6, 8, 9, 16
• Two-Way Audio:
  • 1 RCA input
  • 1 RCA output
• Recording Resolution:
  • 32MP, 24MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, UXGA, 720P, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
  • Supports up to 4 channels at 32MP/24MP
• Decoding Capability:
  • With AI enabled: 20 channels at 1080P @ 30 fps
  • With AI disabled: 32 channels at 1080P @ 30 fps
• Intelligent Analysis: Deep learning-based algorithm
  • Perimeter protection up to 4 channels
  • Facial recognition with up to 16 face libraries and 50,000 face images total
    • Face comparison up to 8 channels
    • Face detection up to 4 channels
  • Motion detection 2.0 with person and vehicle classification
  • ANPR on all channels with vehicle and license plate attributes
• Playback: 16-channel synchronous playback
• Alarm Channels: 4 inputs / 1 output
• Storage: 2 SATA ports, up to 14TB each (HDD not included)
• VCA (Video Content Analytics): Supports multiple events from IP cameras
• Smart Search: Available
• POS Integration: Recording and alarm triggered by POS
  • POS information overlay on live view and playback
• Network Interface: Adaptive Ethernet RJ45 (10/100/1000M)
• Network Protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Compatibility: Onvif (S/G), SDK, ISAPI
  • Compatible with browsers IE11, Chrome, Firefox, Safari, Edge
• Connections:
  • 1 USB 2.0
  • 1 USB 3.0
• PoE: 16 independent ports (100Mbps) PoE+ 802.3af/at
  • PoE power output: ≤200W
• Power Supply: 100V~240V AC
• Power Consumption: NVR: ≤30W
• Operating Temperature: -10°C ~ +55°C
• Relative Humidity: 10~90%
• Dimensions: 385 (W) x 52 (H) x 317 mm
• Weight: ≤2.5kg
