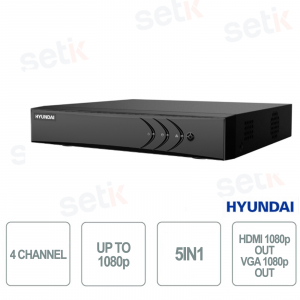

HYU-1060 Hyundai ZVR 5in1 4 Channel with resolution up to 1080P, - Codec H.265 Pro+, H.265 Pro, H.265, H.264+, H.264+, H.264, 1 HDMI (1080P Out), 1 VGA (1080p out), 2USB 2.0, two-way audio, SATA for 1xHDD 4TB (not included) - 4 alarm inputs / 1 alarm output, intelligent search - Hyundai Security
HYUNDAI NVR 4 CHANNEL 5IN1 RECORDER - RESOLUTION UP TO 1080P - HDMI - VGA - SATA FOR 4TB HDD
HYU-1060 4 Channels 5in1 - Hyundai Security
Recording resolution 1080p
Video Compression H.265 Pro+, H.265 Pro, H.265, H.264+, H.264+, H.264 / HDMI with 1080p output - VGA with 1080p output - 2xUSB 2.0 - 1in/1out RCA two-way audio - 1 3.5" SATA Hard Disk (Max 4TB - not included) - 4 alarm inputs / 1 alarm output, Intelligent search - 10/100M RJ45 LAN - Power supply: 12V DC, 1.5A.
Product details
This NVR supports compression standards up to H.265+ H.265+: What are the benefits? - Save up to 90% on bandwidth - Reduce storage space - Longer recording times on analog surveillance systems with the same storage space.
| ||||
4 Channels with resolution up to 1080p | ||||
Supports 1x SATA Audio / Video Hard Disk up to 4TB (each)
HARD DISK NOT INCLUDED
| ||||
Supports multiple VCA (Video Content Analytics) events of Hyundai IP cameras | ||||
HDMI port with resolution up to 1080p and VGA port with resolution up to 1080p | ||||
This NVR features 1 input + 1 RCA Audio output | Two-way audio! | |||
This NVR features 2xUSB 2.0 | ||||
This NVR features 2 RJ45 ports (10/100/1000Mbps) | ||||
This recorder features multilingual menus | ||||
This product is covered by a 3 Year Warranty! |
Technical data sheet
HYU-1060 |
Technical Features |
ZVR 5 in 1 of 4 HD analog channels + 1 IP channel |
5 technologies: IP Cameras, HDCVI, HDTVI, AHD and analog CVBS |
H.265 Pro+, H.265 Pro, H.265, H.264+, H.264, H.264 video format |
4 BNC inputs (supports coaxitron): HDCVI: 1080P, 720P, HDTVI: 1080P, 720P, AHD: 1080P, 720P, analog CVBS: 960H, PAL/NTSC |
1 IP input (4+1) 1080P |
Simultaneous HDMI (1080P) and VGA (1080P) outputs |
Bi-directional audio: via RCA audio channel 1 |
4 audio inputs via coaxial cable |
Recording resolution: 1080P Lite, 720P Lite, WD1, 4CIF, VGA, CIF |
Main stream: 1080P mode: 1080P Lite, 720P Lite, WD1, 4CIF, VGA, CIF (25/30 ips), 720P mode: 720P, WD1, 4CIF, VGA, CIF (25/30 fps), Standard mode: WD1, 4CIF, VGA, CIF (25/30 fps) |
Secondary stream: 4CIF (15 fps), CIF, QVGA (25/30 fps) |
4-channel synchronized playback |
Long distance HDTVI transmission: up to 1200 meters at 720P and 800 meters at 1080P |
Internal capacity for 1 SATA HDD up to 4TB (sold separately) |
Smart search |
Deep learning based motion detection 2.0 is enabled by default for all analog channels, it can classify people and vehicles and minimize false alarms caused by lights or objects such as leaves. |
4 alarm inputs / 1 alarm output |
Auto-adaptive Ethernet RJ45 (10/100M) network interface |
Network protocols: TCP/IP, PPPoE, DHCP, HYU-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
Remote access for up to 32 users |
P2P in the cloud, DDNS DEMES, Push and zero channel |
Connections: 2 USB 2.0 |
Power supply: 12V DC, 1.5A |
Power consumption: ≤16W (excluding HDD) |
Operating temperature: -10°C ~ +55°C |
Relative humidity: 10~90% |
Dimensions: 260 (W) x 45 (H) x 222 mm (desktop) |
Weight: 800 g |
