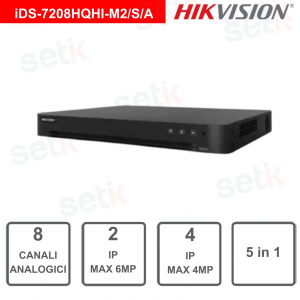

iDS-7208HQHI-M2/S/A | HIKVISION 5IN1 DVR - 8 ANALOGUE CHANNELS MAXIMUM RESOLUTION 5MP (HDCVI-AHD) 3K (HDTVI), 2 IP CHANNELS MAXIMUM RESOLUTION 6MP -4 IP CHANNELS 4MP -MAX. 12 CHANNELS - ONVIF® - SMART FUNCTIONS - AUDIO IN/OUT SUPPORT 10 TB EXTERNAL HDD - MOTION DETECTION 2.0 - ALARMS

Made by Hikvision

HDD

1TB HARD DRIVE INCLUDED!

By purchasing this Hikvision recorder you will already find a hard disk with 1TB capacity included, specific for video surveillance applications

DVR Hikvision iDS-7208HQHI-M2/S/A - 8 ANALOGUE CHANNELS MAXIMUM RESOLUTION 5MP (HDCVI-AHD) 3K (HDTVI), 2 IP CHANNELS MAXIMUM RESOLUTION 6MP -4 IP CHANNELS 4MP-UP TO 12CH
1 HDMI (FullHD Out) - 1 VGA (Full HD) - 2 USB (2.0) - 5in1 HDTVI/AHD/CVI/CVBS/IP - Smart functions, people and vehicle recognition, perimeter protection, alarms - 2 connectable 10TB SATA HDD SATA interface- Dual Stream - 1 audio input and 1 audio output - 8 audio channels via coaxial - Hik-Connect - DDNS - WiFI with Dongle - RS-485 - 1xRJ45 10/100 self-adaptive - H.265 Pro+ - Motion Detection 2.0 - Deep Learning - Dimensions: 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch) - iDS-7208HQHI-M2/S/A
iDS-7204HUHI-M1-S-A

ONVIF®:

This DVR supports ONVIF® standard. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems.

5IN1:

5 Technologies in 1!
This DVR supports 5 different technologies (HDCVI+AHD+TVI+ANALOG+IP)

8 Analog Channels + 2 IP Channels up to 6MP/4 IP Channels 4MP. Max. 12 Channels

Smart H.265 pro+

Smart H.265pro+ is the optimized implementation of the H.265 codec that uses a scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without strain the network.

Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression

Video compressione Smart H.265+

RJ-45:

RJ-45 (10/100M) self-adaptive.

SMART FUNCTIONS:

This DVR supports several smart functions, including:

- Perimeter protection
- Deep learning
- People recognition
- Vehicle recognition
- Filter false alarms

Smart Search Banner ?

HARD DISK:

Supports up to SATA III HDD, up to 10TB (each) capacity. 2 SATA INTERFACE

HDMI, VGA (fullHD) and CVBS output:

There is 1 HDMI output with resolution up to 1920 x 1080 , 1 VGA output up to 1080p (Simultaneous) and 1 CVBS output.

USB :

This DVR has 2 USB - 2.0 ports.

HIK CONNECT

Hik Connect allows you to control the device remotely

AUDIO

This DVR features 1 input + 1 RCA audio output. Supports RCA bidirectional two-way audio channel.
It also supports up to 8 audio inputs, via the use of coaxial cable.

Diet :
A 12V DC power supply is required to operate this camera

Data sheet

Specifications:

  • Motion Detection 2.0:
    • Deep learning-based motion detection 2.0 is enabled by default for all analog channels. It can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights.
  • Quick search by object or event type is supported.
  • Perimeter Protection: Human/Vehicle Analysis Up to 4-ch.
  • Facial Detection: Facial Detection and Capture Face picture detection, face picture search.

Recordings:

  • Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264.
  • Encoding Resolution:
    • When 1080p Lite mode is not enabled: 3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF.
    • When 1080p Lite mode is enabled: 3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF.
  • Frame Rate:
    • Main streams:
      • When 1080p Lite mode not enabled: Various fps configurations.
      • When 1080p Lite mode enabled: Various fps configurations.
    • Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N).
  • Video Bitrate: 32 Kbps to 6 Mbps.
  • Dual-stream Support: Stream Type Video, Video & Audio.
  • Audio Compression: G.711u.
  • Audio Bitrate: 64Kbps.

Video and Audio:

  • IP Video Input: 2-ch (up to 10-ch) Up to 6 MP resolution. Enhanced IP mode on: 4-ch (up to 12-ch), each up to 4 Mbps. Support H.265+/H.265/H.264+/H.264 IP cameras.
  • Analog Video Input: 8-ch; BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection.
  • HDMI Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, HDMI/VGA simultaneous output.
  • VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz.
  • CVBS Input: PAL/NTSC.
  • CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480.
  • Synchronous playback: 8-ch.
  • HDTVI Input: 3K(2960 × 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,1080p@30 fps , 1080p@25fps,720p@30fps, 720p@25fps.
  • AHD Input: 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps , 720p@25fps.
  • HDCVI Input: 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps , 720p@25fps.
  • Audio Output: 1-ch, RCA (Linear, 1 KΩ).
  • Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ).
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input).

Network:

  • Total Bandwidth: 96Mbps.
  • Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF.
  • Remote Connection: 64.
  • Network Interface: 1, RJ45 10M/100M self-adaptive Ethernet interface.

Auxiliary Interface:

  • SATA: 2 SATA interface. Capacity Up to 10 TB capacity for each disk.
  • Serial Interface: RS-485 (half-duplex).
  • USB Interface: Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0.
  • Alarm In/Out: N/A.

General:

  • Power Supply: 12 VDC.
  • Consumption: ≤ 30W.
  • Working Temperature: -10 °C to +55 °C (+14 °F to +131 °F).
  • Working Humidity: 10% to 90%.
  • Dimension (W × D × H): 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch).
  • Weight: ≤ 1.78 kg (3.9 lb).
