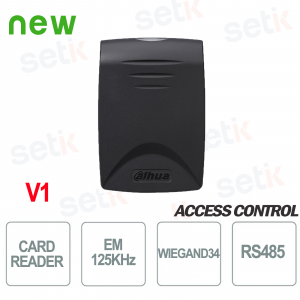

CONTROLLO ACCESSI: LETTORE DI ACCESSO A SCORRIMENTO DI CARTE RFID EM 125KHz - DAHUA

Lettore di prossimità Controllo Accessi Dahua per tessere RFID Mifare

DESCRIZIONE:
Il lettore ASR1100B-D-V1 di Dahua Security, è uno dei migliori lettori di tessere sul mercato.
Questo dispositivo permette l'accesso tramite Tessere RFID EM 125KHz, con range d'azione fino 1-3cm.

Tempi di lettura/risposta veloci, aziona gli allarmi sonori e l'indicatore luminoso.

Protezione IP66 (leggere bene nella tab dettagli prodotto)

Prodotto estremamente affidabile.

Dettagli prodotto

Lettore di prossimità per tessere RFID EM 125KHz Dahua
  • Lettore di prossimità - Dahua Security
  • Utile per un accesso più rapido attraverso Tessere RFID
  • Compatibile tessere RFID EM 125KHz
  • Comunicazione con controllo RS485/Wiegand34
  • Tempi di lettura tessera/risposta veloci (<0,1s)
  • Aziona gli allarmi sonori e l'indicatore luminoso
  • Design Wateproof!
  • Ideale sia in ambienti interni che esterni
  • Protezione IP66(Applicare del gel silicone nello spazio tra il dispositivo e la parete. Sodio liquido silicato è raccomandato.)
  • Alimentazione:DC 9V–15V/100mA
  • Dimensioni: 72.0mm×102.4mm×18.0mm
  • Installazione a parete

Scheda tecnica

Model ASR1100B-D-V1
Basic
Product Type Card reader
Buzzer Yes
Casing Material PC + ABS
Function
Unlock Mode Card
Card Type ID card
Performance
Response Time 0.1 s
Card Reading Distance 0 cm–3 cm (0"–1.18")
Port
RS-485 Yes
Wiegand Yes
General
Power Supply

DC 9V–15V/100mA

Protection

IP67 (silicon surface treatment needed, see the manual)

Power Consumption

≤0.9 W (standby), ≤1 W (working)

Product Dimensions

102 mm × 72 mm × 18 mm (4.02" × 2.83" × 0.71") (W× H × D)

Packaging Dimensions

168 mm × 120 mm × 52 mm (6.61" × 4.72" × 2.05") (W× H × D)

Operating Temperature

-30°C to +60°C (-22°F to 140°F)

Working Humidity

0%–95% (RH), non-condensing

Weight

0.17 kg (0.37 lb)

Installation

Surface Mount

Working Environment

Indoor, Outdoor

Ulteriori dettagli

Lettore per tessere RFID

Lettore di prossimità RFID per tessere EM 125Khz

Tempi di lettura / risposta molto rapidi <0.1s

Lettore di tessere RFID 125Khz RS485 Wiegand 34/26

Indicatori Leds Aziona gli allarmi sonori e l'indicatore luminoso.
Controllo tramite RS485 e Wiegand 34

Comunicazione tramite controllo RS485 e Wiegand 34



Protezione IP67

Livello di protezione IP67 ( Polveri / Immersioni )

Questo prodotto è coperto da garanzia 24 mesi italiana

Questo prodotto è coperto da Garanzia di 24 mesi.
