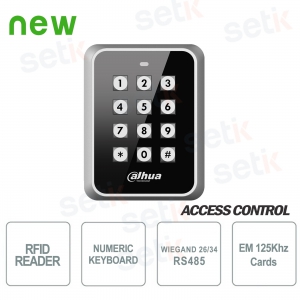

125KHz Wiegand RS485 EM RFID reader with keyboard - Dahua

125KHz Wiegand RS485 EM RFID reader with keyboard - Dahua
BEST PRICE -57%

Controllo Accessi Dahua: Lettore di prossimità Tessere RFID EM 125Khz con tastiera. Processore 8bit, Protocollo Wiegand 26/34 & RS485, LEDS colorati per indicazione stato, Funzione Watchdog. Installazione a parete. ASR1101M-D-V1 Dahua Security



Reference: ASR1101M-D-V1

Brand: Dahua

EAN: 6923172554055

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

CONTROLLO ACCESSI: LETTORE DI PROSSIMITA' RFID EM 125KHZ CON TASTIERA - DAHUA

Lettore di prossimità Controllo Accessi Dahua per tessere RFID Mifare

DESCRIZIONE:
Il lettore ASR1101M-D-V1 di Dahua Security, è uno dei migliori lettori di tessere sul mercato.
Questo dispositivo permette l'accesso tramite Tessere RFID EM 125Khz, con range d'azione fino 6-8cm.

Tempi di lettura/risposta veloci, dotato di leds colorati per indicazione stato e buzzer.

Dotato di tastiera

Prodotto estremamente affidabile.

Dettagli prodotto

Lettore di prossimità per tessere RFID con tastiera Dahua
  • Lettore di prossimità RFID con tastiera - Dahua Security
  • Utile per un accesso più rapido attraverso Tessere RFID
  • Compatibile tessere RFID EM 125Khz & RS485
  • Processore 8 bit
  • Funzione di analisi Watchdog
  • Tempi di lettura tessera/risposta veloci (<0,1s)
  • Tamper sabotaggio
  • Leds colorati per indicazione stato
  • Buzzer allarme
  • Alimentazione: 9V ~ 15V CC, 100mA
  • Dimensioni: 110 x 85 x 26 mm
  • Installazione a parete

Scheda tecnica

Model ASR1101M-D-V1
System
Main processor 8 Bit
Performance
Read Format 125KHz
Card Reading Distance 0 cm–3 cm (0"–1.18")
Response Time <0.1s
Basic
Product Type

Card reader

Buzzer

Yes

Casing

Zinc alloy

Function
Unlock Mode Card; password
Card Type ID card
Port
RS-485

Yer

Wiegand

Yes

Alarm

Tamper Alarm

Yes

General

Power Supply

9-15VDC/100mA

Protection

IK08

Power Consumption

≤ 0.9 W (standby), ≤ 1 W (working)

Product Dimensions

110 mm × 85 mm × 26 mm (4.33" × 3.35" × 1.02") (L × W × H)

Packaging Dimensions

153 mm × 144 mm × 77 mm (6.02" × 5.67" × 3.03") (L × W × H)

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

0%–95% (RH), non-condensing

Operating Environment

Indoor

Net Weight

0.48 kg (1.06 lb)

Gross Weight

0.56 kg (1.23 lb)

Installation

Surface mount; 86 case mount

Certifications

CE; FCC

Ulteriori dettagli

Lettore per tessere RFID

Lettore di prossimità RFID per tessere EM 125Khz

Tempi di lettura / risposta molto rapidi <0.1s

Equipaggiato di tastierino numerico.

Indicatori Leds Luci Led Rosse e Verdi per indicazioni stato

Protocollo RS485

Comunicazione tramite controllo RS485 e Wiegand26/34



 Funzione Watchdog

Funzione Watchdog per analisi anomalie dispositivo

Questo prodotto è coperto da garanzia 24 mesi italiana

Questo prodotto è coperto da Garanzia di 24 mesi.
