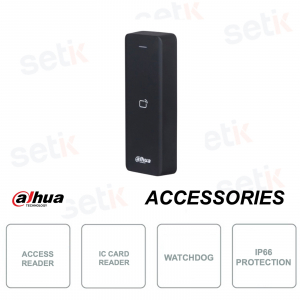

Dahua Access Control Terminal - ASR2100H - IC Card reader - Response times in 0.1ms - Reading distance up to 8cm - Waterproof, with IP66 protection, ideal for indoor and outdoor use - RS-485 and Wiegand 34 (configurable Wiegand 26) - Watchdog functionality - Overload protection - For indoors and outdoors - In polycarbonate and acrylic - Tamper alarm - Wall installation.



Reference: ASR2100H

Brand: Dahua

EAN: 6923172587183

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

ACCESS CONTROL: PROXIMITY READER FOR IC CARDS - DAHUA - ASR2100H

DESCRIPTION:
Dahua Security's ASR2100H reader is one of the best card readers on the market.
This device allows access via IC Cards , with an action range of up to 8cm and ultra-fast response times of 0.1ms.

Extremely reliable product.

Product details

Lettore di prossimità per tessere RFID Mifare Dahua

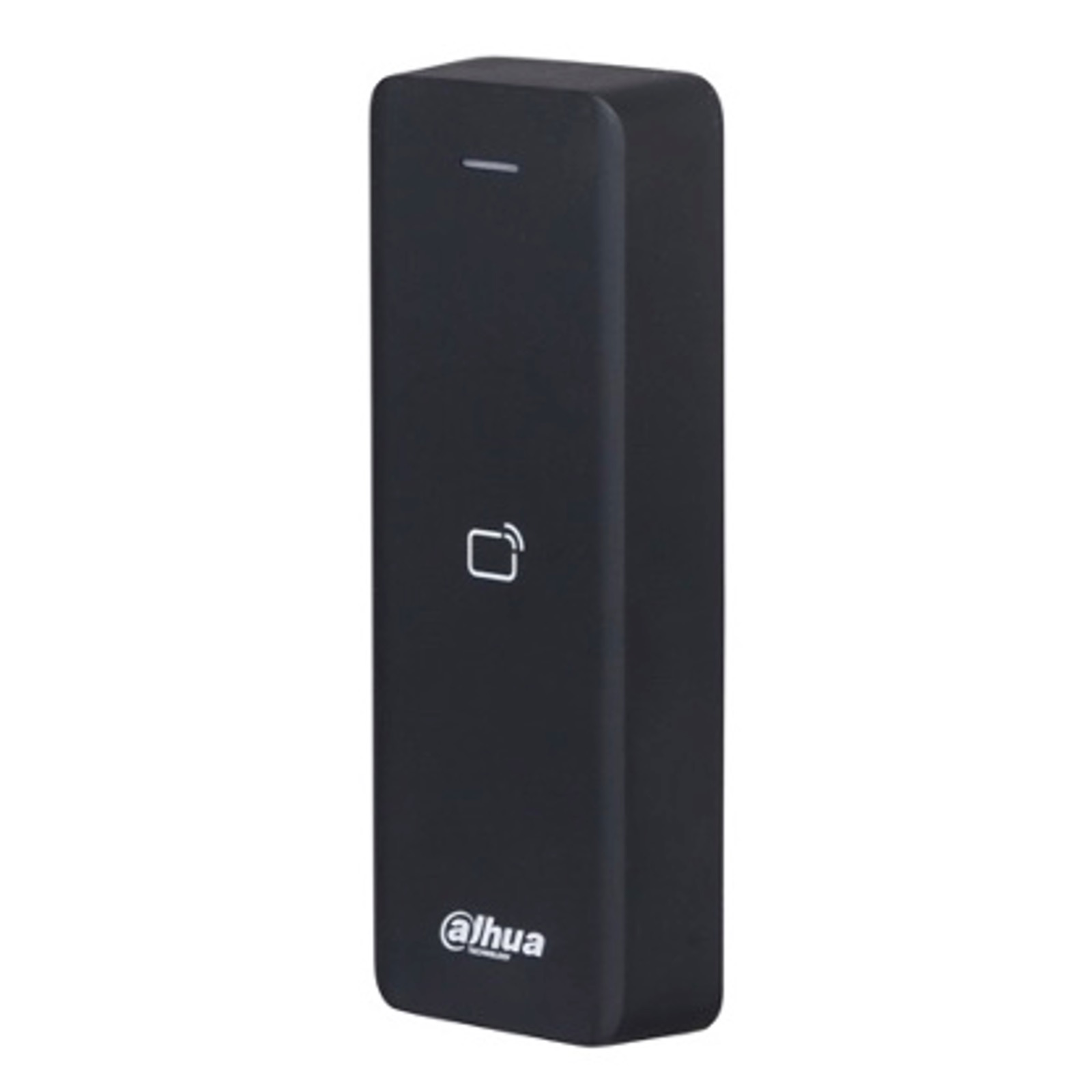

  • Proximity reader - Dahua Security - ASR2100H
  • Useful for faster access through IC Cards
  • Communication with RS485/Wiegand 34 control (Wiegand 26 configurable)
  • RS485: 1
  • Wiegand: 1 channel out
  • Watchdog analysis function
  • Fast card read/response times (0.1s)
  • Anti-sabotage tamper
  • Buzzers
  • IP66 protection: allows for indoor/outdoor use
  • Power Supply: 12VDC, 0.5A
  • Dimensions: 127mm × 46mm × 20mm
  • Operating temperature: –30°C to +70°C
  • Operating Humidity: ≤95% (RH)
  • Product net weight: 104g
  • Installation: on the wall

Data sheet

ASR2100H

System

OSDP Protocol

Yes

Basic

ProductType

Card reader

Buzzers

Yes

Casing material

PC + ABS

Function

UnlockMode

Card

CardType

IC card

Performance

Response Time

0.1s

Card Reading Distance

0cm–8cm (0"–3.15")

Port

RS-485

1

Wiegand

1 channel output

alarm

Tamper Alarm

Yes

General

Power Supply

12VDC, 0.5A

Protection

IP66

power consumption

≤ 0.48W (standby), ≤ 1.2W (working)

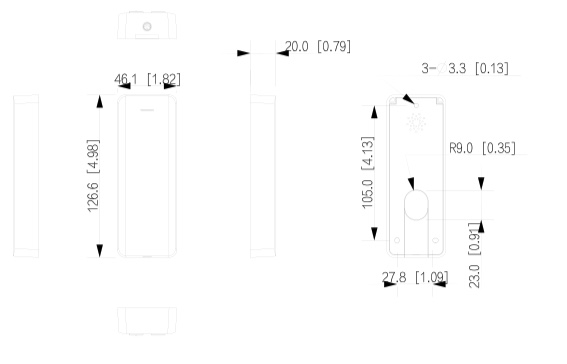

Product Dimensions

127mm × 46mm × 20mm (5.00" × 1.81" × 0.79")

Packaging Dimensions

139mm × 73mm × 48mm (5.47" × 2.87" × 1.89")

Operating Temperature

–30 °C to +70 °C (–22 °F to +158 °F)

Operating Humidity

≤ 95% (RH)

operating environment

Outdoors

Gross Weight

104g (0.23lb)

Installation

Surface Mount

Further details

RFID card reader

Proximity reader for IC Card cards.

Very fast 0.1s read/response times

Outdoor_Use.jpg Ideal for indoor and outdoor use, thanks to the IP66 protection (requires silicone sealant to ensure complete waterproofing).
Control via RS485 or Wiegand

Communication via Wiegand / RS485 control.

Default: 1 out Wiegand 34 channel, configurable to be used in Wiegand 26 mode

Watchdog function

Watchdog function for analyzing device anomalies

Questo prodotto è coperto da garanzia 24 mesi italiana

This product is covered by a 24 month guarantee.
