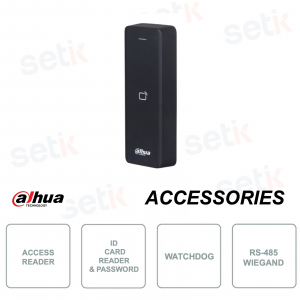

ACCESS CONTROL: PROXIMITY READER FOR ID CARDS - PASSWORD - WIEGAND 34 - RS485 - DAHUA - ASR2100H-D

DESCRIPTION:
Dahua Security's ASR2100H-D reader is one of the best card readers on the market.
This device allows access via ID CARD cards , with a range of action up to 6cm.

Fast read/response times (0.1ms), IP66 protection ideal for outdoor use

Extremely reliable product.

Product details

Lettore di prossimità per tessere RFID Mifare Dahua
  • Proximity reader for access control - Dahua Security - ASR2100H-D
  • Useful for faster access through ID Cards
  • RS485/Wiegand 34 control communication (Wiegand 26 communication can be set)
  • Watchdog analysis function
  • Super-fast card read/response times (0.1s)
  • Anti-sabotage Tamper alarm
  • Password authentication
  • Ports: RS485 (1) + Wiegand (1 channel out)
  • Card reading distance 0-6cm
  • Power Supply: 12VDC, 0.5A
  • Dimensions: 127mm × 46mm × 20mm
  • Operating temperature: –30 °C to +70 °C
  • Operating Humidity: ≤95% (RH)
  • Consumption: ≤ 0.48W (standby), ≤ 1.2W (working)
  • Product net weight: 104g
  • Context of use: indoor and outdoor, thanks to the integrated IP66 protection
  • For vertical wall installation (wall)
  • Material: polycarbonate and ABS

Data sheet

ASR2100H-D

System

OSDP Protocol

Yes

Basic

ProductType

Card reader

Buzzers

Yes

Casing material

PC + ABS

Function

UnlockMode

Cards, passwords

CardType

Card ID

Performance

Response Time

0.1s

Card Reading Distance

0cm–6cm (0"–2.36")

Port

RS-485

1

Wiegand

1 channel output

alarm

Tamper Alarm

Yes

General

Power Supply

12VDC, 0.5A

Protection

IP66

power consumption

≤ 0.48W (standby), ≤ 1.2W (working)

Product Dimensions

127mm × 46mm × 20mm (5.00" × 1.81" × 0.79")

Packaging Dimensions

139mm × 73mm × 48mm (5.47" × 2.87" × 1.89")

Operating Temperature

–30 °C to +70 °C (–22 °F to +158 °F)

Operating Humidity

≤ 95% (RH)

operating environment

Outdoors

Gross Weight

104g (0.23lb)

Installation

Surface Mount

Further details

RFID card reader

Proximity reader for ID CARDS cards.

Very fast 0.1s read/response times

Outdoor_Use.jpg Ideal for indoor and outdoor use, thanks to the IP66 protection (requires silicone sealant to ensure complete waterproofing).
Control via RS485 or Wiegand

Communication via Wiegand / RS485 control.

Watchdog function

Watchdog function for analyzing device anomalies

Questo prodotto è coperto da garanzia 24 mesi italiana

This product is covered by a 24 month guarantee.
