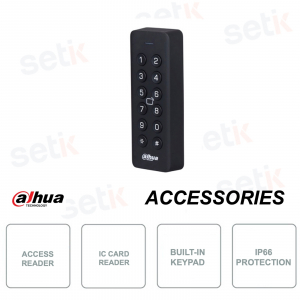

ACCESS CONTROL - PASSWORD - IC CARD - IP66 - DAHUA TECHNOLOGY - ASR2101H


Product details

  • Access Control - Dahua Security - ASR2101H
  • Support card/password unlock
  • Integrated keypad with backlight
  • Mechanical type keys
  • Compatible with IC Card cards
  • RS485 and Wiegand 34 communication support (Wiegand 26 configurable)
  • Support tampering alarm
  • Buzzers
  • Light indicator
  • Watchdog analysis function
  • Fast card read/response times (<0.1s)
  • Card Reading Distance 0cm~8cm
  • Power supply: 12V 0.5A DC
  • Dimensions: 127mm × 46mm × 20mm
  • IP66 protection: ideal for indoor and outdoor use
  • Vertical wall installation
  • Operating temperature: –30 °C to +70 °C
  • Item net weight: 104g

Data sheet

ASR2101H

System

OSDP Protocol

Yes

ButtonType

Mechanical

Basic

ProductType

Card reader

Buzzers

Yes

Backlights

Yes

Casing material

PC + ABS

Function

UnlockMode

Cards, passwords

CardType

IC card

Performance

Response Time

0.1s

Card Reading Distance

0cm–8cm (0"–3.15")

Port

RS-485

1

Wiegand

1 channel output

alarm

Tamper Alarm

Yes

General

Power Supply

12VDC, 0.5A

Protection

IP66

power consumption

≤ 0.48W (standby), ≤ 1.2W (working)

Product Dimensions

127mm × 46mm × 20mm (5.00" × 1.81" × 0.79")

Packaging Dimensions

139mm × 73mm × 48mm (5.47" × 2.87" × 1.89")

Operating Temperature

–30 °C to +70 °C (–22 °F to +158 °F)

Operating Humidity

≤ 95% (RH)

operating environment

Outdoors

Gross Weight

104g (0.23lb)

Installation

Surface Mount

Further details

Lettore per tessere RFID

RFID proximity reader for IC Cards

Very fast read/response times <0.1s

Tastierino touchscreen Keypad numerico

Mechanical numeric keypad for password entry

Controllo tramite RS485

Communication via RS485 or Wiegand 34 (Wiegand 26 configurable)

Funzione Watchdog

Watchdog function for analyzing device anomalies

Questo prodotto è coperto da garanzia 24 mesi italiana

This product is covered by a 24 month guarantee.
