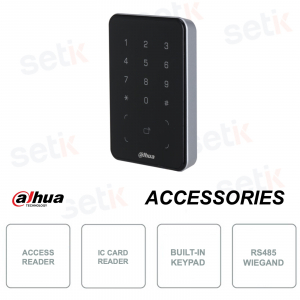

Access control terminal - IC card reader - Keypad for password - IP66

Access control terminal - IC card reader - Keypad for password - IP66
-57%

Access control - Dahua - ASR2101A-D. - Reading of IC Cards - Keypad for password authentication - 1 RS485 channel - 1 Wiegand channel - Tamper protection - IP66 protection - For use in indoor and outdoor environments - For wall installation.



Reference: ASR2101A-D

Brand: Dahua

EAN: 6939554950865

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

ACCESS CONTROL TERMINAL - PASSWORD - IC CARD - IP66 - DAHUA - ASR2101A-D


Product details

  • Access control terminal - Dahua Security - ASR2101A-D
  • Support card/password unlock
  • Compatible with Mifare IC Crad cards
  • RS485 (1 channel)
  • Wiegand (1 channel output)
  • Support Watchdog technology
  • Tamper protection against tampering
  • IP66 protection (use of silicone sealant is required)
  • Ideal for use indoors or out
  • For wall installation
  • Dimensions: 123mm × 86mm × 15mm
  • Net weight: 0.35kg
  • Wide operating temperature: –30°C to +70°C

Data sheet

ASR2101A-D

Basic

ProductType

Card reader

Buzzers

Yes

Casing

PC/acrylic panel

Function

UnlockMode

Card swiping/password

Multiple unlocking modes

CardType

IC cards/ID cards

Performance

Response Time

0.1s

Card Reading Distance

0cm–5cm (0"–1.97")

Port

RS-485

1 channel

Wiegand

1 channel output

alarm

Tamper Alarm

Yes

General

Power Supply

12V 0.5A DC

Protection

IP66 (silicon sealant is needed, see the manual)

power consumption

Standby ≤ 0.9W, working ≤ 1.7W

Product Dimensions

123mm × 86mm × 15mm (4.84" × 3.38" × 0.59")

(L×W×H)

Packaging Dimensions

185mm × 163mm × 71mm (7.28" × 6.41 × 2.80")

(L×W×H, 1 in inner carton)
578 mm × 383 mm × 349 mm (22.76" × 15.08" × 13.74") (L × W × H, carton)

Operating Temperature

–30°C to +70°C (–22°F to +158°F)

Operating Humidity

5%RH–95% (non-condensing)

operating environment

indoors; outdoors

Gross Weight

0.35kg (0.77lb)

Installation

Surface mount

Certifications

THERE IS; FCC

Further details

Lettore per tessere RFID

RFID proximity reader for Mifare IC Cards

Very fast read/response times <0.1s

Tastierino touchscreen Keypad numerico

Touchscreen numeric keypad

Controllo tramite RS485

Communication via RS485 (1 channel) or Wiegand (1 channel out)

Funzione Watchdog

Watchdog function for analyzing device anomalies

Questo prodotto è coperto da garanzia 24 mesi italiana

This product is covered by a 24 month guarantee.
