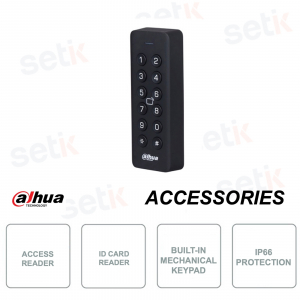

Access control - ID Card reader - Password - Integrated keypad

Access control - ID Card reader - Password - Integrated keypad
-57%

Dahua Access Control ASR2101H-D - Unlock with Card or Password - ID Card reader - Reading distance up to 6cm - Response speed 0.1ms - Keypad with mechanical buttons for entering password - RS485 and Wiegand - Watcchdog functionality - IP66 protection ideal for use indoors and outdoors - Tamper alarm - Buzzer - Light indicator.



Reference: ASR2101H-D

Brand: Dahua

EAN: 6923172586667

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

ACCESS CONTROL - PASSWORD - ID CARD - PASSWORD - INTEGRATED KEYPAD - IP66 - DAHUA TECHNOLOGY - ASR2101H-D


Product details

  • Access Control - Dahua Security - ASR2101H-D
  • Support card/password unlock
  • Integrated keypad with mechanical buttons
  • Compatible with ID Card cards
  • Support RS485 and Wiegand 34 communication (can be set for Wiegand 26 operation)
  • Light indicator
  • Tamper alarm support (Tamper)
  • Watchdog analysis function
  • Fast card read/response times (<0.1s)
  • Card Reading Distance 0cm~6cm
  • Power supply: 12V 0.5A DC
  • Consumption: ≤ 0.48W (standby), ≤ 1.2W (working)
  • Dimensions: 127mm × 46mm × 20mm
  • IP66 protection, for use in indoor or outdoor environments
  • Made in polycarbonate and acrylic
  • Wall installation

Data sheet

ASR2101H-D

System

OSDP Protocol

Yes

ButtonType

Mechanical

Basic

ProductType

Card reader

Buzzers

Yes

Backlights

Yes

Casing material

PC + ABS

Function

UnlockMode

Cards, passwords

CardType

Card ID

Performance

Response Time

0.1s

Card Reading Distance

0cm–6cm (0"–2.36")

Port

RS-485

1

Wiegand

1 channel output

alarm

Tamper Alarm

Yes

General

Power Supply

12VDC, 0.5A

Protection

IP66

power consumption

≤ 0.48W (standby), ≤ 1.2W (working)

Product Dimensions

127mm × 46mm × 20mm (5.00" × 1.81" × 0.79")

Packaging Dimensions

139mm × 73mm × 48mm (5.47" × 2.87" × 1.89")

Operating Temperature

–30 °C to +70 °C (–22 °F to +158 °F)

Operating Humidity

≤ 95% (RH)

operating environment

Outdoors

Gross Weight

104g (0.23lb)

Installation

Surface Mount

Further details

Lettore per tessere RFID

RFID proximity reader for ID CARD cards

Very fast read/response times <0.1s

Reading distance 0-6cm.

Tastierino touchscreen Keypad numerico

Numeric keypad with mechanical buttons for password entry

Controllo tramite RS485

Communication via RS485 or Wiegand 34 (settable on Wiegand 26)

Funzione Watchdog

Watchdog function for analyzing device anomalies

Questo prodotto è coperto da garanzia 24 mesi italiana

This product is covered by a 24 month guarantee.
