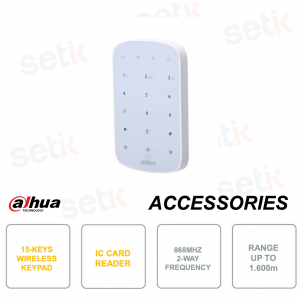

Wireless Keypad - 15 keys - IC Card Reader - 868Mhz

Wireless Keypad - 15 keys - IC Card Reader - 868Mhz
-35%

Access Control - Dahua - ARK30T-W2-868 - IC Card or Password Authentication - Wireless Keypad with 15 buttons - Integrated Buzzer - 4 light indicators - Tamper - 868Mhz bidirectional frequency with 1.600m range in open space - AES128 encryption - 4 AA batteries - For wall mounting - High quality product, in Polycarbonate and ABS - White colour.

Reference: ARK30T-W2-868

Brand: Dahua

EAN: 6923172538697

FIND INSTALLER

€111.02

€170.80 -35%
taxes included
Tax included
  Available
discover the available quantity

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


ACCESS CONTROL - PASSWORD - IC CARD - BIDIRECTIONAL 868MHZ - DAHUA - ARK30T-W2-868

Access control terminal - 15-key wireless keyboard for unlocking with password - Authentication via IC Card - 868Mhz bidirectional communication frequency up to 1.600m in open field without obstacles - For wall mounting - AES128 encryption - Buzzer - Tamper - 4 luminous indicators - Powered by 4 AA batteries - White - In polycarbonate and ABS - High quality product, for use in combination with alarm control units .


Product details

  • Access control terminal - Dahua Security - ARK30T-W2-868
  • Card/password authentication support
  • 15 buttons
  • Compatible with IC Card cards
  • For use with Alarm Hubs
  • Built-in Buzzer
  • Tamper
  • Cloud update
  • Recovery in case of failed update
  • Temperature measurement –15 °C to +65 °C
  • Up to 32 users
  • 868Mhz wireless bidirectional frequency
  • Frequency hopping
  • Reception range up to 1,600m in open space
  • AES128 encryption
  • For wall installation
  • In Polycarbonate and ABS
  • Powered by 4 AA batteries
  • Operating temperature: –10 °C to +55 °C
  • Item net weight: 370g
  • Dimensions: 146.0mm × 82.0mm × 22.6mm
  • Appearance: White color
  • Material: Polycarbonate and ABS

Data sheet

ARK30T-W2-868

Technical Specs

Function

Indicator Light

4 indicators (communication, arm/disarm, fault, and alarm)

Button

15 buttons (0–9, *, #, arm, disarm, and home arm)

Buzzers

1 × built-in buzzer

Arm and Disarm

Password; IC card

Remote Update

Cloud update

Low Battery Detection

Yes

Tamper

Yes

Measuring Range (Temperatures)

–15°C to +65°C (+5°F to +149°F) (indoor)

Measuring Accuracy

1°C (33.8°F)

User Management

32 users

Wireless

Carrier Frequency

868.0MHz–868.6MHz

Communication Mechanism

Two way

Communication Distance

Up to 1,600 m (5,249.34 ft) in an open space

Encryption Mode

AES128

Frequency hopping

Yes

General

Power Supply

4 × AA batteries

Battery Life

3 years (if the device is used to arm and disarm once a day)

power consumption

Max. 2.3W

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F) (indoor)

Operating Humidity

10%–90% (RH)

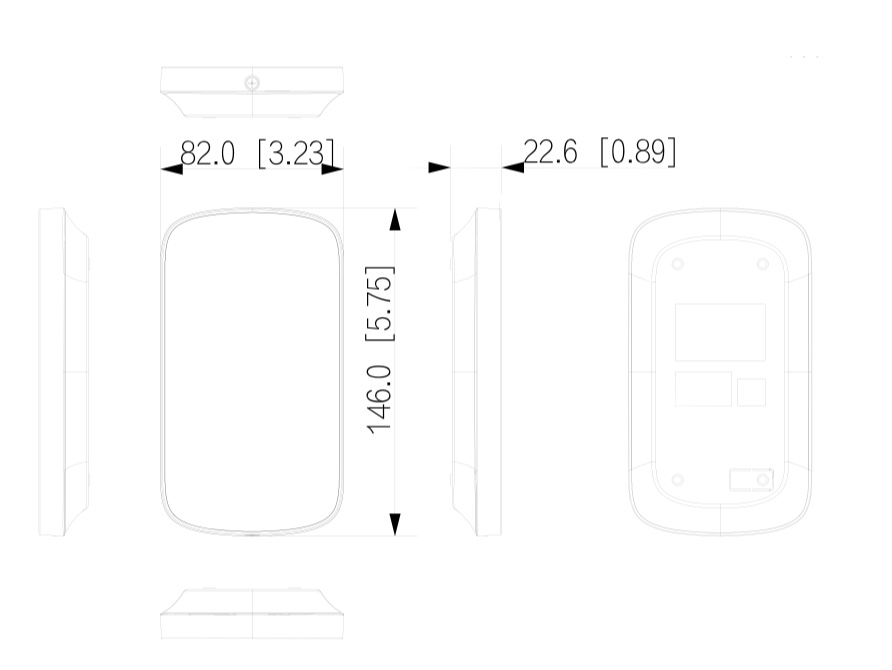

Product Dimensions

146.0mm × 82.0mm × 22.6mm (5.75" × 3.23" × 0.89")

Packaging Dimensions

180.0mm × 104.0mm × 58.0mm (7.07" × 4.09" × 2.28")

Net Weight

240 g (0.529 lb) (with battery) 145 g (0.32 lb) (without battery)

Gross Weight

370 g (0.816 lb)

Installation

Wall mount

Casing material

PC + ABS

Certifications

THERE IS

Further details

Downloads

Leaflets in English.

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
