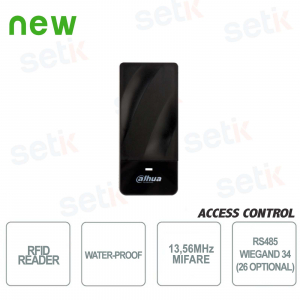

Waterproof RFID Mifare Dahua card reader for outdoor use

Waterproof RFID Mifare Dahua card reader for outdoor use
-57%

Dahua Access Control: RFID card reader 13.56MHz Mifare reader. 8bit processor, RS485 protocol, Wiegand 34 (26 optional), colored LEDs for status control. Waterproof for outdoor, wall installation. Dahua Security ASR1200E

Reference: ASR1200E

Brand: Dahua

EAN: 6939554928291

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

ACCESS CONTROL: RFID CARD READER MIFARE 13.56MHZ - DAHUA

Lettore di prossimità Controllo Accessi Dahua per tessere MIFARE 13.56MHz

DESCRIPTION:
Dahua Security's ASR1200E reader is one of the best proximity readers on the market
This device allows access via MIFARE 13.56MHZ RFID cards , with an action range up to 3-6cm.

Fast reading / response times, equipped with colored LEDs for status indication and buzzer.

Extremely reliable product.

Product details

Lettore di prossimità per tessere RFID Mifare 13.56MHz
  • Waterproof card reader - Dahua Security
  • Access via MIFARE 13.56MHZ RFID cards
  • Communication with RS485 / Wiegand 34 control (26 optional)
  • 8 bit processor
  • Waterproof IP66
  • Fast card reading / response times (<0.1s)
  • Colored LEDs for status indication
  • Alarm buzzer
  • Power supply: 9-15V DC / 100mA
  • Dimensions: 96mm × 43mm × 17mm
  • Wall installation

Data sheet

Model ASR1200E
System
Main processor 8 Bit
Read
Read Format 13.56MHz
Read range 3-6cm (max.)
Reading time <0.1s
Interface
To Controller RS485, Wiegand 34 (26 optional)
General
Beep Tone

Buzzer

Ingress protection

IP66 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)

Power Supply

9-15V DC / 100mA

Operating Temperature

-30 ° C to + 60 ° C

Working Humidity

≤95%

Dimension (W × D × H)

96mm × 43mm × 17mm

Weight

0.1kg

Working Environment

Outdoor

Further details

Lettore per tessere RFID

RFID proximity reader for MIFARE 13.56MHz cards

Very fast reading / response times <0.1s

RFID Reader ASR1200D Dahua

This proximity reader can be installed outdoors ( Waterproof - IP66 protection )

Indicatori Leds Red, Green and Blue LED lights for status indications
Controllo tramite RS485 o Wiegand

Communication via RS485 / Wiegand 34 control (26 optional)

Questo prodotto è coperto da garanzia 24 mesi italiana

This product is covered by a 24 month warranty.

Download

ASR1200E dimensions
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
