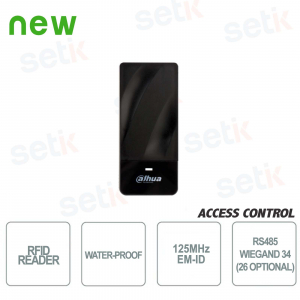

Dahua Access Control: RFID card reader 125MHz EM-ID reader. 8bit processor, RS485 protocol, Wiegand 34 (26 optional), colored LEDs for status indication. Waterproof IP66 for outdoor, wall installation, suitable for outdoor environments. Dahua Security ASR1200E-D
FIND INSTALLER
ACCESS CONTROL: RFID CARD READER EM-ID 125MHZ CARD READER - DAHUA
DESCRIPTION: Fast reading / response times, equipped with colored LEDs for status indication and buzzer. Extremely reliable product. |
Product details
- Waterproof card reader - Dahua Security
- Access via RFID EM-ID 125MHZ cards
- Communication with RS485 / Wiegand 34/26 control
- 8 bit processor
- Waterproof IP66
- Fast card reading / response times (<0.1s)
- Colored LEDs for status indication (red, green and blue)
- Alarm buzzer
- Power supply: 9-15V DC / 100mA
- Dimensions: 96mm × 43mm × 17mm
- Wall installation
- Suitable for outdoor environments
Data sheet
| Model | ASR1200E-D | |
| System | ||
| Main processor | 8 Bit | |
| Read | ||
| Read Format | 125KHz | |
| Read range | 3-6cm (max.) | |
| Reading time | <0.1s | |
| Interface | ||
| To Controller | RS485, Wiegand 34 (26 optional) | |
| General | ||
| Beep Tone | Buzzer | |
| Ingress Protection | IP66 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.) | |
| Power Supply | 9-15V DC / 100mA | |
| Operating Temperature | -30 ° C to + 60 ° C | |
| Working Humidity | ≤95% | |
| Dimension (W × D × H) | 96mm × 43mm × 17mm | |
| Weight | 0.1kg | |
| Working Environment | Outdoor | |
Further details
 | RFID proximity reader for 125MHz EM-ID cards Very fast reading / response times <0.1s |
 | This proximity reader can be installed outdoors ( Waterproof - IP66 protection ) |
 | Red, Green and Blue LED lights for status indications |
 | Communication via RS485 / Wiegand 34 control (26 optional) |
 | This product is covered by a 24 month warranty. |
