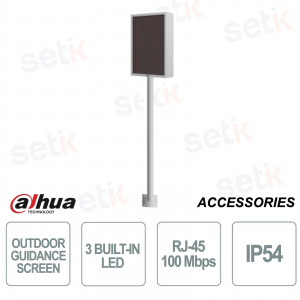

OUTDOOR DRIVING SCREEN - IP54 - DAHUA - ITSXS-1301-12

ITSXS-1301-12 - Outdoor Driving Screen, 3 LED Illuminators with Adjustable Brightness in Red, Green and Yellow - Provides Three-Level Display - Supports Displaying Letters, Numbers, Arrows and Disabled Parking Signs - Supports High Brightness Display and Adjustable Brightness - Control Multiple Screens Simultaneously and Support Partition Display - Change IP and Update Program with Configuration Application - 1 Port Rj-45 100Mbps - IP54

Product details

  • External Driving Screen - Dahua Security
  • Provides a three-level view
  • Supports displaying letters, numbers, arrows and disabled parking signs
  • Support high brightness display and adjustable brightness
  • Control multiple screens simultaneously and support partition viewing
  • Change IP and update program with configuration application
  • 1R1PG Pixel Configuration
  • Dimensions: 362mm × 110mm × 202mm
  • Weight: 3 Kg
  • IP54 protection
  • Operating temperature: –30 °C to +70 °C

Technical data sheet

ITSXS-1301-12

Technical Specification

Basic

Monitor

LED (displays in red, green and yellow)

Dimensions

320 mm × 160 mm (12.60" × 6.30") (L × W)
320 mm × 320 mm (12.60" × 12.60") (L × W)
320 mm × 480 mm (12.60" × 18.90") (L × W)

Display Content

Chinese characters, letters, numbers, arrows, the handicap parking sign, and more

Pixels Configuration

1R1PG

Resolution

512 dots (32 × 16); 1 line; pixel pitch: 10 mm (0.39")
1024 dots (32 × 32); 2 lines; pixel pitch: 10 mm (0.39")
1536 dots (32 × 48); 3 lines; pixel pitch: 10 mm (0.39")

Service Life

100,000 hours

Screen Brightness

6000 cd/m2 (adjustable)

Ports

Network Port

1 × 100Mbps Ethernet port (RJ-45)

General

Power Supply

100V–240V AC

Power Consumption

30W, 60W, 90W

Operating Temperature

–30 °C to +70 °C (–22 °F to +158 °F)

Operating Humidity

10%–90% (non-condensing)

IP Rating

IP54

Product Dimensions

362 mm × 110 mm × 202 mm (14.25" × 4.33" × 7.95") (L × W × H)
362 mm × 110 mm × 362 mm (14.25" × 4.33" × 14.25") (L × W × H)
362 mm × 110 mm × 522 mm (14.25" × 4.33" × 20.55") (L × W × H)

Net Weight

3 kg (6.61 lb), 6 kg (13.23 lb), 9 kg (19.84 lb)

Gross Weight

3.5 kg (7.71 lb), 7 kg (15.43 lb), 10.5 kg (23.15 lb)

Installation

Pole mount; Pole mount bracket

Further details

Power supply 100 V–240 V AC

Questo prodotto è coperto da garanzia 24 mesi italiana

This product is covered by a 24 month warranty.
