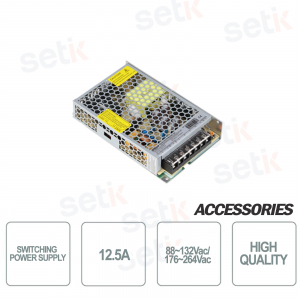

SWITCHING POWER SUPPLY 12.5A - DAHUA

Prodotto marca Dahua Switching power supply - Dahua
Wall power supply - 88 ~ 132Vac / 176 ~ 264Vac - 12.5A output
Quality product

Product details

  • Power supply - Dahua
  • Type: Switching power supply
  • from 88 ~ 132Vac / 176 ~ 264Vac
  • 12.5A output
  • Product excluded from warranty
Alimentatore Switching 12Vac 5A

Data sheet

Input Voltage Range 88 ~ 132Vac / 176 ~ 264Vac
Efficiency 85.0% (@ 230Vac)
Output Voltage 12Vdc (terminal output)
Out Voltage Tolerance ± 5%
Adjustable Range for DC Voltage ± 10% (10.8Vdc ~ 13.2Vdc)
Rated Output Current 12.5A
Output Power 150W
No Load Power Consumption <0.5W
Protection / Environmental
Surge Protected Line to ground: ± 2000V Line to line: ± 1000V
ESD Contact discharge: ± 6000V Air discharge: ± 8000V
Working Temperature -20 ℃ ~ + 50 ℃ (60% output at + 70 ℃) -4 ℉ ~ + 122 ℉ (60% output at + 158 ℉)
Working Humidity <90% RH
Physical Properties
Weight 0.4kg (0.88lb)
Dimension (LxWxH) 159mmx97mmx30mm (6.26 "x3.82" x1.18 ")
Installation Wall mount / Ceiling mount
Color Metallic silver
Safety Standards
Certification CE, FCC

Further details

Prodotto senza garanzia Components which by their nature or due to normal wear, tear or decay, require periodic maintenance or replacement (eg: power supplies, cables, connectors, structural components or anything that is subject to mechanical and electrical stress) are specifically excluded from the Warranty.

Download

Brochure in English
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
