Dahua PFM320D / PFM320D-EN Small easy to install 12V DC 2A power supply, highly reliable. Equipped with status light, it supports an extended temperature range -30 ? ~ + 70 ?, protected from overvoltages, overtemperature, overcurrent, voltage load
FIND INSTALLER
https://www.setik.biz/en/power-source/3554-dahua-pfm320d-Feeder-12v-2a-small-European-attack.html
€8.42
€18.30 -54%
taxes included
discover the available quantity
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
|
ARE YOU LOOKING FOR A VALID ALTERNATIVE TO SETIK BRAND? If you are looking for a power supply with features of equal value, same quality but at a cheaper price , take a look at our power supplies! - ALIM2AEU
|

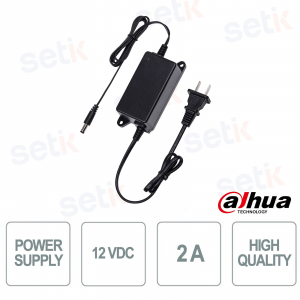

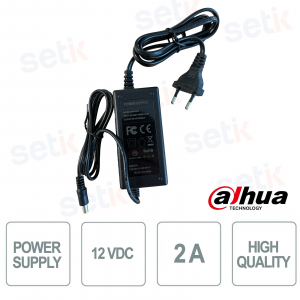

DAHUA PFM320 / PFM320D-EN POWER SUPPLY 12V DC 2A SMALL AND RELIABLE
Dahua feeder Small 12V 2A power supply - European connection - Black color
Protection against: Overvoltage, overtemperature, overcurrent, voltage load
Simple installation - Works in a temperature range of -30 ? ~ + 70 ?
Product details
- Dahua PFM320 / PFM320D-EN 12V 2A power supply
- 12V DC
- 2A
- European 2pin connector
- LED indicator
- Simple installation
- Extended operating temperature: -30 ? ~ + 70 ?
- Size: .55.5mmx?2.1mmx12mm (?0.22 "x?0.08" x0.47 ")
- Protections: Overvoltages / overheating / overcurrent, voltage load
- Weight 170g (0.37lb)
Data sheet
ESD: EN61000-4-2
± 4kV Contact; ± 8kV Air
Surge: EN61000-4-5 "
Combination Wave: Common Mode ± 4KV (12 ohms);
Differential Mode ± 2kV (2 ohms)
| Model | PFM320D |
| Input | 100 ~ 240V, 50 / 60Hz, 0.6A |
| Output | 12V, 2A (+ 7%, -3%) |
| Protection |
Surge protection, over temperature protection, |
| Working Temperature | -30 ? ~ + 70 ? (-22 ? ~ + 158 ?) |
| Working humidity | <95% RH |
| Weight |
170g (0.37lb) |
| Dimension (LxWxH) | 104mmx45mmx33mm (4.09 "x1.77" x1.3 ") |
| Installation mode | Plane installation |
| Color |
Black |
| Input plug |
2-pin Euro plug |
| Outgoing card |
AC wire: 50cm (19.69 "), DC wire: 80cm (31.5") |
| DC plug |
.55.5mmx?2.1mmx12mm (?0.22 "x?0.08" x0.47 " ) |
| Certification |
CE, FCC, UL-VI |
More details
 |
The components which by their nature or normal wear, wear or deterioration require periodic maintenance or replacement (eg: power supplies, cables, connectors, structural components or anything that is subject to mechanical and electrical stress) are specifically excluded from the Warranty. |
