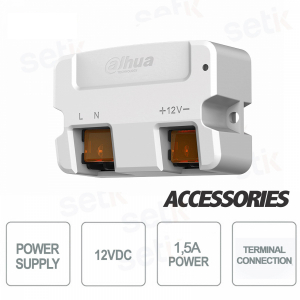

Dahua 12V 1.5A Power Supply

Dahua 12V 1.5A Power Supply
BEST SELLER -56%

Dahua PFM320D-015 Stabilized 12V DC power supply with screw terminals , ideal to be installed inside supports / junction boxes, led indicator, protection against overvoltage, overtemperature, overcurrent. simple installation.

Reference: PFM320D-015

Brand: Dahua

EAN: 8435325425962

FIND INSTALLER

€5.90

€13.42 -56%
taxes included
Tax included
  Available
 Available
discover the available quantity

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


12V DC 1.5A POWER SUPPLY STABILIZED WITH SCREW TERMINALS - DAHUA

Prodotto Marca Dahua Dahua feeder
12V DC - 1.5A - Stabilized - Screw terminals
Protection against: Overvoltage, overcurrent and overtemperature
Wall installation or inside a junction box

Product details

Alimentatore 12V DC 1,5A stabilizzato con morsetti a vite
  • Dahua feeder
  • 12V DC
  • 1.5A
  • stabilized
  • LED indicator
  • Screw clamps
  • Power cable is required whose wires must be connected to L and N.
  • Wall installation or inside a junction box
  • Protections: Overvoltages / Overcurrent / Overtemperature
  • Extended operating temperature of -30 ° C ~ + 70 ° C (total charge efficiency at these temperatures can be up to 100%)
  • Compatible with some junction boxes like PFA12X and brackets for wall installation PFB302S / PFB210W
  • Dimensions: 51.9 x 77.3 x 30 mm
  • Weight 95g

Data sheet

ESD: EN61000-4-2 +/- 6kV Contact; +/- 8kV AirSurge: EN61000-4-5
Combination Wave: Common Mode ± 4KV (12 ohms)
Differential Mode ± 2kV (2 ohms)
Model PFM320D-015

Rated input AC100 ~ 240V, 50 / 60Hz, 0.6A
Output voltage DC12V (+ 7%, -3%)
Output current Max. 1.5A (+ 70 ?)
Protection

Surge protection, over temperature protection, over current, voltage load protection

Working Temperature -30 ? ~ + 70 ? (-22 ? ~ + 158 ?)
Working humidity 5% ~ 95% RH
Weight

95g (0.21lb)

Dimension (LxWxH) 77.3mmx51.9mmx30.0mm (3.4 "x2.04" x1.18 ")
Installation Plane installation, can be installed in junction boxes and wall mount brackets
Color

white

Input plug

2-pin plug (L / N)

Output plug

2-pin plug (+ 12V-)

NW

CE, FCC

Working Temperature

-20 ? ~ + 55 ? (-4 ? ~ + 131 ?)

Storage Temperature

40 ? ~ + 70 ? (-40 ? ~ + 158 ?)

Certification

0 ~ 95%

More details

Prodotto senza garanzia The components which by their nature or normal wear, wear or deterioration require periodic maintenance or replacement (eg: power supplies, cables, connectors, structural components or anything that is subject to mechanical and electrical stress) are specifically excluded from the Warranty.

Download

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
