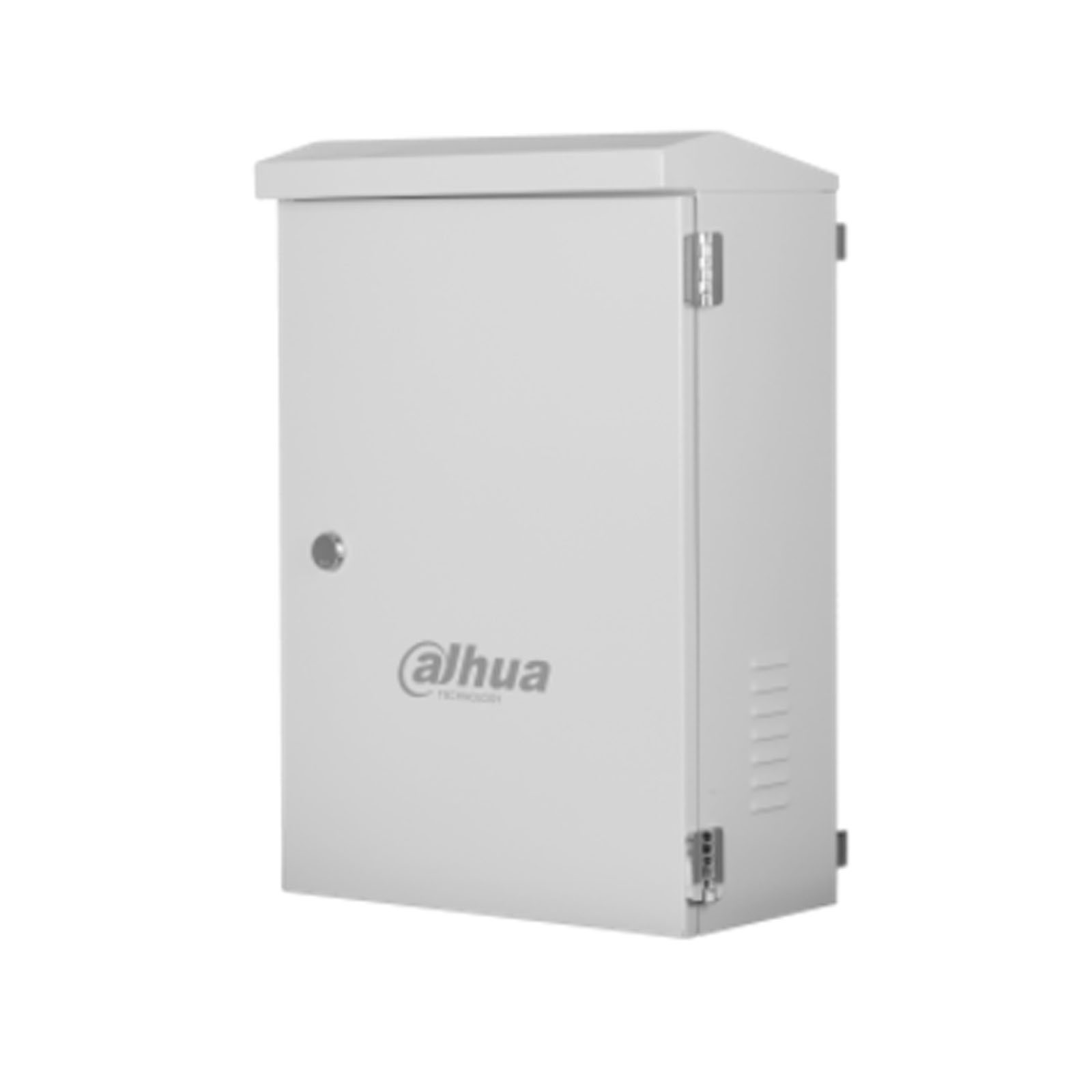

PFM377 - Outdoor pole mounted distribution box. Material SUS201 and SGCC plate thickness 1.2mm. Dimensions 600mm x 400mm x 226mm. Dahua
OUTDOOR DISTRIBUTION BOX - POLE MOUNTING - IP54 - DAHUA

Pole mounting. Material SUS201 and SGCC plate thickness 1.2mm. Dimensions 600mm x 400mm x 226mm
Product details
- Outdoor Distribution Box - Dahua
- Pole mounting
- Case material SUS201 and SGCC
- Color: RAL7035
- Dimensions: 600mm x 400mm x 226mm
- Weight: 14 kg
- Product excluded from warranty

Technical data sheet
Model | PFM377 |
Structural parameters | |

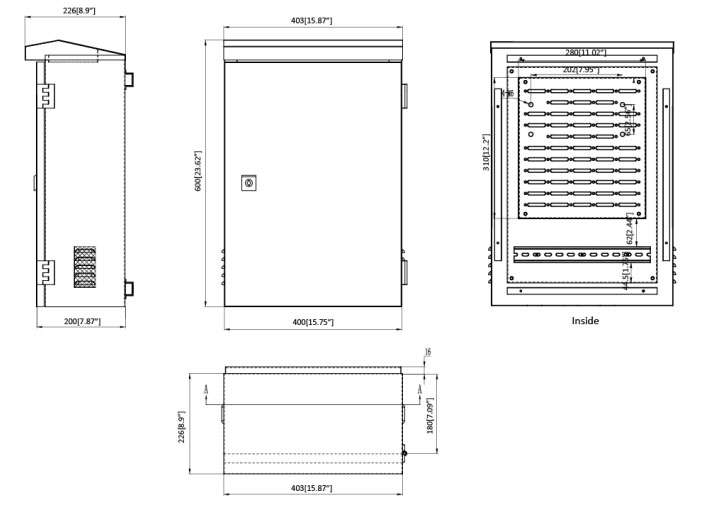

Box size | 600mmx400mmx226mm(23.62”x15.75”x8.9”) |
Installation diameter | Pole mount, Ø180mm~Ø300mm(Ø7.09”~Ø11.81”) |
Material case | SUS201+spray |
Mounting plate inside | SGCC |
Plate thickness | 1.2mm(0.05”) |
Degree of protection | IP54 |
Anti-theft lock | MS401-A |
Weight | 14kg (30.86lb) |
Color | RAL7035 |
Working temperature | -35℃~+55℃(-31℉~131℉) |
Further details
![]() |
Components which by their nature or due to normal wear and tear or decay, require periodic maintenance or replacement (e.g. power supplies, cables, connectors, structural components or anything that is subject to mechanical and electrical stress) are specifically excluded from the Warranty. |
