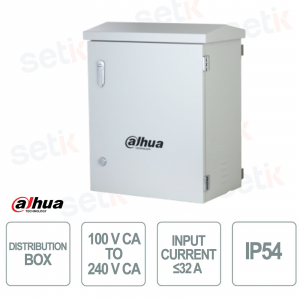

DISTRIBUTION BOX - VOLTAGE 100–240 V AC - IP54 - DAHUA
Distribution Box - Dahua
Wide input voltage range from 100VAC to 240VAC , input current ≤32A. Built-in IP54 lightning surge protection protects against lightning strikes, Automatic heat dissipation with a fan that controls internal temperature. Standard 35mm DIN rail and partition panels simplify installation.
Wide input voltage range from 100VAC to 240VAC , input current ≤32A. Built-in IP54 lightning surge protection protects against lightning strikes, Automatic heat dissipation with a fan that controls internal temperature. Standard 35mm DIN rail and partition panels simplify installation.
Product details
- Distribution Box - Dahua
- Input voltage 100V AC to 240V AC
- Input current ≤32A
- DIN Rail: Width: 35mm (1.38")
- Material: SPCC, thickness: 1.2mm (0.05")
- Color: RAL7035 , light grey
- Dimensions: 590mm × 480mm × 327mm
- Weight: 23.5 kg
- Product excluded from warranty
Technical data sheet
| Model | PFC102F |
| Function | |
| Input Voltage | 100–240 VAC |
| Input Current | ≤32A |
| Surge Protector | Max discharging current: 40 kA Voltage protection level: < 1.8 kV |
| Air Circuit Breaker (ACB) | Main power switch: 1 × 100–240 VAC, 32 A Sub power switches: 2 × 100–240 VAC, 16 A |
| Fan | Yes, with a temperature control module: 40 °C ± 5 °C (104 °F± 41 °F), 100–240 VAC |
| Socket | 1, European standard |
| DIN-Rail | Width: 35mm (1.38") |
| Fiber Optic Splice Tray | Yes |
| Structure | |
| Material | SPCC, thickness: 1.2 mm (0.05") |
| Color | RAL7035, light gray |
| Product Dimensions | 590 mm × 480 mm × 327 mm (23.23" × 18.90" × 12.87") (L × W × H) |
| Transport Package Dimensions | 721 mm × 590 mm × 450 mm (28.39" × 23.23" × 17.72") (L × W × H) |
| Packaging Method | One package for each device |
| Installation |
1. Bolt-hoop installation, pole diameter: 130 mm–240 mm (5.12"–9.45") |
| Pole Diameter | 130mm–240mm (5.12"–9.45") |
| Cable Hole | 1, at the bottom; diameter: 80mm (3.15") |
| Venetian Blind | Yes |
| Net Weight | 23.5 kg (51.81 lb) |
| Gross Weight | 26.5 kg (58.42 lb) |
| Accessories | to. 4 × M10 × 170 stainless steel hex bolts b. 8 × M10 stainless steel hex nuts c. 4 × M10 stainless steel spring washers d. 8 × M10 stainless steel flat washers And. 4 × M12 × 30 stainless steel hex bolts f. 8 × M12 stainless steel hex nuts g. 4 × M12 stainless steel spring washers h. 8 × M12 stainless steel flat washers i. 2 × hold hoop j. 1 × legal and regulatory information k. 1 × user's manual |
| Protection | |
| Protection | IP54 |
| Anti-theft | Yes |
| Environment | |
| Operating Temperature | –35°C to +55°C (–31 °F to +131 °F) |
| Operating Humidity | <95% (RH) |
| Storage Temperature | –40°C to +60°C (–40 °F to +140 °F) |
| Storage Humidity | <95% (RH) |
| Certifications | |
| Certification | CE/UKCA: EMC: EN61000-6-3:2021; EN61000-6-1:2019 LVD: EN60204-1:2018 |
Further details
 |
Components which by their nature or due to normal wear and tear or decay, require periodic maintenance or replacement (e.g. power supplies, cables, connectors, structural components or anything that is subject to mechanical and electrical stress) are specifically excluded from the Warranty. |
