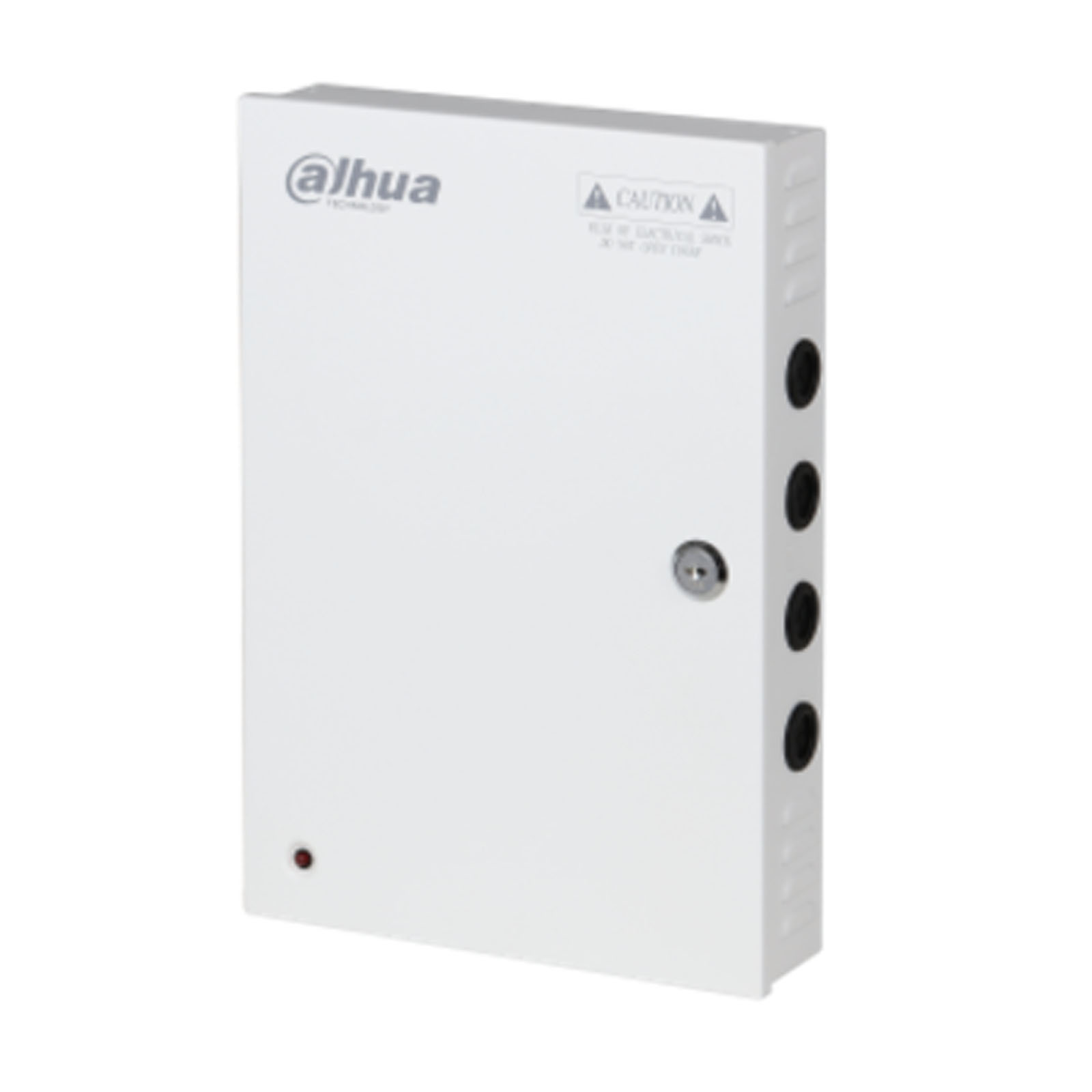

9 CHANNEL DISTRIBUTION POWER BOX - 10A AND 120W OUTPUT - DAHUA
9-Channel Terminal Block Power Distribution Box - Dahua
Output 10A and 120W, 9 outputs voltage 12VDC (-3%~+7%), Input AC90~264V, 9 spare fuses, max. per output 3A. No-load power consumption <0.21W, With overload protection, overcurrent protection, overvoltage protection, anti-static and anti-interference ability
Output 10A and 120W, 9 outputs voltage 12VDC (-3%~+7%), Input AC90~264V, 9 spare fuses, max. per output 3A. No-load power consumption <0.21W, With overload protection, overcurrent protection, overvoltage protection, anti-static and anti-interference ability
Product details
- 9-Channel Terminal Block Power Distribution Box - Dahua
- 10A and 120W output
- Voltage 9 terminal outputs 12VDC (-3%~+7%)
- Efficiency: 87%
- No-load power consumption <0.21W
- Input voltage range: AC90~264V
- Output current 3A with 9 fuses
- Product excluded from warranty
Technical data sheet
| Model | PFM342-9CH |
| Electrical Specification | |
| Input Voltage Range | AC90~264V |
| Outputs | 9 x 12VDC (-3%~+7%) outputs |
| Max. output | 10A, 120W |
| Output Protection | 9 replacement fuses, max. for 3A output |
| Efficiency | 87% |
| no load power consumption | <0.21W |
| Internal ON/OFF Power Switch | Yes |
| Individual LED Output Indicator | Yes |
| Protection/Environmental | |
| Surge Protected | Line to ground: 4000V Line to line: 2000V |
| ESD | Contact discharge: 6000V Air discharge: 8000V |
| Working temperature | -20℃~+45℃(-4℉~+113℉) |
| Working humidity | <90%RH |
| Physical Properties | |
| Weight | 2.47kg(5.45lb) |

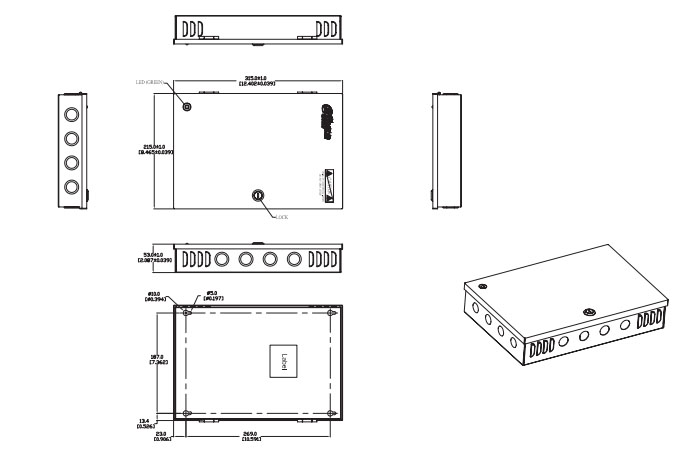

| Dimensions(LxWxH) | 315mmx215mmx53mm (12.4”x8.46”x2.09”) |
| Installation | Wall mount |
| Color | White |
| Safety Standards | |
| Certification | CE(EN55032, EN55020) FCC(FCC Part 15 Class B, ISED ICES-003 Issue 6) |
Further details
 |
Components which by their nature or due to normal wear and tear or decay, require periodic maintenance or replacement (e.g. power supplies, cables, connectors, structural components or anything that is subject to mechanical and electrical stress) are specifically excluded from the Warranty. |
