PFM341-9CH - 9-Channel Terminal Block Distribution Power Box 5A Output, 9-Output Voltage 12VDC (-3%~+7%), AC90~264V Input, 9 Spare Fuses, Max. per Output 2.5A. No-load Power Consumption <0.5W, With Overload Protection, Overcurrent Protection, Overvoltage Protection, Anti-static and Anti-interference Capability. Dahua
FIND INSTALLER
https://www.setik.biz/en/power-source/11043-dahua-pfm341-9ch-9-channel-power-distribution-box-dc12v5a-dahua.html
€48.26
€112.24 -57%
taxes included
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!

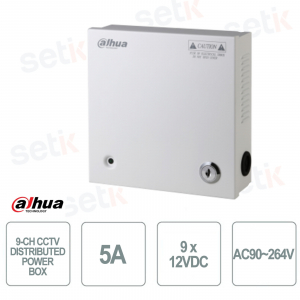

9 CHANNEL DISTRIBUTION POWER BOX - 5A OUTPUT - DAHUA
9-Channel Terminal Block Power Distribution Box - Dahua
Output 5A, 9 outputs voltage 12VDC (-3%~+7%), Input AC90~264V, 9 spare fuses, max. per output 2.5A. No-load power consumption <0.5W, With overload protection, overcurrent protection, overvoltage protection, anti-static and anti-interference ability
Output 5A, 9 outputs voltage 12VDC (-3%~+7%), Input AC90~264V, 9 spare fuses, max. per output 2.5A. No-load power consumption <0.5W, With overload protection, overcurrent protection, overvoltage protection, anti-static and anti-interference ability
Product details
- 9-Channel Terminal Block Power Distribution Box - Dahua
- 5A output
- Voltage 9 terminal outputs 12VDC (-3%~+7%)
- Efficiency: 84%
- Input voltage range: AC90~264V
- Output current 2.5A with 9 fuses
- Product excluded from warranty
Technical data sheet
| Model | PFM341-9CH |
| Electrical Specification | |
| Input Voltage Range | AC90~264V |
| Outputs | 9 x 12VDC (-3%~+7%) outputs |
| Max. output | 5 A |
| Output Protection | 9 replacement fuses, max. for 2.5A output |
| Efficiency | 84% |
| no load power consumption | <0.5W |
| Internal ON/OFF Power Switch | Yes |
| Individual LED Output Indicator | Yes |
| Protection/Environmental | |
| Surge Protected | Line to ground: 4000V Line to line: 2000V |
| ESD | Contact discharge: 6000V Air discharge: 8000V |
| Working temperature | -20℃~+45℃(-4℉~+113℉) |
| Working humidity | <90%RH |
| Physical Properties | |
| Weight | 0.9kg(1.98lb) |
| Dimensions(LxWxH) | 165mmx165mmx50mm(6.5”x6.5”x1.97”) |
| Installation | Wall mount |
| Color | White |
| Safety Standards | |
| Certification | CE(EN55032, EN55020) FCC(FCC Part 15 Class B, ISED ICES-003 Issue 6) |
Further details
 |
Components which by their nature or due to normal wear and tear or decay, require periodic maintenance or replacement (e.g. power supplies, cables, connectors, structural components or anything that is subject to mechanical and electrical stress) are specifically excluded from the Warranty. |
Download
Brochure in English
